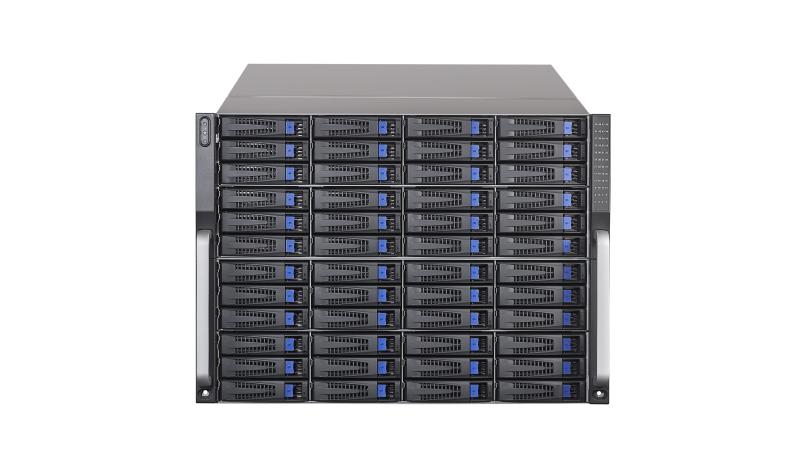

DS-A83048S-ICVS

48-slot High-performance Cluster Storage

  • Next generation hardware platform featuring high level new controller design (48 HDD slot, single controller with two 6-core processors, 64 GB cache)
  • Streaming data management structure for high system performance
  • Storage virtualization/distribution/scale-out/load balance
  • High speed data rebuild at up to 2 TB/ hour
  • able to tolerate up to 4 device failure without data loss
  • Ultra-fault-tolerant IRAID (based on erasure code) supporting data protection among devices
  • User-friendly operation and maintenance
  • specification

    • Maintenance and Management
    • Management methodGUI based on web, serial port CLI, platform
    • Alarm methodAudio, indicator, GUI
    • Network
    • ProtocolRTSP, ONVIF, PSIA, etc.
    • Controller
    • Processor2 Xeon 64-bit 6-core processors
    • Cache64 GB standard, extendable to 384 GB
    • interfaces
    • SAS extension interface3, 12 Gbps SAS 3.0 interface
    • Data network interface6, 1000M Ethernet interface (8 × GbE or 4 × 10GbE is extendable)
    • Management network interface1, 1000M Ethernet interface
    • COM interface2 (1 for RS-232, 1 for RS-485)
    • USB interface3 (2 × USB 3.0, 1 × USB 2.0)
    • Performance
    • Standard cluster (2 Mbps)430-ch
    • Standard cluster (4 Mbps)220-ch
    • Micro cluster (2 Mbps)420-ch
    • Micro cluster (4 Mbps)200-ch
    • Video performance600
    • Picture performance800
    • Storage Management
    • Cache protectionSupports customizing BBU in case of unexpected power failure to protect the cache data from being lost.
    • Disk managementDisk detection pre-alarm and repair
    • Recording Management
    • CVADevice access, recording schedule, and stream forwarding services
    • CVSData storage, video/picture access, storage space, and data R/W services
    • HDD
    • InterfaceSAS/SATA
    • Capacity1TB, 2TB, 3TB, 4TB, 6TB,8TB,10TB,12TB,14TB,16TB
    • HDD slot48
    • RAIDI RAID: N + M: K, N + M ≤ 16, M ≥ K, N∈[1, 15], M∈[1, 4], K∈[1, 4]
    • HDD Model

      Hikvision,HK7216AH,16T;

      Hikvision,HK7210AH,10T;

      Hikvision,HK728TAH,8T;

      Hikvision,HK726TAH,6T;

      Hikvision,HK724TAH,4T;

      Seagate,ST16000NM000J,16T;

      Seagate,ST10000NM017B,10T;

      Seagate,ST8000NM017B,8T;

      Seagate,ST6000NM019B,6T;

      Seagate,ST4000NM000B,4T;

    • General
    • Power supplyRedundant 2 + 1, ≤ 1600 W
    • Working temperatureWorking: +5 °C to +35 °C (+41 °F to +95 °F)
    • Working humidityStorage: -20 °C to +70 °C (-4 °F to +158 °F)
    • Dimensions (W × D × H)486 x 344 x 750 mm (19.1 x 13.5 x 29.5 in)
    • Weight (without hard disk)≤ 93 kg (205 lb)
    • Power Consumption(with HDD)≤ 763 W
