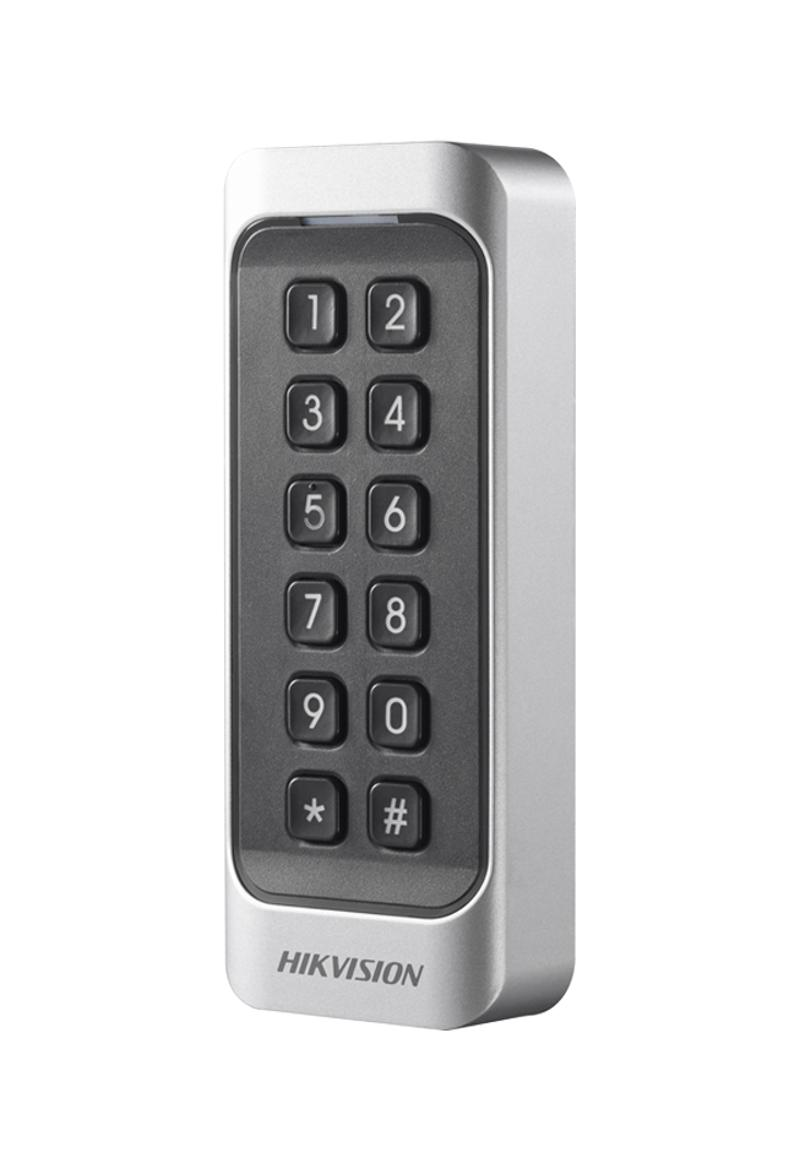

DS-K1107AEK

Card Reader

  • Equipped with the 32-bit high-speed processor
  • RS-485 and Wiegand (W26/W34) protocol, and OSDP protocol
  • Build-in EM card reading module (Frequency:125KHz).
  • Supports tampering alarm
  • Built-in buzzer for identifying the reading status
  • Online upgrade function
  • Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
  • specification

    • System
    • Processor32-bit
    • Interface
    • TAMPERSupport
    • RS-485Support
    • WiegandSupport (set via DIP switch)
    • Authentication
    • Card reading frequency125 KHz
    • Card reading distance≤50 mm (≤1.97″)
    • General
    • IndicatorPower indicator, status indicator
    • Power supply12 VDC
    • Power consumption≤2 W
    • Working temperature-20 °C to 65 °C (-4 °F to 149 °F)
    • Working humidity10% to 90% (Non Condensing)
    • Protective levelIP65
    • Dimensions115 mm × 44 mm × 22 mm (4.53” × 1.73” × 0.87”)
    • InstallationWall Mounting with Screws; Do Not Support Gang Box
    • KeypadKeypad with 12 Keys (0~9, *, #)
    • BuzzerSupport
