DS-K1A802EF

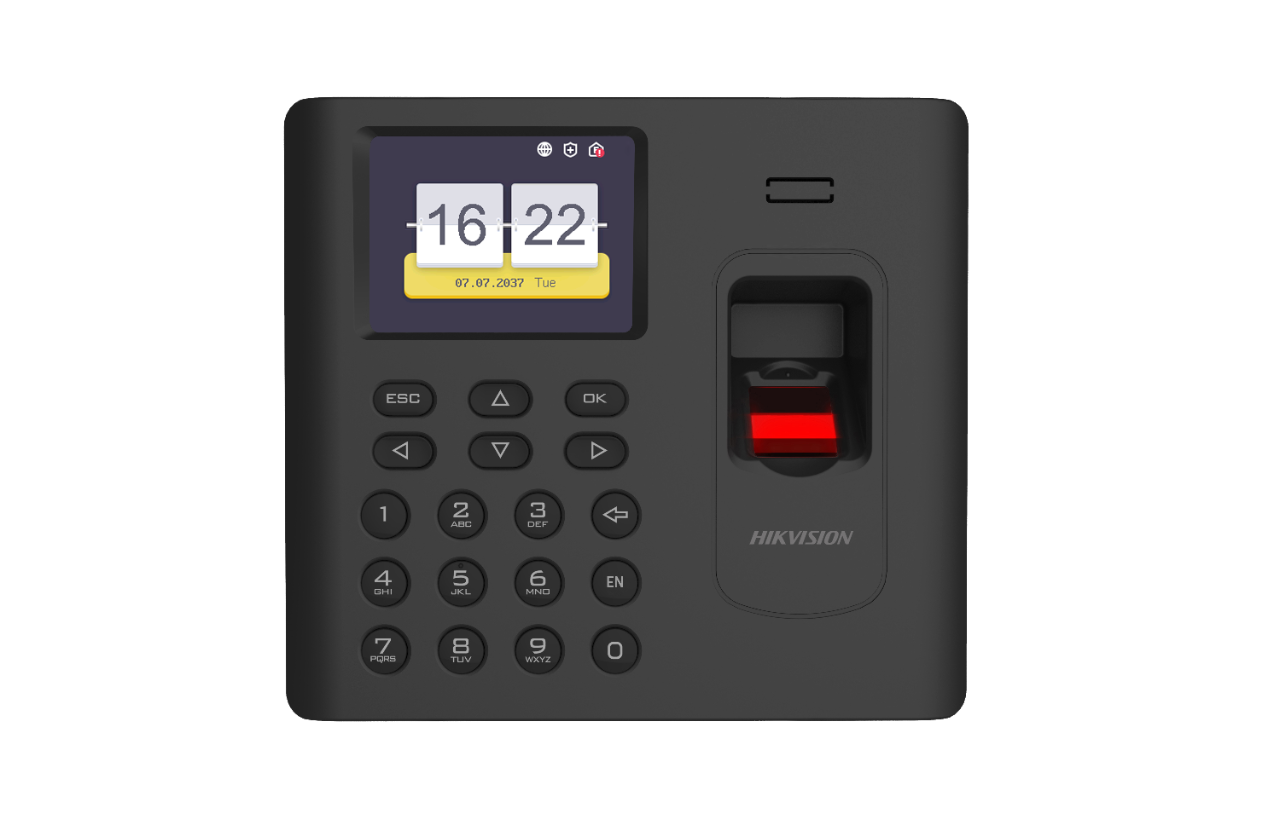

K1A802 Pro Series Fingerprint Time Attendance Terminal

Fingerprint Time Attandence Terminal

LCD display screen

3,000 fingerprints, 3,000 cards and 100,000 events storage

Communication via TCP/TP and Wi-Fi

Back-up battery supported(optional)

EHome for public network communication

Multiple time attendance status

European power supply adaptor included (please mark for other standards when you order)

specification

general
StorageUp to 3,000 Valid Cards;
Operation SystemLinux
iVMS-4200Support
Fingerprint CapacityUp to 3000 Fingerprints; Up to 10 Fingerprints for Each Person
Card Reading Response Duration< 1 s
Fingerprint Authentication Duration< 1 s
Fingerprint Comparing Mode1:1 and 1:N, N=3000
FAR (False Accept Rate)≤0.001%
FRR (False Rejection Rate)≤0.01%
Fingerprint RecognizerOptical Fingerprint Recognizer Module
Card Reading ModeSwiping Card is Not Available
Card Reading Distance0 to 5cm
Transmission RateLAN: 10/100 Mbps Self-adaptive
Wi-FiSupport
USB InterfaceUSB2.0, Type A
LCD Screen2.8-inch 320 x 240 LCD-TFT Display Screen
Key BoardPhysical Keys (No Back Light)
Audio1 Buzzer, 1 Loudspeaker
Power Supply12 VDC/1 A
Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
Working Humidity10% to 90% (No Condensing)
Application SituationIndoor
Appearance ColorBlack (Included), Rose Gold (Optional), Silver (Optional), White (Optional)
Dimension (L × W × H)140 mm × 155 mm × 30 mm (5.51″ × 6.01″ × 1.18″)
InstallationSurface Mounting, Metal Door Mounting, Desk Stand
