DS-K1T804AEF

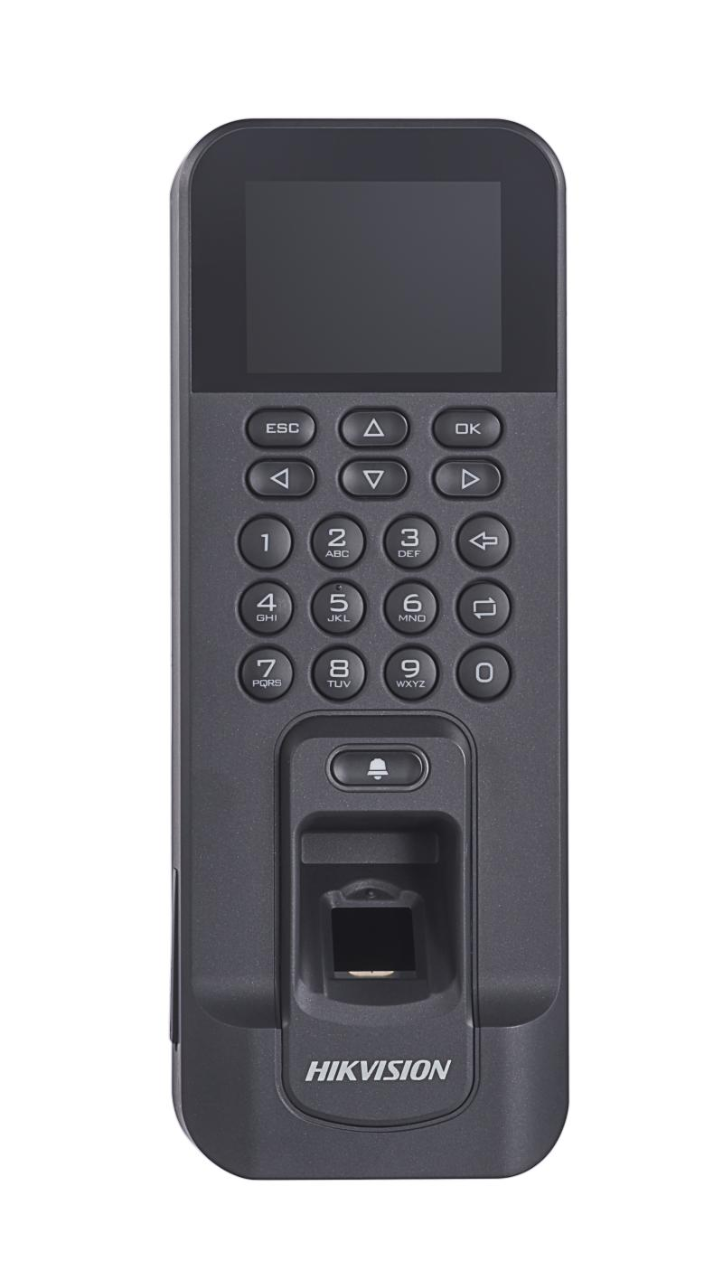

K1T804A Pro Series Fingerprint Terminal

  • Integrated management of access control and the time and attendance functions
  • 3,000 fingerprints, 3,000 cards and 100,000 events storage
  • Built-in card reader for EM card
  • Communication via TCP/TP and Wi-Fi
  • RS-485, wiegand interface
  • Alarm input and output interface
  • ISUP5.0, ISAPI
  • specification

    • Display
    • Screen size2.4-inch
    • Resolution320 × 240
    • TypeLCD-TFT display screen
    • Audio
    • Audio output1 loudspeaker, 1 buzzer
    • Network
    • Wired networkTCP/IP, 10/100Mbps, self-adaptive
    • Wi-FiSupport
    • Interface
    • Network interface1
    • RS-4851
    • Wiegand1
    • Lock control1
    • Exit button1
    • Door contact input1
    • Alarm input1
    • Alarm output1
    • TAMPER1
    • USB1
    • Capacity
    • Card capacity3000
    • Fingerprint capacity3000
    • Event capacity100,000
    • Authentication
    • Card typeEM card
    • Card reading distance0 to 5 cm
    • Card reading duration< 1 s
    • Fingerprint moduleOptical fingerprint module
    • Fingerprint comparing mode1:1 and 1:N
    • Fingerprint recognition duration< 1 s
    • General
    • IndicatorPower/status (red/green)
    • Power supply12 VDC/1 A
    • Working temperature-10 °C to +55 °C (14 °F to +131 °F)
    • Working humidity10% to 90% (no condensing)
    • ColorBlack (included), gold (optional), silver (optional), white (optional)
    • Dimensions205 mm × 76.5 mm × 37 mm (8.07″ × 3.01″ × 1.46″)
    • InstallationSurface mounting
    • LanguageEnglish, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian
