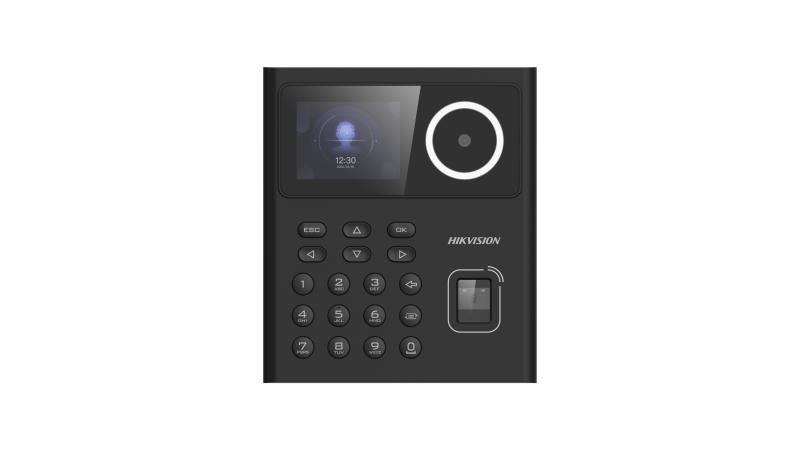

DS-K1T320MFWX

Value Series Face Access Terminal

  • 2.4-inch LCD screen, 2 MP lens
  • Multiple authentication methods, including face, fingerprint, card, and PIN, etc.
  • Supports Mifare card
  • Max. 500 faces, 1,000 cards, 1,000 fingerprints and 100,000 events
  • Face recognition duration < 0.2 s/User
  • Supports ISAPI and ISUP 5.0 protocols
  • Configuration via the web client
  • specification

    • System
    • Operating systemLinux
    • Display
    • Screen size2.4 inch
    • TypeDisplay screen
    • Resolution320 × 240
    • Video
    • Lens1
    • Video compression standardPAL (Default) and NTSC
    • Resolution2 MP (video stream: 720P)
    • FOVHFOV = 43°; VFOV = 25°
    • Audio
    • Audio outputBuilt-in buzzer
    • Network
    • Wired network10 M/100 M self-adaptive
    • Wi-FiSupport
    • Interface
    • Network interface1
    • Lock control1
    • Exit button1
    • Door contact input1
    • TAMPER1
    • USB1
    • Capacity
    • Face capacity500
    • Fingerprint capacity1,000
    • Card capacity1,000
    • Event capacity100,000
    • Authentication
    • Face recognition distance0.3 m ~ 1.5 m
    • Face recognition duration< 0.2 s
    • Card typeM1 card
    • Card reading distance0 ~ 5 cm
    • Function
    • Face anti-spoofingSupport
    • General
    • Built-in access controllerYes
    • Supplement lightWhite light
    • Power supplyDC 12 V
    • Power consumption≤ 6 W
    • Working temperature-10 ℃ ~ 55 ℃ (14 °F ~ 131 °F)
    • Working humidity0% ~ 90%
    • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese
