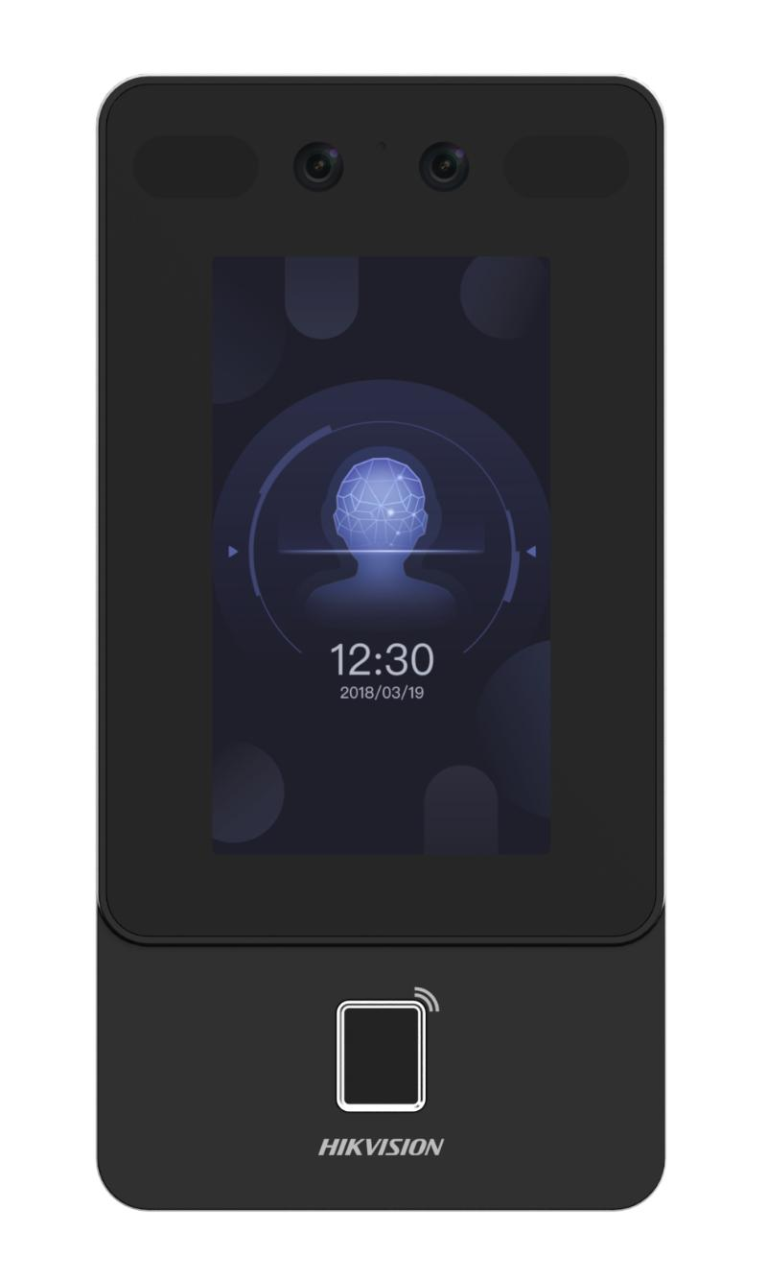

DS-K1T342EFWX

Value Series Face Access Terminal

  • Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
  • Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in EM card reading module
  • Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
  • Supports ISAPI, ISUP5.0
  • Configuration via the web client
  • Face Recognition Distance: 0.3 m to 1.5 m
  • Duration < 0.2 s/User
  • Accuracy rate ≥ 99%
  • Supports mask recognition
  • specification

    • System
    • Operation systemLinux
    • Display
    • Dimensions4.3-inch
    • Resolution272 × 480
    • TypeLCD
    • Operation methodCapacitive touch screen
    • Video
    • Pixel2 MP
    • Lens× 2
    • Video standardPAL (Default) and NTSC
    • Network
    • Wired network10 M/100 M self-adaptive
    • Wi-FiSupport
    • Interface
    • Network interface1
    • RS-4851
    • Wiegand1
    • Lock output1
    • Exit button1
    • Door contact input1
    • IO input
    • IO output
    • TAMPER1
    • USB1
    • Capacity
    • Card capacity3,000
    • Face capacity1,500
    • Fingerprint capacity3,000
    • Event capacity150,000
    • Authentication
    • Card typeEM card
    • Card reading frequency125 KHz
    • Face recognition duration< 0.2 s
    • Face recognition accuracy rate> 99%
    • Face recognition distance0.3 to 1.5 m
    • Fingerprint recognition duration<1 s
    • Function
    • Face anti-spoofingSupport
    • Audio promptSupport
    • Time synchronizationSupport
    • General
    • Power supply12 VDC/1 A (power adapter included)
    • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
    • Working humidity0 to 90% (No condensing)
    • Dimensions91.3 mm × 181.3 mm × 24.5 mm (3.59″ × 7.14″ × 0.96″)
    • InstallationWall Mounting
    • Protective levelIP65
    • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean
    • Weight

      Gross weight: 0.93 kg (2.05 lbs)

      Net weight: 0.36 kg (0.79 lbs)
