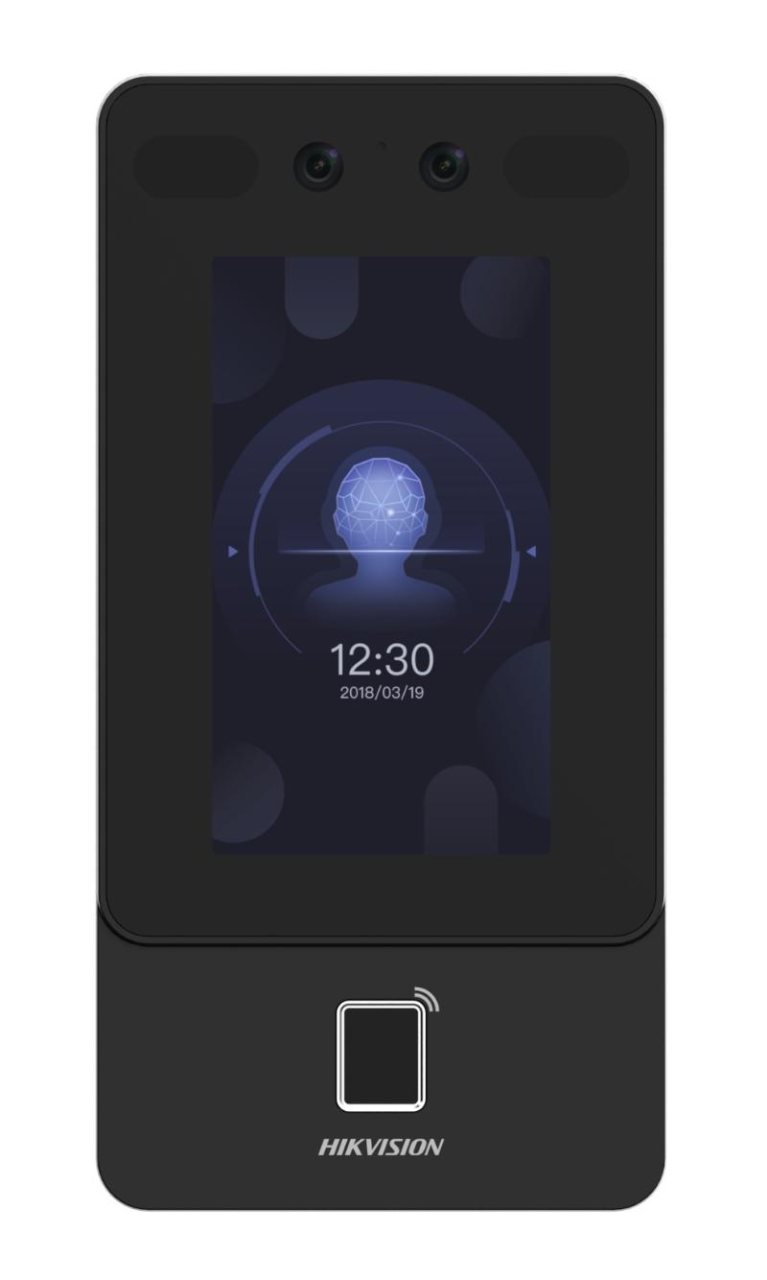

DS-K1T342MFX

Value Series Face Access Terminal

Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards

Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in Mifare card reading module

Two-way audio with client software, indoor station, and main station; Supports TCP/IP

Supports ISAPI, ISUP5.0

Configuration via the web client

Face Recognition Distance: 0.3 m to 1.5 m

Duration ＜ 0.2 s/User

Accuracy rate ≥ 99%

Supports mask recognition

specification

System
Operation systemLinux

Display
Dimensions4.3-inch
Resolution272 × 480
TypeLCD
Operation methodCapacitive touch screen

Video
Pixel2 MP
Lens× 2
Video standardPAL (Default) and NTSC

Network
Wired network10 M/100 M self-adaptive
Wi-FiNot support

Interface
Network interface1
RS-4851
Wiegand1
Lock output1
Exit button1
Door contact input1
IO input–
IO output–
TAMPER1
USB1

Capacity
Card capacity3,000
Face capacity1,500
Fingerprint capacity3,000
Event capacity150,000

Authentication
Card typeM1 card
Card reading frequency13.56 MHz
Face recognition duration＜ 0.2 s
Face recognition accuracy rate＞99%
Face recognition distance0.3 to 1.5 m
Fingerprint recognition duration＜1 s

Function
Face anti-spoofingSupport
Audio promptSupport
Time synchronizationSupport

General
Power supply12 VDC/1 A (power adapter included)
Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
Working humidity0 to 90% (No condensing)
Dimensions91.3 mm × 181.3 mm × 24.5 mm (3.59″ × 7.14″ × 0.96″)
InstallationWall Mounting
Protective levelIP65
LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean
Weight
Gross weight: 0.93 kg (2.05 lbs)

Net weight: 0.36 kg (0.79 lbs)
