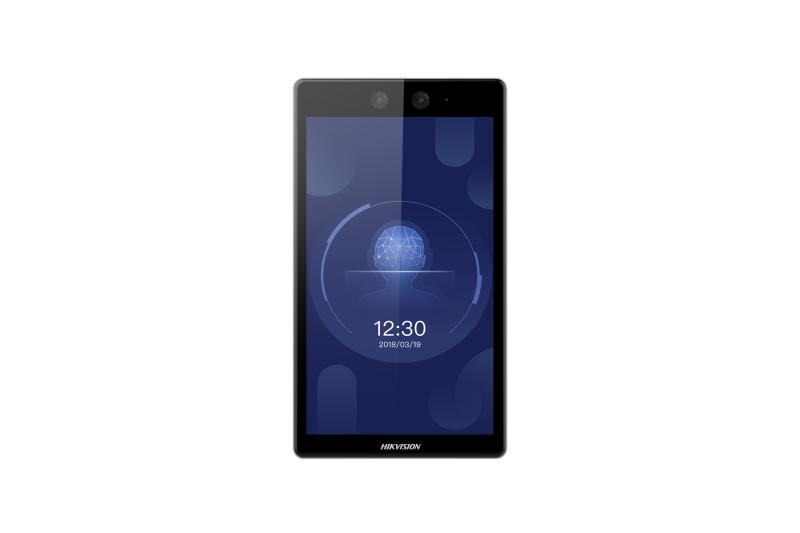

DS-K1T672E

Ultra Series Wall-Mounted Face Access Terminal

Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed

Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid

7-inch touch screen with bezel-less design

Presents card on the screen to authenticate card permission

Face recognition. Distance: 0.3 m to 3 m, Duration ＜ 0.2 s/User, Accuracy rate ≥ 99%

50,000 face capacity, 50,000 card capacity（EM card）, and 50,000 event capacity

Supports wiegand protocol and RS-485 protocol

Two-way audio with indoor station and main station

Supports ISAPI and ISUP5.0 protocol

Configuration via the web client

specification

Display
Dimensions7-inch
TypeLCD
Operation methodCapacitive touch screen

Video
FOV HFOV= 75.5°；VFOV=41.5°；DFOV=87°
Pixel2 MP
Lens
× 2

Visible light lens × 1，850nm Infrared lens × 1

Audio
Tone qualityNoise Suppression and Echo Cancellation

Network
Wired network10 M/100 M/1000 M self-adaptive
Communication protocolISUP5.0; SDK; RTSP; ISAPI; Hik-Connect; HikCentral Pro OpenAPI; Hik-ProConnect OpenAPI

Interface
Network interface1
Lock output1
Exit button1
Door contact input1
Alarm input2
Alarm output1
Power interface2-pin

Capacity
Card capacity50,000
Face capacity50,000
Event capacity50,000

Authentication
Card typeEM card
Card reading frequency125KHz
Face recognition duration＜ 0.2 s
Face recognition accuracy rate≥99%
Face recognition distance0.3 to 3 m

Function
Face anti-spoofingSupport
Audio promptSupport
Time synchronizationSupport

General
buttonTouch screen
Power supply method12 VDC/2 A
Working temperature-10 °C to 50 °C (-58 °F to 122 °F)
Working humidity0 to 90% (No condensing)
Dimensions185.8 × 103.36 × 20.7mm (7.31” × 4.07” × 0.81” )
Application environmentIndoor
InstallationSurface mounting
LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
PlatformHik-ProConnect and HikCentral Professional
