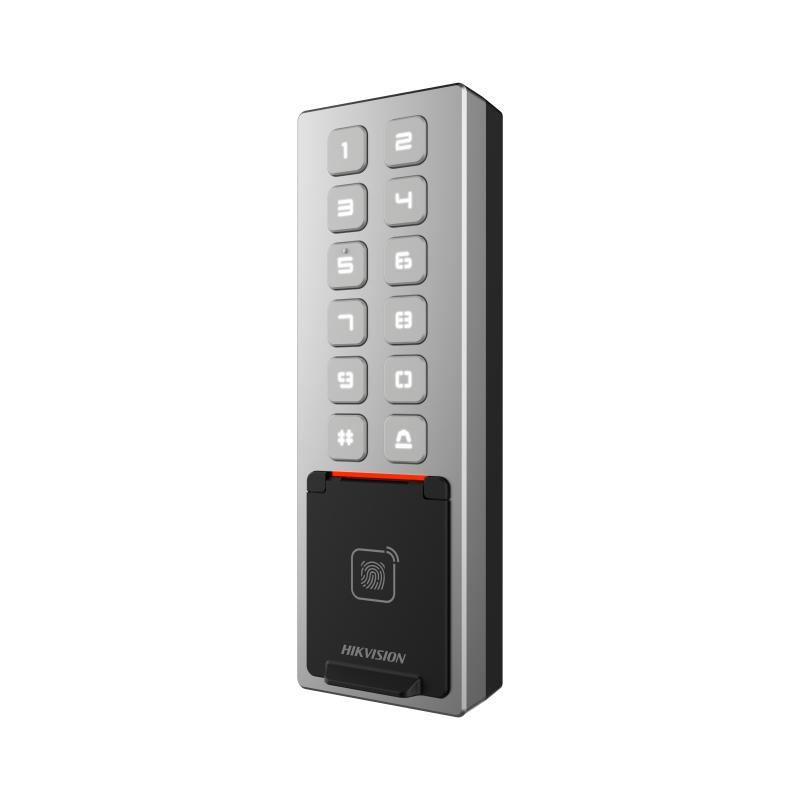

DS-K1T805EBFWX

Access Control Terminal

  • High protective level: IP65 and IK08
  • Slim and flexible design with metal
  • 3,000 fingerprints, 10,000 cards and 100,000 events storage
  • Built-in card reader for EM card
  • Supports operation by mobile App (Hik-Connect)
  • Supports AP configuration, configuration via PC web and mobile web are available
  • Supports multiple authentication types: card, fingerprint, PIN, and bluetooth
  • specification

    • System
    • Operating systemLinux
    • Audio
    • Audio output1 built-in buzzer
    • Network
    • BluetoothSupport
    • Wired network10/100 Mbps self-adaptive
    • Wi-Fi2.4 GHz, IEEE802.11b, 802.11g, 802.11n, 802.11d, 802.11e, 802.11h, 802.11i
    • Interface
    • RS-4851, supports OSDP
    • Network interface1
    • WiegandWiegand 26/34
    • Lock control1
    • Exit button1
    • Door contact input1
    • Alarm input2
    • Alarm output1
    • TAMPER1
    • Capacity
    • Card capacity10,000
    • Fingerprint capacity3000
    • Event capacity100,000
    • Authentication
    • Card typeEM card
    • Card reading distance0 to 1 cm
    • Card reading duration< 1 s
    • Fingerprint moduleOptical fingerprint module
    • Fingerprint comparing mode1:1 and 1:N
    • Fingerprint recognition duration< 1 s
    • Function
    • Hik-ConnectSupport
    • Configuration via Web BrowserSupport PC web configuration and mobile web operation
    • General
    • Power supply12 VDC/1 A
    • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
    • Working humidity0% to 90% (no condensing)
    • Dimensions57.7 mm × 177 mm × 34.6 mm (2.3″ × 7.0″ × 1.4″)
    • Power consumption≤ 12 W
    • LanguageEnglish, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, Ukrainian, and Russian
