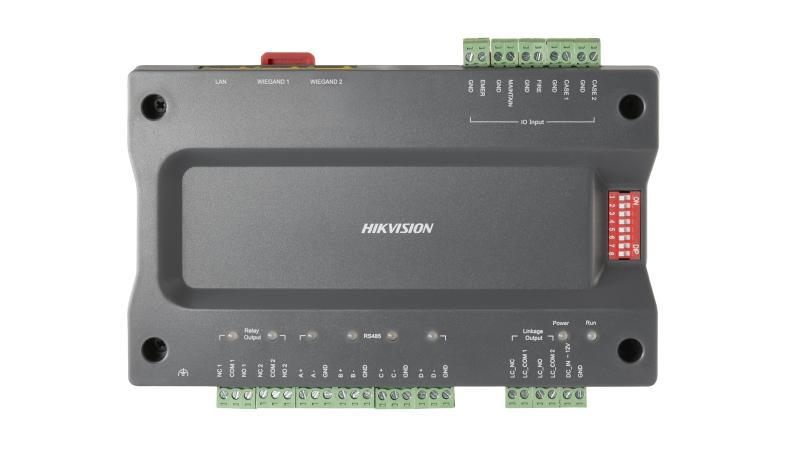

DS-K2210

Elevator Master Controller

Master elevator controller

Control 128 floors’ permissions

20,000 cards and 50,000 events storage

Uplink Communication: TCP/IP and RS-485

Multiple authentication modes

Configure and manage device via web client and client software

Watchdog and tamper-proof function

Accessible Card Reader: 2 Wiegand readers or 2 RS485 readers

specification

Device Interface
CommunicationTCP/IP;RS-485, and Wiegand
Input Interface1 Panic Button; 1 Fire Alarm Button; 1 Maintenance Button
Output Interface5 Relay Outputs
Internal ClockSupport
RTCSupport

General
Working Temperature-40°F to 158°F
Working Humidity0% to 90% (No Condensation)
Power Supply12 VDC±15%
InstallationGuide Rail Installation
Dimensions167(L)mm*105(W)mm*30(H)mm

System Parameter
Processor32 bit
IndicatorPower On: Solid Green,Running Properly: Flashing Green,Running Exception: Solid Red,Serial Port Not Communicating: Off,Serial Port Communicating: Solid Green,Relay NC: Off,Relay NO: Solid Green,Network Disconnected: Off,Network Cable Connected: Solid Yellow, Flashing Green,Network Armed: Solid Yellow, Flashing Green,
Card readerUp to 2 RS-485 Card Readers or 2 Wiegand Card Readers
