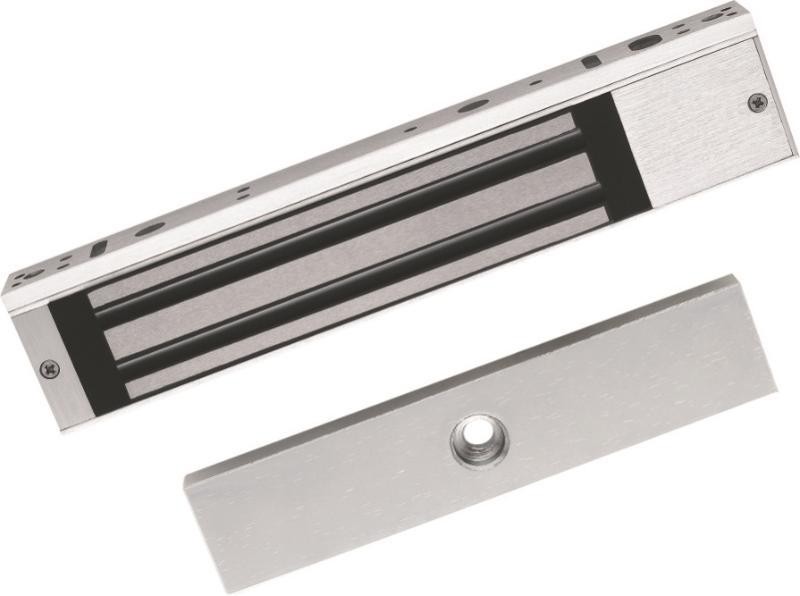

DS-K4H258

Value Series Magnetic Lock

Magnetic lock supports static linear thrust of 280 kg (617 Lbs)

Power supply can be 12VDC or 24VDC, (default voltage is 12VDC)

Suitable for wooden door, glass door, metal door and fireproof door

LED indicator displays door lock status

Abrasion-proof materials

specification

General
IndicatorGreen (Work Status)
Power supply12 VDC, 340 mAx2
Working temperature-10°C~+55°C (14°F~131°F)
Working humidity0~95% (Relative Humidity)
Dimensions
Lock Body: 238 × 45 × 25 mm (9.4 × 1.8 × 1.0″)

Armature Plate: 182 × 38 × 12.5 mm (7.2 × 1.5 × 0.5)”
Weight2.1 kg (4.6 Lbs)
Material
Shell: hard Anodizing Electroplating Operated

Lock Body: eco-friendly Nickel Electroplating Operated

Armature Plate: eco-friendly Zinc Electroplating Operated
ThrustMax. 280 kg (617 lb)
Door typeSingle leaf,Double leaf, Wooden Door, Glass Door, Metal Door, Fireproof Door

Magnetic Lock/General
Unlock methodCurrent Interruption
Surface temperature≤ Ambient Temperature +20°C (68°F)
