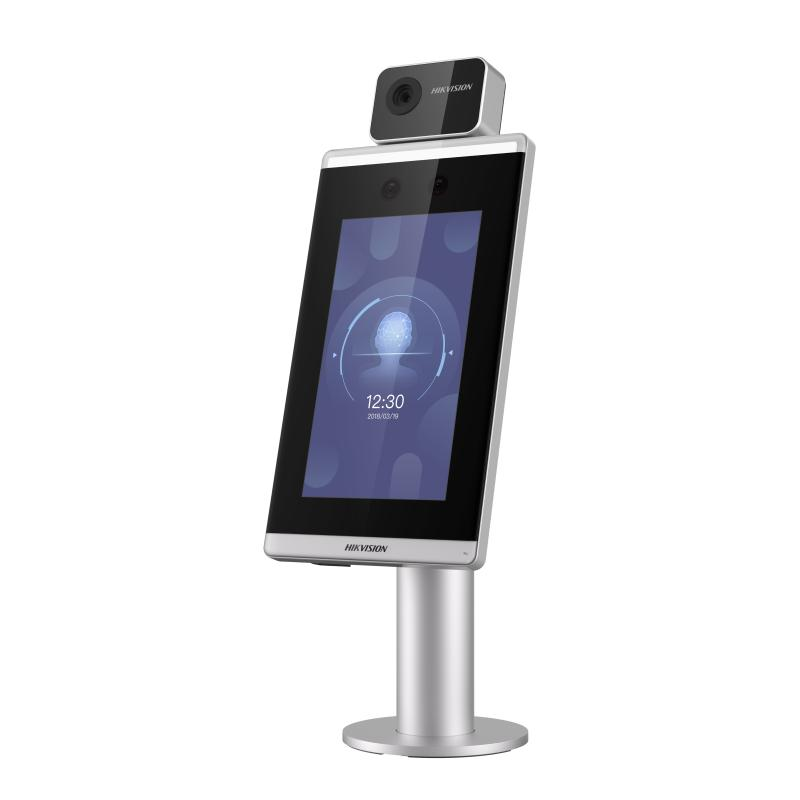

DS-K5671-3XF/ZU

Face Recognition Module For Turnstile

Compatible with Hikvision turnstile

Communicates with the third-party turnstile via IO output or Wiegand

Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: 0.1 ° C, deviation: ± 0.5 °C

Recognition distance: 0.3 to 2 m

Face mask detection

Displays temperature measurement results on the authentication page

50,000 face capacity and 100,000 event capacity

Face recognition duration ＜ 0.2 s/User

face recognition accuracy rate ≥ 99%

specification

Temperature measurement
Temperature range30 °C to 45 °C (86 °F to 113 °F)
SensorVanadium Oxide uncooled sensor
Resolution120 × 160
Frame rate25 fps
Measurement accuracy0.1 °C
Measurement deviation± 0.5 °C, without black body calibration
Measuring distance0.3 to 2 m

Display
Screen size7-inch
TypeTouch screen

Video
Resolution2 MP
LensDual-lens

Network
Wired networkSupport, 10/100/1000 Mbps self-adaptive
Wi-FiSupport

Interface
Network interface1
RS-4851
Wiegand1
Lock control1
Exit button1
Door contact input1
Alarm input2
Alarm output1
TAMPER1

Capacity
Face capacity50,000
Event capacity100,000

Authentication
Face recognition duration＜ 0.2 s per person
Face recognition distance0.3 to 2 m

Function
Face anti-spoofingSupport
Audio promptSupport

General
Power supply12 VDC/2 A
Working temperature
0 °C to 50 °C (32 °F to 122 °F)

For temperature measurement: 10 °C to 35 °C (50 °F to 95 °F)
Working humidity10 to 90% (No condensing)
Application environmentIndoor and windless environment use only
