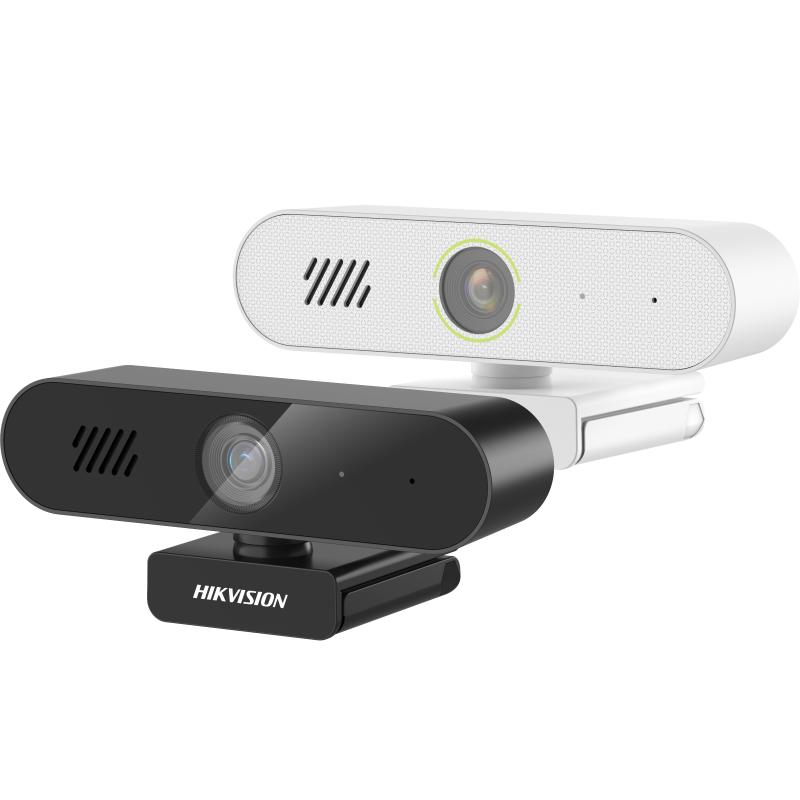

DS-UA12

2 MP Web Camera

2 MP CMOS

High quality imaging with 1920 × 1080 resolution

Min. illumination: 0.1 Lux @ (F1.2, AGC ON)

AGC for self-adaptive brightness

Built-in microphone with clear sound

Built-in speaker supports echo suppression

Type A interface, supporting USB 3.0 protocol. Plug-and-play, no need to install driver software

specification

Camera
Image Sensor2 MP CMOS
Signal SystemPAL/NTSC
Resolution1920 (H) × 1080 (V)
Frame Rate
MJPG:

1920 × 1080 @30/25 fps

1280 × 960 @30/25 fps

1280 × 720 @30/25 fps

640 × 480 @30/25 fps

640 × 360 @30/25 fps

YUV:

1920 × 1080 @5 fps

1280 × 960 @5 fps

1280 × 720 @10 fps

640 × 480 @30/25 fps

640 × 360 @30/25 fps

NV12：

1920 × 1080 @5 fps

1280 × 960 @10 fps

1280 × 720 @15 fps

640 × 480 @30/25 fps

640 × 360 @30/25 fps
Min. Illumination0.1 Lux @ (F1.2, AGC ON)
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens3.6 mm fixed focal lens
Field of Viewhorizontal FOV: 86°, vertical FOV: 55°, diagonal FOV: 95°
Lens MountM8
Day & Night24/7 Color Imaging
Angle Adjustmentpan: 360°; tilt: -15° to 15°; ratation: 0°
Pickup Distance3 m
Cable Length1.5 m
Depth of Field0.5 m to ∞

Speaker
Speaker Range0 m to 2 m

Functions
Echo CancellationYes

Wide Dynamic Range (WDR)Digital WDR

Audio
Audio Sampling Rate
Microphone: 16 kHz

Speaker: 48 kHz

Interface
Video OutputUSB 3.0
Audio
Built-in speaker

Built-in microphone
Operating System
Recommended systems

Windows 7/8/10/11

Android 8.1 and above version

Linux 4.14 and above version

macOS 10.12 and above version

Chrome OS

General
Operating Conditions-10 °C to 45 °C, humidity: 90% or less (non-condensing)
Power Supply5 VDC ± 5% (USB)
ConsumptionMax. 2.5 W (Max. 4.5 W with speaker working)
Dimension103 mm × 48.5 mm × 43.6 mm (4.05″ × 1.91″ × 1.72″)
WeightApprox. 113 g (0.25 lb.)

Accessory
Packing List
Camera × 1

Quick Start Guide × 1
