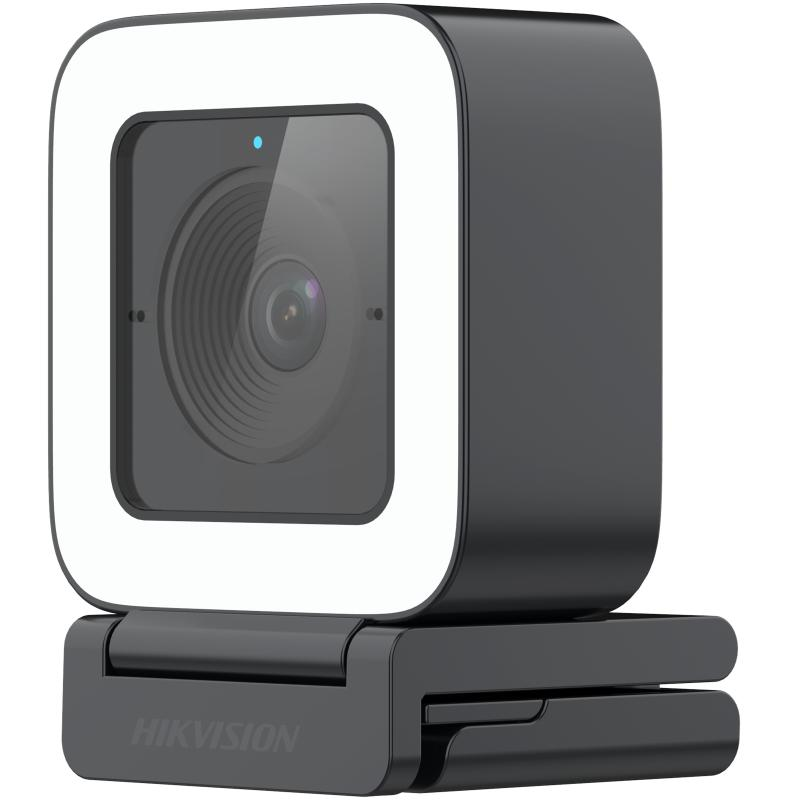

DS-UL2

2MP Live Web Camera

High quality imaging with 1920 × 1080 resolution

Built-in supplement light for bright imaging

Low distortion lens for reducing image distortion

Built-in microphone with clear sound

Type-C interface, supporting USB 2.0 protocols

Plug-and-play, no need to install driver software

Support auto focus

specification

Camera
Image Sensor2 MP CMOS
Signal SystemPAL/NTSC
Frame Rate
MJPG：

1920 × 1080 @60fps/50fps/30fps/25fps

1280 × 960 @60fps/50fps/30fps/25fps

1280 × 720 @60fps/50fps/30fps/25fps

640 × 480 @60fps/50fps/30fps/25fps

640 × 360 @60fps/50fps/30fps/25fps

YUV2：

1920 × 1080 @5fps

1280 × 960 @5fps

1280 × 720 @10fps

640 × 480 @30fps

640 × 360 @30fps
Resolution1920 (H) × 1080 (V)
Min. Illumination0.1 Lux @ (F1.2, AGC ON)
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens3.6 mm fixed focal lens
Field of Viewhorizontal FOV: 87°, vertical FOV: 55°, diagonal FOV: 95°
Lens MountM8
Day & Night24/7 Color Imaging
Angle Adjustmentpan: 0°; tilt: 0° to 90°; rotation: 0°
Digital ZoomYes
Cable Length2 m

Lens
Depth of Field5 cm to ∞

Audio
Audio Sampling Rate16 kHz

Interface
Video OutputUSB 2.0
Audio InBuilt-in mic
Operating System
Recommended systems

Windows 7/8/10/11

Android 8.1 and above version

Linux 4.14 and above version

macOS 10.12 and above version

Chrome OS

General
Operating Conditions-10°C to 40°C, Humidity: 90% or less (non-condensing)
Power SupplyDC 5V ± 5% (USB)
Consumption2.5 W MAX
Dimension47.9 mm × 59.9 mm × 75.4 mm (1.89″ × 2.36″ × 2.97″)
WeightApprox. 169.5g (0.37 lb.)

Accessory
Packing List
Camera × 1

USB Cable × 1

Quick Start Guide × 1

Bracket × 1

Tripod × 1
