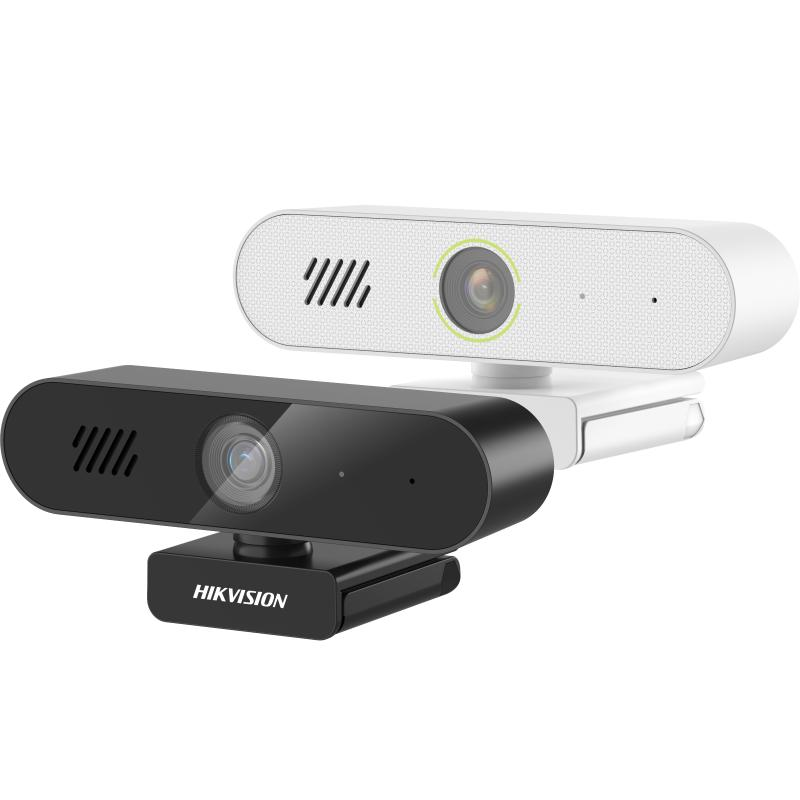

DS-UA14

4 MP Web Camera

  • 4 MP CMOS
  • High quality imaging with 2560 × 1440 resolution
  • Min. illumination: 0.1 Lux @ (F1.2, AGC ON)
  • Built-in microphone with clear sound
  • AGC for self-adaptive brightness
  • Built-in speaker supports echo suppression
  • Type A interface, supporting USB 3.0 protocol. Plug-and-play, no need to install driver software
  • specification

    • Camera
    • Image Sensor4 MP CMOS
    • Signal SystemPAL/NTSC
    • Resolution2560 (H) × 1440 (V)
    • Frame Rate

      MJPG:

      2560 × 1440 @30/25 fps

      1920 × 1080 @30/25 fps

      1280 × 960 @30/25 fps

      1280 × 720 @30/25 fps

      640 × 480 @30/25 fps

      640 × 360 @30/25 fps

      YUV:

      1920 × 1080 @5 fps

      1280 × 960 @5 fps

      1280 × 720 @10 fps

      640 × 480 @30/25 fps

      640 × 360 @30/25 fps

      NV12:

      1920 × 1080 @5 fps

      1280 × 960 @10 fps

      1280 × 720 @15 fps

      640 × 480 @30/25 fps

      640 × 360 @30/25 fps

    • Min. Illumination0.1 Lux @ (F1.2, AGC ON)
    • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
    • Lens3.6 mm fixed focal lens
    • Field of Viewhorizontal FOV: 80°, vertical FOV: 50°, diagonal FOV: 88°
    • Lens MountM8
    • Day & Night24/7 Color Imaging
    • Angle Adjustmentpan: 360°; tilt: -15° to 15°; ratation: 0°
    • Pickup Distance3 m
    • Cable Length1.5 m
    • Depth of Field0.5 m to ∞
    • Speaker
    • Speaker Range0 m to 2 m
    • Functions
    • Echo CancellationYes
    • Image
    • Wide Dynamic Range (WDR)Digital WDR
    • Audio
    • Audio Sampling Rate

      Microphone: 16 kHz

      Speaker: 48 kHz

    • Interface
    • Video OutputUSB 3.0
    • Audio

      Built-in speaker

      Built-in microphone

    • Operating System

      Recommended systems

      Windows 7/8/10/11 (resolution higher than 1080P is only available in Windows 8.1 and above version)

      Android 8.1 and above version

      Linux 4.14 and above version

      macOS 10.12 and above version

      Chrome OS

    • General
    • Operating Conditions-10 °C to 45 °C, humidity: 90% or less (non-condensing)
    • Power Supply5 VDC ± 5% (USB)
    • ConsumptionMax. 2.5 W (Max. 4.5 W with speaker working)
    • Dimension103 mm × 48.5 mm × 43.6 mm (4.05″ × 1.91″ × 1.72″)
    • WeightApprox. 113 g (0.25 lb.)
    • Accessory
    • Packing List

      Camera × 1

      Quick Start Guide × 1
