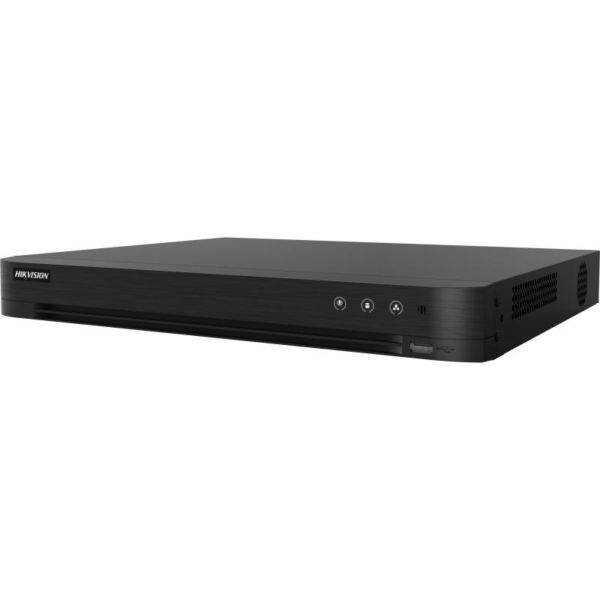

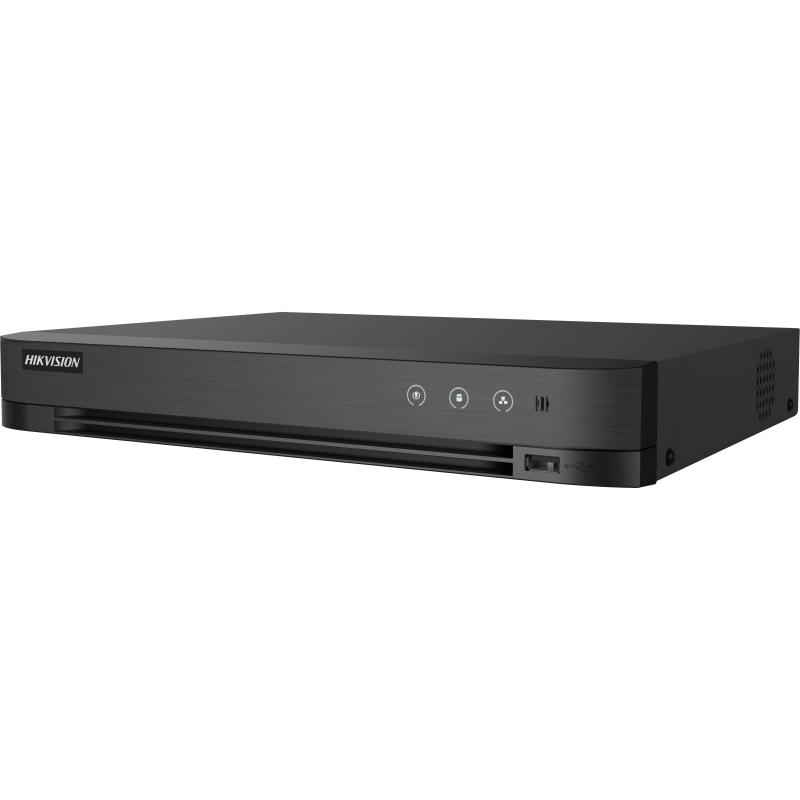

iDS-7208HUHI-M1/FA

8-ch 5 MP 1U H.265 AcuSense DVR

8 channels and 1 HDD 1U AcuSense DVR

Supports false alarm reduction based on deep learning algorithm

Efficient H.265 pro+ compression technology

Encoding ability up to 4K @ 7.5 fps/ 3K@12fps

Up to 12 network cameras can be connected

5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

specification

Facial Recognition
Face Picture LibraryUp to 16 face picture libraries, with up to 5000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 80 MB)
Face Picture Comparison1-ch face picture comparison alarm (HD analog camera)

Perimeter Protection
Human/Vehicle AnalysisUp to 4-ch

Facial Detection
Facial Detection and CaptureFace picture detection, face picture search

Recording
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate
Main stream:

8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate32 Kbps to 10 Mbps
Dual-streamSupport
Stream TypeVideo, Video & Audio
Audio CompressionG.711u
Audio Bitrate64 Kbps

Video and Audio
IP Video Input
4-ch (up to 12-ch)

Up to 8 MP resolution

IP enhanced mode on:

8-ch (up to 16-ch), each up to 4 Mbps

Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
8-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output
1-ch, 4K (3840 × 2160)/30Hz,

2K (2560 × 1440)/60Hz,

1920 × 1080/60Hz,

1280 × 1024/60Hz,

1280 × 720/60Hz

HDMI/VGA simultaneous output
VGA Output
1-ch, 1920 × 1080/60Hz,

1280 × 1024/60Hz,

1280 × 720/60Hz

HDMI/VGA simultaneous output
CVBS InputPAL/NTSC
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous Playback8-ch
HDTVI Input8 MP@15 fps, 8 MP@12 fps, 3K@20 fps, 5 MP@20 fps, 5 MP@12 fps, 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
AHD Input5 MP@20 fps, 5 MP@12 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
HDCVI Input8 MP@15 fps, 8 MP@12 fps, 5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
Audio Output1-ch, RCA (Linear, 1 KΩ)
Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)，8-ch via coaxial cable
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Network
Total Bandwidth128 Mbps
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connection64
Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary Interface
SATA1 SATA interface
Capacityup to 10 TB capacity for each disk
Serial InterfaceRS-485 (half-duplex)
USB Interface
Front panel: 1 × USB 2.0;

Rear panel: 1 × USB 3.0
Alarm In/OutN/A

General
Power Supply12 VDC, 2 A
Consumption≤ 15 W
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight≤ 2 kg (4.4 lb)
