NK44W0H(D)

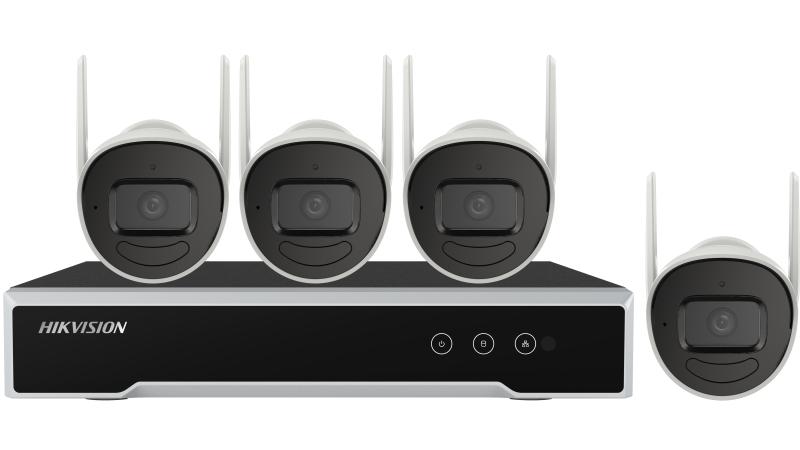

4MP H.265 Bullet WiFi Kit

  • One pack provides everything required for small monitoring scenarios:One 4-ch Wi-Fi NVR with decoding up to 4-ch @ 4MP
  • four 4 MP bullet Wi-Fi cameras with efficient H.265 compression technology
  • One network cable and one HDMI cable
  • Auto Wi-Fi connection and easy installation
  • Hik-Connect cloud service and app for remote management and viewing of devices
  • specification

    • Camera
    • Camera Case TypeBullet
    • Image Sensor1/3″ Progressive Scan CMOS
    • Min. IlluminationColor: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
    • Shutter Speed1/3 s to 1/100,000 s
    • Day &NightIR cut filter
    • WDRDWDR
    • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
    • Protection LevelIP66
    • MaterialFront cover: plastic, camera body: metal
    • Wi-Fi SupportYes
    • Camera/Lens
    • Focal Length2.8 mm
    • ApertureF1.6
    • FocusFixed
    • FOV2.8 mm, horizontal FOV: 97°, vertical FOV: 52°, diagonal FOV: 114°
    • Lens MountM12
    • Camera/IR
    • IR RangeUp to 30 m
    • Camera/Compression Standard
    • Video Compression Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264
    • H.264 TypeBaseline Profile/Main Profile/High Profile
    • H.264+Main stream supports
    • H.265 TypeMain Profile
    • H.265+Main stream supports
    • Video Bit Rate32 Kbps to 8 Mbps
    • Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
    • Audio Bit Rate64 Kbps(G.711 ulaw)/64 Kbps(G.711 alaw)/16Kbps(G.722.1)/16 Kbps(G.726)/32-160 Kbps(MP2L2)/16-64Kbps(AAC)
    • Audio Sampling Rate8 kHz/16 kHz
    • Environment Noise FilteringYes
    • Camera/Image
    • Max. Resolution2560 × 1440
    • Main Stream

      50Hz: 20 fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

      60Hz: 20 fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

    • Sub-stream

      50Hz: 20 fps (640 × 360)

      60Hz: 20 fps (640 × 360)

    • Image SettingMirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
    • Day/Night Switch Auto/Scheduled/Day/Night
    • Camera/Network
    • Alarm TriggerMotion detection, exception
    • ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour
    • General FunctionAnti-flicker, heartbeat, password reset via e-mail
    • ClientiVMS-4200, Hik-Connect
    • Camera/Interface
    • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
    • Audio I/O1 Built-in mic
    • Reset ButtonYes
    • Camera/General
    • Power Supply12 VDC ± 25%, 0.5 A, Ø5.5 mm coaxial plug power
    • Consumption ≤ 6 W
    • Working Temperature-30 °C to 60 °C (-22 °F to 140 °F)
    • Working Humidity95% or less (non-condensing)
    • Dimension (W × D × H)175.6 × 73.0 × 89.1 mm (6.9″ × 2.9″ × 3.5″)
    • Weight330 g (0.7 lb.)
    • NVR/Video and Audio
    • IP Video Input4-ch
    • Incoming/Outgoing Bandwidth50 Mbps/40 Mbps
    • HDMI/VGA Output

      1-ch, resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

      HDMI/VGA simultaneous output

    • Audio Output1-ch, RCA (linear, 1 KΩ)
    • NVR/Decoding
    • Video Resolution4 MP/3 MP/1080p/1.3 MP/720p
    • Synchronous Playback4-ch
    • Capability4-ch@4 MP (12 fps)/4-ch@1080p (25 fps)
    • NVR/Network
    • Network Interface1, RJ45 10/100M Ethernet interface
    • Network ProtocolIPv6, UPnP™, NTP, SADP, DHCP
    • Remote Connection16
    • NVR/Wi-Fi
    • Frequency Band2.4 GHz
    • Antenna Structure2 × 2MIMO
    • Transmission Speed144 Mbps
    • Transmission StandardIEEE 802.11b/g/n
    • NVR/Auxiliary interface
    • SATA1
    • CapacityUp to 6 TB capacity for each disk
    • USB InterfaceRear panel: 2 × USB 2.0
    • NVR/General
    • Power Supply12 VDC
    • Consumption (without HDD and PoE off)≤ 12 W
    • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
    • Working Humidity10% to 90%
    • Dimension (W × D × H)265 × 225 × 48 mm (10.4″ × 8.9″ × 1.9″)
    • Weight (without hard disk)≤ 1.6 kg (3.5 lb.)
    • Kit
    • Accessories

      Power cable: 4 × IPC power cables, 1 × NVR power cable

      Ethernet cable: RJ45, Cat5e UTP, 1 m. Connects NVR and Switch

      HDMI cable: 1 × HDMI cable, 2 m, black

    • CertificationFCC, CE
    • Weight (with package)≤ 7 kg (15.4 lb.)
