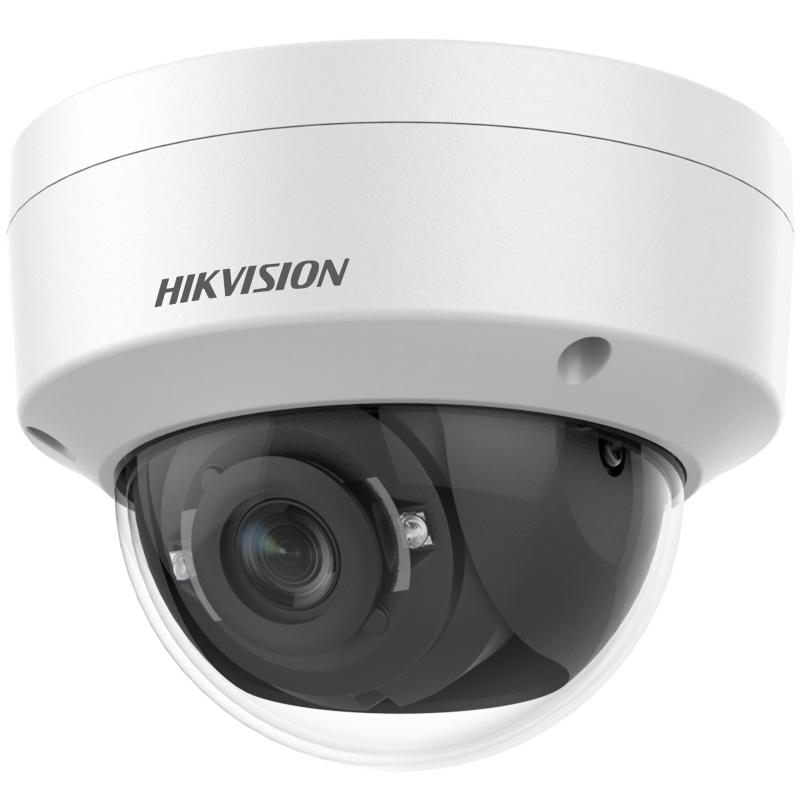

DS-2CE57U1T-VPITF

4K Vandal Fixed Dome Camera

8 MP dome camera

EXIR 2.0: advanced infrared technology with 30 m IR distance

Water and dust resistant (IP67) and vandal proof (IK10)

4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

specification

Camera
Image Sensor8.29 megapixel progressive scan CMOS
Max. Resolution3840 (H) × 2160 (V)
Min. IlluminationColor: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/12.5 s to 1/50,000 s

NTSC: 1/15 s to 1/50,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
Signal SystemPAL/NTSC

Lens
Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
Focal Length & FOVHorizontal FOV: 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
Lens MountM16

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 30 m
Smart Supplement LightYes

Image SettingsBrightness;Mirror;Sharpness;AGC
Frame Rate
TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps

CVI: 8MP@12.5fps, 8MP@15fps

AHD: 8MP@12.5fps, 8M@15fps

CVBS: 960H P/N
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC;HLC
Noise Reduction2D DNR
White BalanceAuto/Manual

Interface
Video Output1 HD analog output;Switchable TVI/AHD/CVI/CVBS

General
Power
12 VDC ±25%, max. 5.3 W

*You are recommended to use one power adapter to supply the power for one camera.
MaterialMetal
DimensionΦ 110.8 mm × 84.7 mm (Φ 4.4″ × 3.3″)
WeightApprox. 495 g (1.09 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish

Approval
ProtectionIP67, IK10
