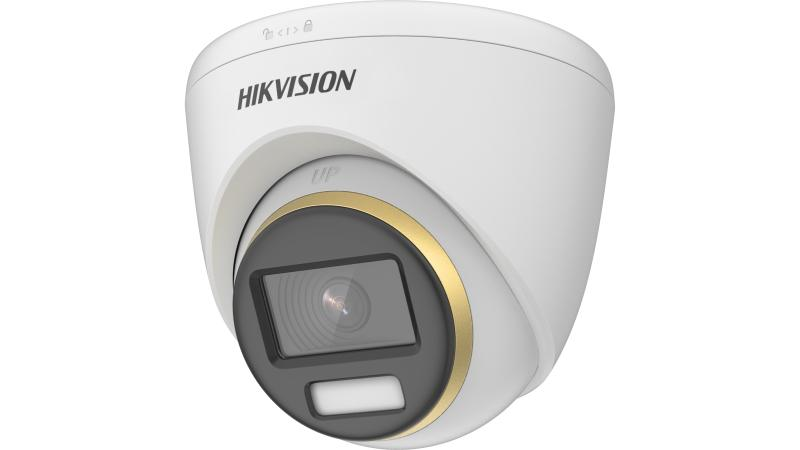

DS-2CE72DF3T-F

2 MP ColorVu Fixed Turret Camera

  • High quality imaging with 2 MP, 1920 × 1080 resolution
  • 24/7 color imaging with F1.0 aperture
  • Clear imaging against strong back light due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • 2.8 mm, 3.6 mm, 6 mm fixed focal lens
  • Up to 40 m white light distance for bright night imaging
  • One port for four switchable signals (TVI/AHD/CVI/CVBS)
  • Water and dust resistant (IP67)
  • specification

    • Camera
    • Image Sensor2 MP CMOS
    • Max. Resolution1920 (H) × 1080 (V)
    • Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light ON
    • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
    • Day & Night24/7 Color Imaging
    • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
    • Signal SystemPAL/NTSC
    • Slow ShutterMax. 16 times
    • Light AlarmSolid Light Alarm (White Light)
    • Lens
    • Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
    • Focal Length & FOV

      2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°

      3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°

      6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 59°

    • Lens MountM12
    • Illuminator
    • Supplement Light RangeUp to 40 m
    • Smart Supplement LightYes
    • Supplement Light TypeWhite Light
    • Image
    • Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
    • Image SettingsBrightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, AGC
    • Frame Rate

      TVI: 1080p@25fps/30fps

      CVI: 1080p@25fps/30fps

      AHD: 1080p@25fps/30fps

      CVBS: PAL/NTSC

    • Day/Night ModeColor
    • Wide Dynamic Range (WDR)≥130 dB
    • Image EnhancementWDR, BLC, HLC, Global, HLS
    • Privacy Mask4 programmable privacy masks
    • Noise Reduction3D DNR/2D DNR
    • White BalanceAuto/Manual
    • Interface
    • Video OutputSwitchable TVI/AHD/CVI/CVBS
    • Event
    • Motion Detection4 programmable motion areas
    • General
    • MaterialMain body: Metal, Enclosure: Plastic
    • DimensionΦ 109.98 mm × 98.27 mm (Φ 4.33″ × 3.87″)
    • WeightApprox. 348.5 g (0.77 lb.)
    • Operating Condition-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
    • CommunicationHIKVISION-C
    • LanguageEnglish
    • Power

      12 VDC ± 25%, Max. 4.2 W

      *You are recommended to use one power adapter to supply the power for one camera.

    • Approval
    • ProtectionIP67
