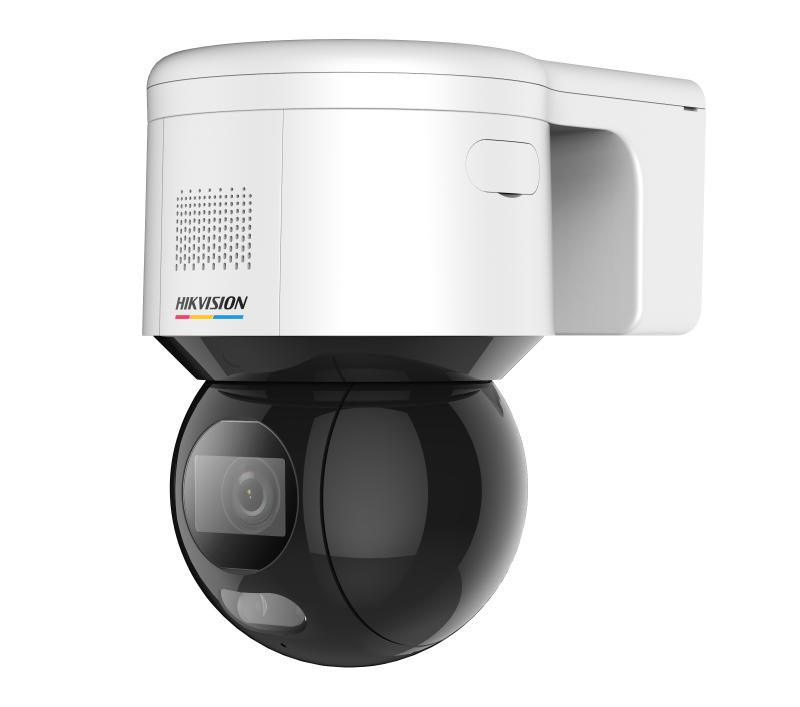

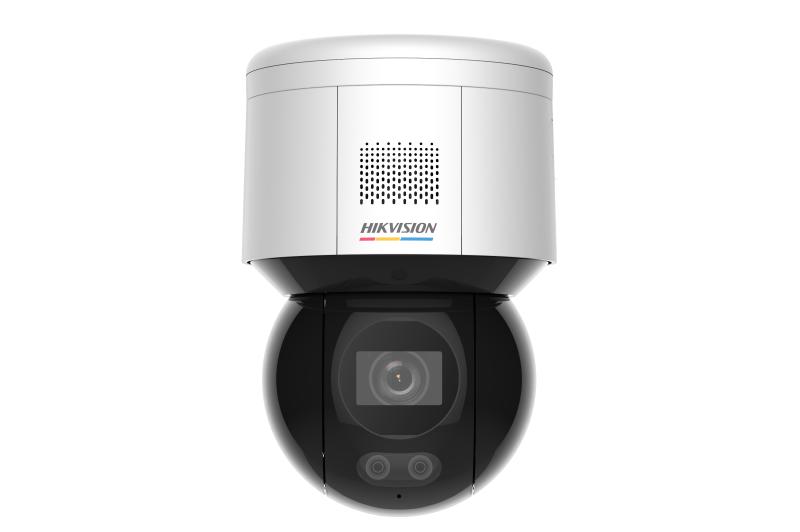

DS-2DE3A400BW-DE/W(T5)

3-inch 4 MP ColorVu Wi-Fi Mini PT Dome Network Camera

  • Accurate human and vehicle target classification and alarm, and face capture based on deep learning hardware and algorithm
  • Face capture: automatic selection of best shot; up to 5 faces detected and captured at the same time
  • Linked audible and visual alarm. Built-in microphone and speaker
  • Up to 2560 × 1440 @ 30 fps
  • Min. illumination: Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light
  • 24/7 colorful imaging with low power consumption. Up to 30 m white light distance
  • 120 dB WDR, 3D DNR, HLC
  • IP66; PoE
  • specification

    • Camera
    • Image Sensor1/1.8″ progressive scan CMOS
    • Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light
    • Shutter Speed1/1 to 1/30,000 s
    • Day & Night24/7 colorful imaging
    • Zoom16x digital
    • Max. Resolution2560 × 1440
    • Lens
    • Focal Length4 mm
    • FOV

      Horizontal field of view: 88.7°

      Vertical field of view: 46.5°

      Diagonal field of view: 105.0°

    • ApertureF1.0
    • Illuminator
    • Supplement Light TypeWhite Light
    • Supplement Light RangeWhite Light Distance: up to 30 m
    • PTZ
    • Movement Range (Pan)350°
    • Movement Range (Tilt)0° to 90°
    • Pan SpeedPan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s
    • Tilt SpeedTilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
    • Proportional PanYes
    • Presets300
    • Power-off MemoryYes
    • Park ActionPreset, patrol scan
    • 3D PositioningYes
    • Preset FreezingYes
    • Scheduled TaskPreset, patrol scan, dome reboot, dome adjust, aux output
    • Video
    • Main Stream

      50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);

      60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

    • Sub-Stream

      50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);

      60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

    • Third Stream

      50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);

      60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

    • Video Compression

      Main stream: H.265+/H.265/H.264+/H.264

      Sub-stream: H.265/H.264/MJPEG

      Third stream: H.265/H.264/MJPEG

    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Region of Interest (ROI)8 fixed regions for each stream
    • Audio
    • Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
    • Environment Noise FilteringYes
    • Network
    • ClientiVMS-4200,Hik-Connect,*Wi-Fi connection with Hik-Connect directly is not possible
    • Network StorageNAS (NFS, SMB/ CIFS)
    • ProtocolsIPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
    • API ISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface (Profile S, Profile G, Profile T), ISUP
    • Simultaneous Live ViewUp to 20 channels
    • User/HostUp to 32 users. 3 levels: Administrator, Operator and User
    • SecurityAuthenticated username and password, MAC address binding, HTTPS encryption, IP address filter
    • Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+
    • Wireless (Wi-Fi)
    • Wi-Fi ProtocolsIEEE802.11b, 802.11g, 802.11n
    • Frequency Range2.4 GHz -2.4835 GHz
    • Channel Bandwidth 20/40 MHz
    • Modulation

      802.11b: CCK, DQPSK, DBPSK

      802.11g: OFDM/64-QAM, 16-QAM, QPSK, BPSK

      802.11n: OFDM/64-QAM, 16-QAM, QPSK, BPSK

    • Encryption Mode64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
    • Transfer Rate11b: 11 Mbps, 11g: 54 Mbps, 11n: up to 150 Mbps
    • Wireless RangeUp to 50 m
    • Image
    • Day/Night SwitchDay, night, auto, scheduled-switch
    • Image EnhancementBLC, HLC, 3D DNR
    • Wide Dynamic Range (WDR)120 dB WDR
    • DefogDigital defog
    • Regional ExposureYes
    • Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
    • Image Parameters SwitchYes
    • Privacy MaskUp to 24 masks (8 masks for each scene)
    • SNR> 52 dB
    • Interface
    • Built-in Speaker1 built-in speaker
    • Power Output12 VDC; < 60 mA
    • Ethernet Interface1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at)
    • On-board StorageBuilt-in memory card slot, support MicroSD/SDHC/SDXC, up to 512 GB
    • Alarm1 input, 1 output
    • Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
    • RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
    • ResetYes
    • Event
    • Basic EventVideo tampering alarm, motion detection, alarm input, alarm output, exception
    • Smart EventLine crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, audio exception detection
    • Alarm LinkagePreset, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, audible warning, white light flashing
    • Deep Learning Function
    • Face CaptureDetects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and outputs the best face picture
    • Perimeter Protection

      Line crossing, intrusion, region entrance, region exiting

      Support alarm triggering by specified target types (human and vehicle)

    • General
    • General FunctionMirror, password protection, watermark, IP address filter
    • Power

      12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A

      Max. 16 W (including max. 4 W for white light)

    • Operating ConditionHumidity: ≤ 90%, temperature: -30℃ to 65℃ (-22°F to 149°F)
    • DemistYes
    • Dimension179.3 mm × 120 mm × 182 mm (7.06″ × 4.72″ × 7.71″)
    • WeightApprox. 1.125 kg (2.48 lb.)
    • Approval
    • ProtectionIP66; 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
