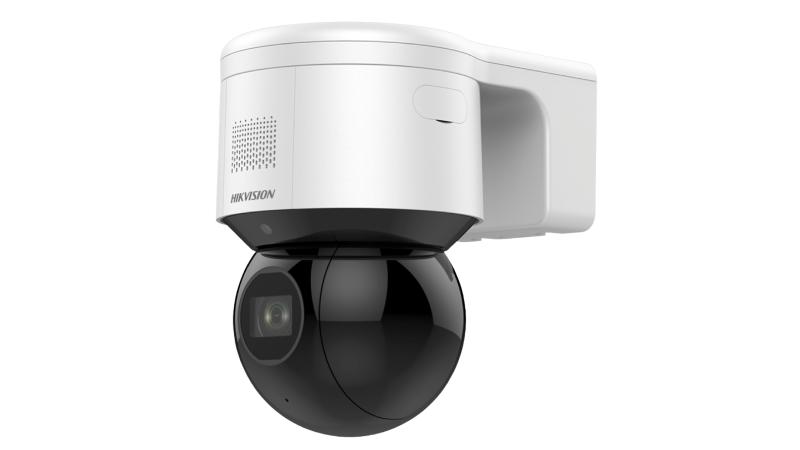

DS-2DE3A404IWG-E/W

4 MP 4x Zoom IR Wi-Fi Mini PT Dome Network Camera

High quality imaging with 4 MP resolution

Focuses on human and vehicle targets classification based on deep learning

Excellent low-light performance via powered-by-DarkFighter technology

Clear imaging against strong back lighting due to 120 dB WDR technology

Pan and tilt ability enables camera to monitor zones of interest

4 × optical zoom allows for closer viewing of subjects in expansive areas

Up to 50 m IR range ensures safety at night

Wi-Fi connection and easy installation

Support audio visual alarm

specification

Camera
Image Sensor1/2.8″ progressive scan CMOS
Max. Resolution2560 × 1440
Min. IlluminationColor: 0.005 Lux @(F1.5, AGC ON); B/W: 0.001 Lux @(F1.5, AGC ON); 0 Lux with IR
Shutter Speed1 to 1/30,000 s
Day & NightIR cut filter
Zoom4 × optical, 16 × digital

Lens
Focal Length2.8 to 12 mm
FOV
Horizontal field of view: 96.7° to 31.6° (wide-tele)

Vertical field of view: 51.1° to 17.7° (wide-tele)

Diagonal field of view: 115.1° to 36.3° (wide-tele)
FocusAuto, semi-auto, manual
ApertureMax. F1.5
Zoom SpeedApprox. 2 s (optical lens, wide-tele)

Illuminator
Supplement Light RangeIR distance: up to 50 m, white light distance: up to 6 m
Smart Supplement LightYes

PTZ
Movement Range (Pan)0° to 350°
Movement Range (Tilt)0° to 90°
Pan SpeedConfigurable, from 0.1°/s to 60°/s. Preset speed: 60°/s
Tilt SpeedConfigurable, from 0.1°/s to 50°/s. Preset speed: 50°/s
Proportional PanYes
Presets300
Preset FreezingYes
Patrol Scan8 patrols, up to 32 presets for each patrol
Park ActionPreset,Patrol Scan
3D PositioningYes
PTZ Status DisplayYes
Scheduled TaskPreset,Patrol Scan,dome reboot, dome adjust, aux output
Power-off MemoryYes

Video
Main Stream
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

Third Stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline profile/main profile/high profile
H.265 TypeMain profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)8 fixed regions for each stream

Audio
Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
Simultaneous Live ViewUp to 20 channels
APIOpen Network Video Interface, ISAPI, SDK, ISUP
User/HostUp to 32 users. 3 user levels, administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client
iVMS-4200, HikCentral, Hik-Connect

*Wi-Fi connection with Hik-Connect directly is not possible.
Web BrowserIE10-11, Chrome 57.0+, Firefox 52.0+, Safari 12+

Wireless (Wi-Fi)
Encryption Mode64/128-bit WEP,WPA/WPA2,WPS
Wi-Fi ProtocolsIEEE802.11b, 802.11g, 802.11n
Frequency Range2.4 GHz – 2.4835 GHz
Channel Bandwidth 20/40MHz
Modulation
802.11b: CCK, DQPSK, DBPSK

802.11g: OFDM/64-QAM, 16-QAM, QPSK, BPSK

802.11n: OFDM/64-QAM, 16-QAM, QPSK, BPSK
Transfer Rate
802.11b: 11, 5.5, 2, 1 Mbps

802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps

802.11n: mcs0 – msc7
Wireless RangeUp to 150 m (The performance varies based on actual environment)
Antenna Built-in 2 antennas

Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Wide Dynamic Range (WDR)120 dB
DefogDigital defog
Image EnhancementBLC, HLC, 3D DNR
Privacy Mask24 programmable polygon privacy masks, mask color configurable
Regional FocusYes
Regional ExposureYes

Interface
Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone1 built-in microphone
Built-in Speaker1 built-in speaker, 8 Ω, 2 W. Max sound pressure level: 100 dB (10 cm)
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarm1 input, 1 output
Power Output12 VDC, max. 60 mA

Event
Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), alarm input and output
Smart EventFace detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Alarm LinkagePreset, Patrol Scan，Upload to FTP/memory card/NAS, notify surveillance center, send email, audible warning，Flashing Alarm

Deep Learning Function
Multi-Target-Type DetectionSupports simultaneous detection and capture of human body, face and vehicle

General
Power
12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A

Max. 16 W (including max. 2.4 W for IR, 1.2 W for white light flashing)
Dimension179.3 mm × 120.5 mm × 182 mm (7.06″ × 4.74″ × 7.17″)
WeightApprox. 1.125 kg (2.48 lb.)
MaterialADC12 + PC
Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)

Approval
ProtectionIP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection
