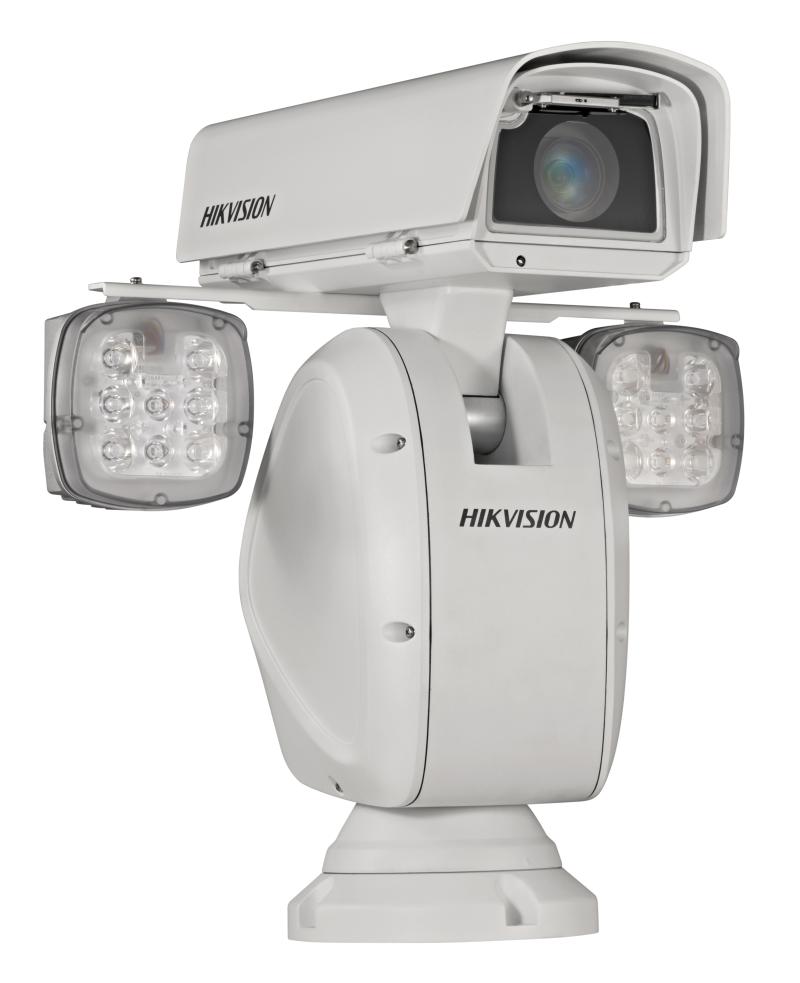

DS-2DY9240IX-A(T5)

9-inch 2 MP 40X DarkFighter IR Network Positioning System

1/1.8″ progressive scan CMOS

Up to 1920 × 1080 resolution

Min. illumination:Color: 0.005 Lux @(F1.2, AGC ON) ,B/W: 0.001 Lux @(F1.2, AGC ON),0 Lux with IR

Rain-sensing auto wiper

40× optical zoom, 16×digital zoom

140dB WDR, 3D DNR, HLC, BLC, Smart IR

24 VAC

Support H.265+/H.265 video compression

Support up to 400 m IR distance

specification

Camera
Image Sensor1/1.8＂ progressive scan CMOS
Min. Illuminationcolor: 0.005Lux @ (F1.2，AGC ON);B/W: 0.001Lux@(F1.2，AGC ON);0 Lux with IR
Shutter Speed1/1s ~ 1/30,000s
Focusauto;semi-auto;manual
Day & NightICR
BLCyes
WDR140 dB WDR
HLCyes
3D DNRyes
EISYes. Built-in gyroscope to improve EIS performance.
Regional Exposureyes
Regional Focusyes
White Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB;Locked WB
Digital Zoom16x
Optical Zoom40 ×
Privacy Maskup to 24 masks;polygon region ;mosaic mask ;mask color configurable
General Functionmirror, password protection, watermark, IP address filter

Lens
Focal Length6.0 mm to 240 mm, 40 × optical
Zoom Speedapprox.5.6s
FOV
Horizontal field of view: 59.0 to 1.8° (wide-tele)

Vertical field of view: 33.7° to 1.1° (wide-tele),

Diagonal field of view: 63.4° to 2.1° (wide-tele)
ApertureF1.2

Illuminator
IR Distanceup to 400 m IR distance

PTZ
Movement Range (Pan)360°
Movement Range (Tilt)+40° to -90°
Pan Speedpan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
Tilt Speedtilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
Proportional Zoomyes
Presets300
Patrol Scan8 patrols
Pattern Scan4 pattern scans
Power-off Memoryyes
Park Actionpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
3D Positioningyes
PTZ Status Displayyes
Preset Freezingyes
Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output

Video
Max. Resolution1920 × 1080
Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)

60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)

60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionH.265;H.264;MJPEG
H.264 Typebaseline profile;main profile;high profile
H.265 Typemain profile
H.264+yes
H.265+yes
SVCyes
ROIyes

Audio
Audio CompressionG.722.1;G.711alaw;G.711ulaw;MP2L2;G.726;PCM

Smart Features
Face CaptureSupport detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
Basic Eventmotion detection;video tampering alarm;alarm input;alarm output;exception
Smart EventIntrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection;unattended baggage detection;object removal detection
Smart Trackingmanual tracking;event tracking
Smart RecordANR;Dual-VCA
Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
APIOpen-ended API; ISAPI;Hikvision SDK;Third-party management platform;Hik-Connect;ISUP;Open Network Video Interface
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users. 3 levels: Administrator, Operator and User
Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect;HikCentral Pro
Web BrowserIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

Interface
Communication Interface1 RJ45 10 M/100 M Ethernet Interface
On-board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
Alarm Input7 alarm inputs
Alarm Output2 alarm outputs
Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output1 audio output, line level, impedance: 600 Ω
RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

General
Power24 VAC ± 25%, max. 100 W
Vandal-proof Alarmyes
Operating ConditionsTemperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
WiperYes. Rain-sensing auto control
MaterialAluminum alloy ADC12
Dimensions460 mm × 390 mm × 491 mm (18.11″ × 15.35″ × 19.33″)
WeightApprox. 15 kg (33.07 lb)
Web Client Language32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Approval
ProtectionIP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
