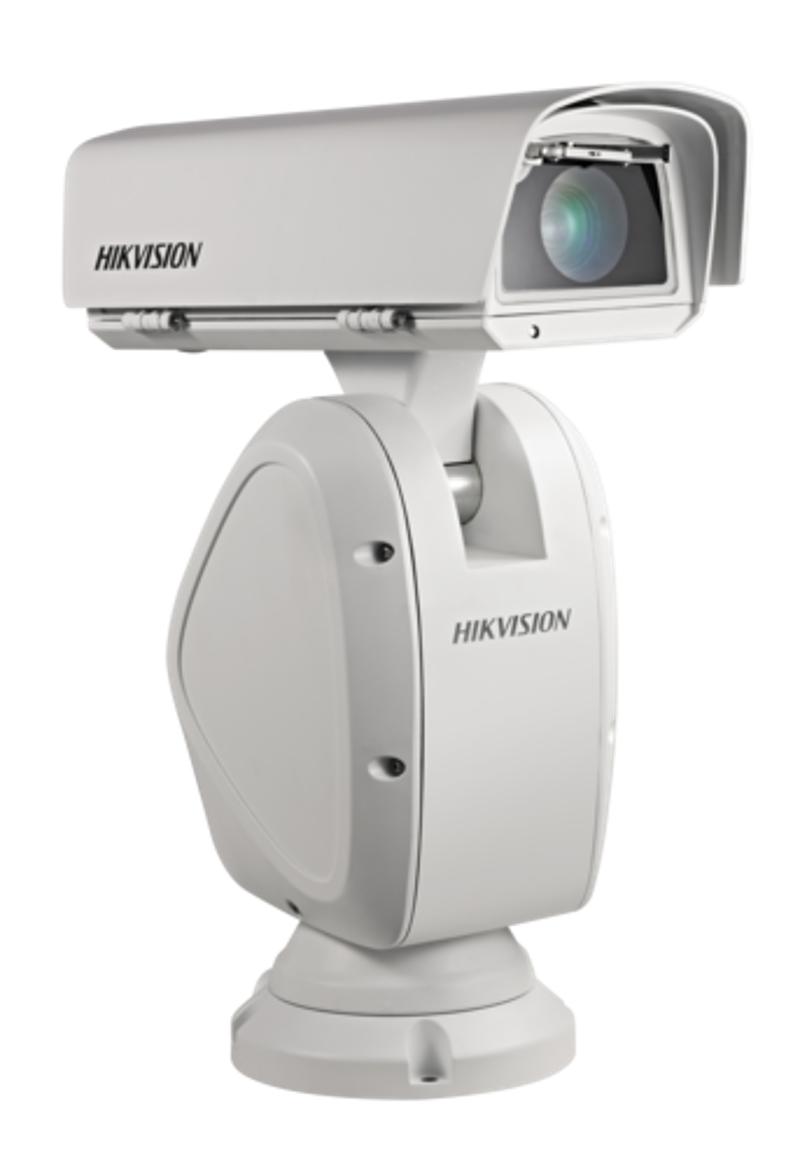

DS-2DY9250X-A(T5)

9-inch 2 MP 50X Powered by DarkFighter Network Positioning System

  • 1/1.8″ progressive scan CMOS
  • Up to 1920 × 1080 resolution
  • Min. illumination:Color: 0.005 Lux @(F1.2, AGC ON) ,B/W: 0.001 Lux @(F1.2, AGC ON)
  • Rain-sensing auto wiper
  • 50× optical zoom, 16×digital zoom
  • 140dB WDR, 3D DNR, HLC, BLC, Smart IR
  • 24 VAC
  • Support H.265+/H.265 video compression
  • specification

    • Camera
    • Image Sensor1/1.8" progressive scan CMOS
    • Min. Illuminationcolor: 0.005Lux @ (F1.2,AGC ON);B/W: 0.001Lux@(F1.2,AGC ON)
    • Shutter Speed1/1s ~ 1/30,000s
    • Focusauto;semi-auto;manual
    • Day & NightICR
    • BLCyes
    • WDR140 dB WDR
    • HLCyes
    • 3D DNRyes
    • EISYes. Built-in gyroscope to improve EIS performance.
    • Regional Exposureyes
    • Regional Focusyes
    • White Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB;Locked WB
    • Digital Zoom16x
    • Optical Zoom50x
    • Privacy Maskup to 24 masks;polygon region ;mosaic mask ;mask color configurable
    • General Functionmirror, password protection, watermark, IP address filter
    • Lens
    • Focal Length6.0 mm to 300 mm, 50 × Optical
    • Zoom Speedapprox. 6.3 s
    • FOV

      Horizontal field of view: 56.6° to 1.4°(wide-tele)

      Vertical field of view: 33.7° to 0.9° (wide-tele),

      Diagonal field of view: 63.4° to 1.6° (wide-tele)

    • ApertureF1.2
    • PTZ
    • Movement Range (Pan)360°
    • Movement Range (Tilt)+40° to -90°
    • Pan Speedpan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
    • Tilt Speedtilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
    • Proportional Zoomyes
    • Presets300
    • Patrol Scan8 patrols
    • Pattern Scan4 pattern scans
    • Power-off Memoryyes
    • Park Actionpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
    • 3D Positioningyes
    • PTZ Status Displayyes
    • Preset Freezingyes
    • Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
    • Video
    • Max. Resolution1920 × 1080
    • Main Stream

      50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)

      60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

    • Sub-Stream

      50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)

      60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

    • Third Stream

      50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

      60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

    • Video CompressionH.265;H.264;MJPEG
    • H.264 Typebaseline profile;main profile;high profile
    • H.265 Typemain profile
    • H.264+yes
    • H.265+yes
    • SVCyes
    • ROIyes
    • Audio
    • Audio CompressionG.722.1;G.711alaw;G.711ulaw;MP2L2;G.726;PCM
    • Smart Features
    • Face CaptureSupport detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
    • Basic Eventmotion detection;video tampering alarm;alarm input;alarm output;exception
    • Smart Eventintrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection
    • Smart Trackingmanual tracking;event tracking
    • Smart RecordANR;Dual-VCA
    • Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
    • Network
    • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
    • APIOpen-ended API; ISAPI;Hikvision SDK;Third-party management platform;Hik-Connect;ISUP;Open Network Video Interface
    • Simultaneous Live ViewUp to 20 channels
    • User/HostUp to 32 users. 3 levels: Administrator, Operator and User
    • Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
    • ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect;HikCentral Pro
    • Web BrowserIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
    • Interface
    • Communication Interface1 RJ45 10 M/100 M Ethernet Interface
    • On-board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
    • Alarm Input7 alarm inputs
    • Alarm Output2 alarm outputs
    • Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
    • Audio Output1 audio output, line level, impedance: 600 Ω
    • RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
    • General
    • Power24 VAC ± 25%, max. 100 W
    • Vandal-proof Alarmyes
    • Operating ConditionsTemperature: -40°C to 70°C (-40°F to 158°F),Humidity: ≤ 95%
    • WiperYes. Rain-sensing auto control
    • MaterialAluminum alloy ADC12
    • Dimensions180 mm × 390 mm × 491 mm (7.09″ × 15.35″ × 19.33″)
    • WeightApprox. 13 kg (28.66 lb)
    • Web Client Language32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
    • Approval
    • ProtectionIP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
