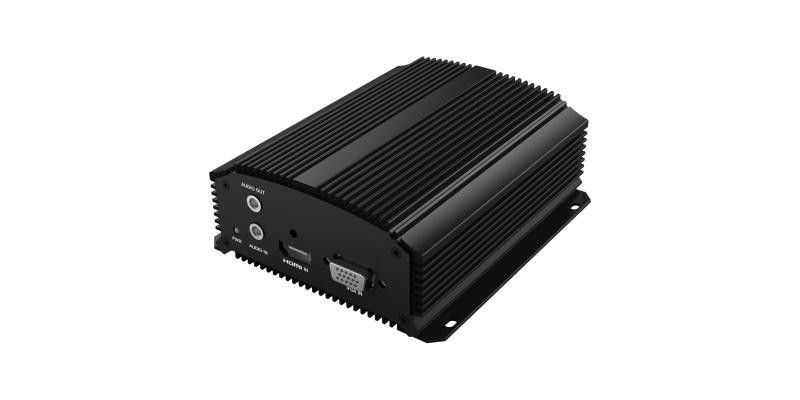

DS-6701HFHI/V

1-ch 1080p H.264 DVS

  • H.264/M-JPEG encoding formats available
  • independent configuration of encoding formats for main stream and sub stream
  • 1-ch ch HDMI or VGA video input and 1-ch VGA video loop out provided
  • Encoding at HD resolution of 1080p/720p/UXGA, etc.
  • Up to 128G Micro SD card available.
  • specification

    • External interface
    • Network interface1, RJ45 10/100 M self-adaptive Ethernet interface
    • Two-way audio input1, 3.5 mm interface (audio input multiplex)
    • Serial interface

      1, RS-485, half-duplex

      1, RS-232

    • Alarm in/out

      Alarm in:1-ch

      Alarm out:1-ch

    • Storage
    • Capacity4 TB for network single hard disk, 128 GB for micro SD card
    • General
    • Weight≤ 1 kg (2.2 lb)
    • Power supply12 VDC, 2-pin connector
    • Working temperature-10 to +55ºC
    • Working humidity10 to 90 %
    • Consumption≤ 6 W
    • (W × D × H)114 × 47.5 × 127.5 mm (4.5″ ×1.9″ ×5.0″)
    • Network management
    • Network protocols1, RJ45 10/100 M self-adaptive Ethernet interface
    • Video/Audio input
    • Video input

      1-ch, VGA

      1-ch, HDMI

    • HDTVI inputN/A
    • AHD inputN/A
    • HDCVI inputN/A
    • CVBS inputN/A
    • Audio input1-ch, 3.5 mm interface (two-way audio multiplex)
    • Audio output

      1-ch, 3.5 mm interface (linear, 600Ω)

      Video

    • Synchronous playbackN/A
    • Video/Audio encoding
    • Video compressionH.264/MJPEG
    • Audio compressionG.711u/G.711a/AAC
    • Main streamEncoding at HD resolution of 1080p/720p/UXGA, etc.
    • Frame rate1/16 FPS to full frame rate (full frame rate includes 25/30/50/60 frames, depending on input signal)
    • Video bit rate32 Kbps to 8192 Kbps, up to 16 Mbps
    • Audio bit rate16Kbps/128Kbps
    • Dual streamDual stream Sub stream resolution: WD1/4CIF/2CIF/CIF/QCIF
