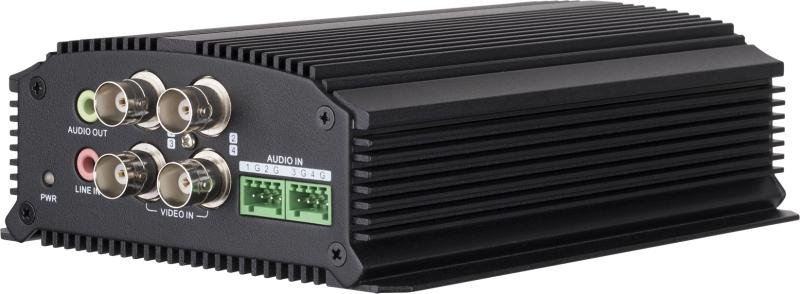

DS-6704HUHI

4-ch 5 MP H.265 DVS

Up to 4 analog cameras can be connected

Efficient H.265+ compression technology

Encoding ability up to 5 MP @ 12 fps

5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

Supports Micro SD card, up to 128 GB capacity

specification

Recording
Video CompressionMJPEG (sub-stream)/H.265+/H.265/H.264+/H.264
Encoding Resolution5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate
Main stream:

5 MP@12fps/4 MP@15fps/3 MP@18fps

1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bitrate32 Kbps to 10 Mbps
Dual-streamSupport
Audio CompressionG.711u
Audio Bitrate64 Kbps

Video and Audio
Analog Video Input
4-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input5MP, 4MP, 3MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30
CVBS InputPAL/NTSC
Audio Input4-ch
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
Synchronous Playback4-ch

Network
Network ProtocolTCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS, ONVIF profile S
Network Interface1, RJ45 10M/100Mself-adaptive Ethernet interface

Auxiliary Interface
SD Card1 Micro SD card slot, support Micro SD card
Capacity8G Up to 128 GB
Serial InterfaceRS-485 (half-duplex); RS-232
Alarm In/Out4/2

General
Power Supply12 VDC, 1.25 A
Consumption≤ 15W
Working Temperature-10 °C to +55 °C (+144 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)162.5 × 114 × 47.5 mm(6.4 × 4.5 × 1.9 inch)
Weight≤ 1.5 kg (3.3 lb)
