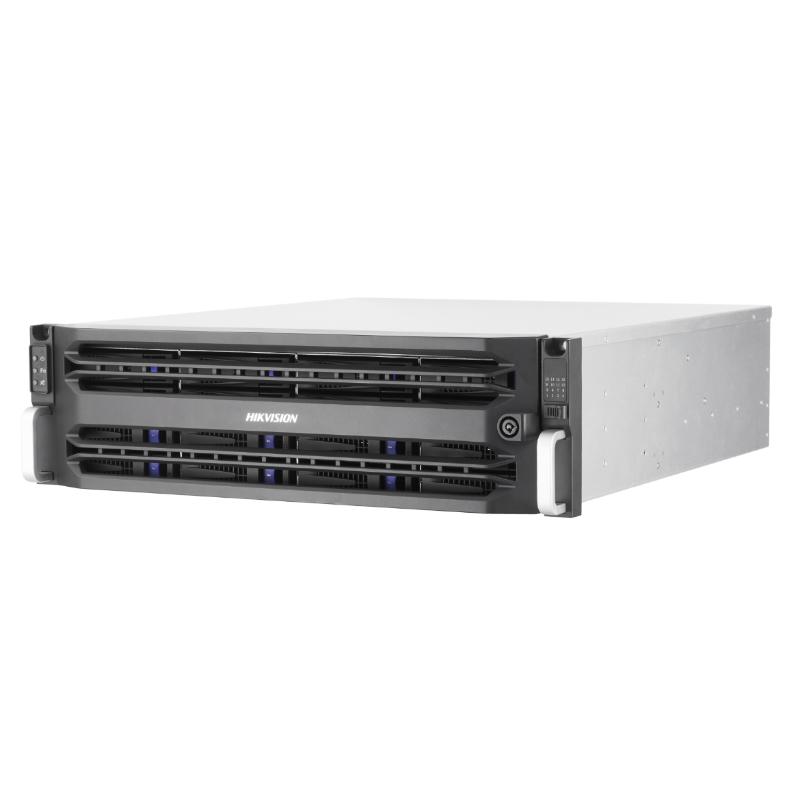

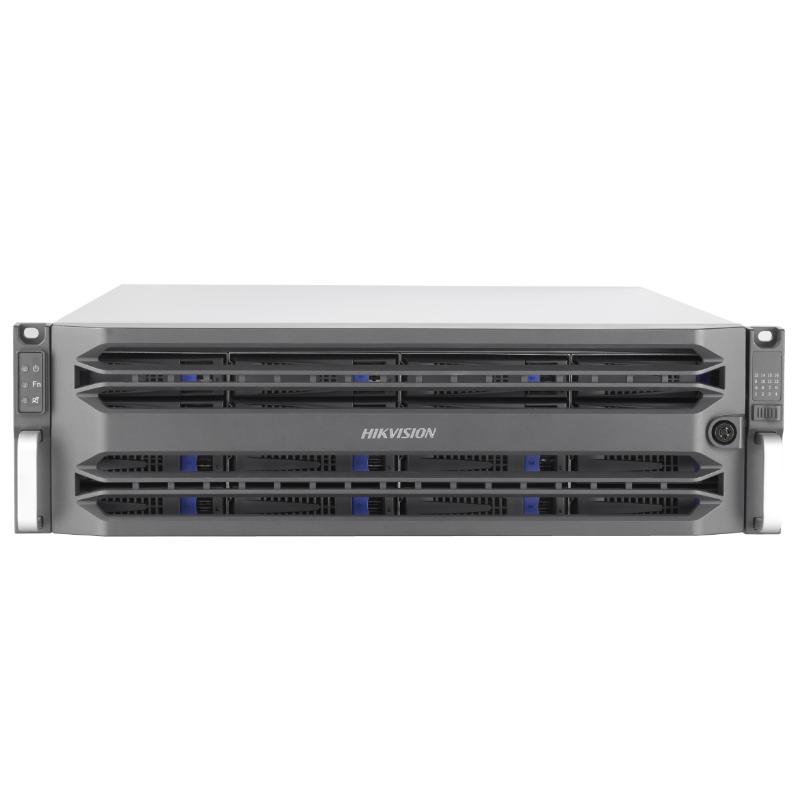

DS-A81016S

16-slot Single Controller Storage

  • Economical and Stable Hardware Platform
  • HDD detection and repair/RAID optimization
  • Surveillance-specialized direct storage (Direct Streaming mode+IP SAN mode)
  • Advanced data protection (synchronous backup of key information in system disks)
  • Energy efficient and user-friendly UI
  • specification

    • Network
    • ProtocoliSCSI, RTSP, ONVIF, PSIA

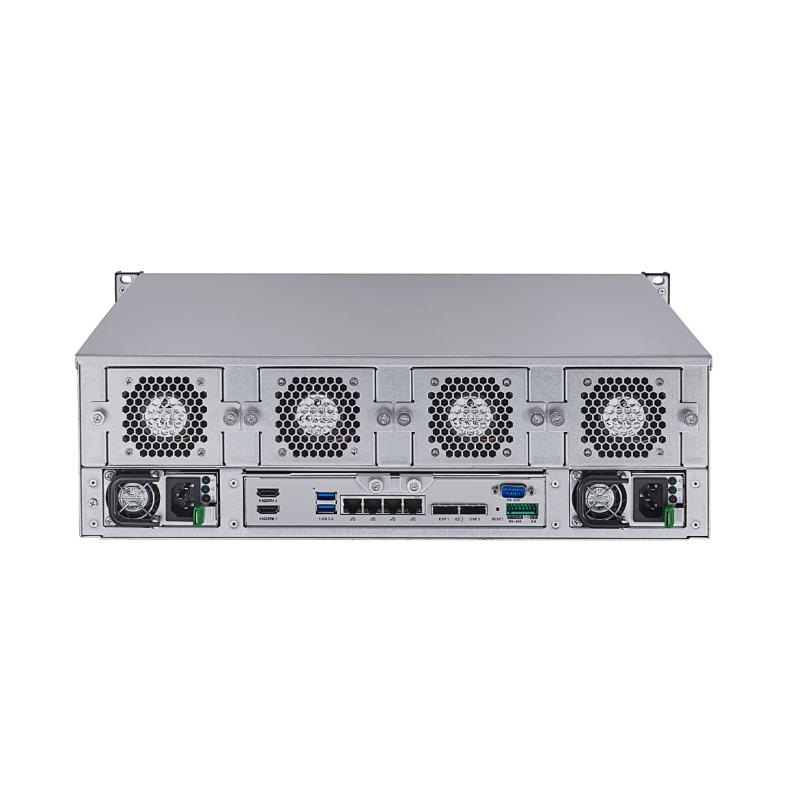

    • External interface
    • USB2
    • Data network interface3, 1000M Ethernet interface
    • MiniSAS interfaceSupported
    • COM1
    • Alarm interface1
    • HDMI2
    • Management network interface1, 1000M Ethernet interface
    • Storage
    • HDD slot16
    • Interface/capacitySATA/1TB, 2TB, 3TB, 4TB, 6TB,8TB,10TB,12TB,14TB,16TB
    • Hot-swappingSupported
    • HDD supportSingle, RAID(Enterprise Hard Disk)
    • RAIDRAID0, 1, 3, 5, 6, 10, 50, JBOD, Hot-spare
    • Performance
    • Direct Streaming Mode: video (2 Mbps) + picture320-ch recording + playback
    • IPSAN Mode180-ch recording + playback
    • Video performance320
    • Picture performance320
    • Hardware
    • StructureSingle Controller
    • ProcessorOne controller (64-bit multi-core processor)
    • Cache4 GB (extendable to 32 GB)
    • Storage Management
    • Disk managementDisk inspection, alarm and repair
    • Logical volume managementiSCSI volume, video volume management
    • Recording Management
    • Recording modeTiming recording, manual recording, dual-stream recording, alarm recording
    • Video protectionLock key video, N+1 service protection, ANR, video loss detection and alarm
    • Searching modeSearch by time and event
    • Downloading modeQuick download, batch download, download by segment, download by merging
    • Device Maintenance
    • Management modeWeb-based GUI, serial port CLI, centralized management of multiple devices
    • Alarm modeSound, light, email, message, web page
    • Log downloadingDownload no web page
    • HDD

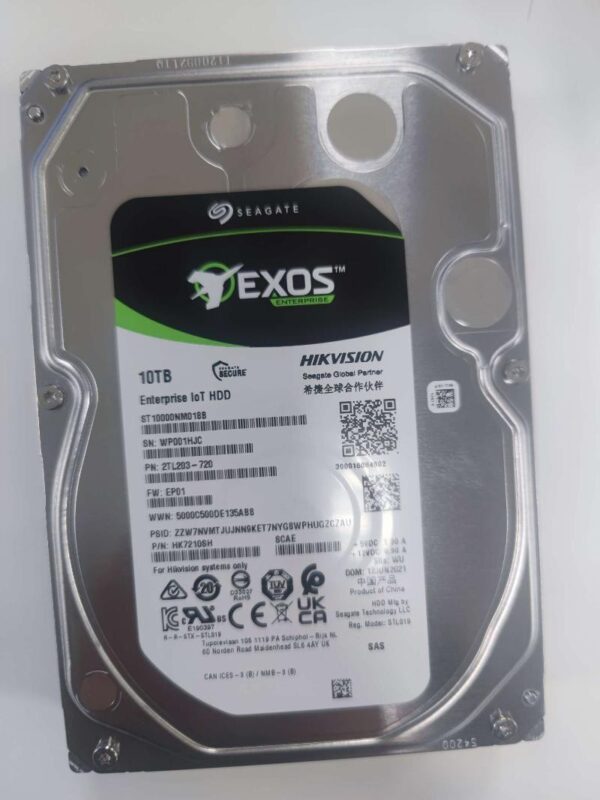

    • HDD Model

      Hikvision,HK7216AH,16T;

      Hikvision,HK7210AH,10T;

      Hikvision,HK728TAH,8T;

      Hikvision,HK726TAH,6T;

      Hikvision,HK724TAH,4T;

      Seagate,ST16000NM000J,16T;

      Seagate,ST10000NM017B,10T;

      Seagate,ST8000NM017B,8T;

      Seagate,ST6000NM019B,6T;

      Seagate,ST4000NM000B,4T;

    • General
    • Power supplyRedundant
    • Chassis3U (19-inch height)
    • Consumption(with HDDs)Working: ≤308 W (967 BTU with 16 HDDs) Rated: ≤ 550 W
    • Environment temperatureWorking: +5 °C to +40 °C (41 °F to 104 °F) Storing: -20 °C to +70 °C (-4 °F to +158 °F)
    • HumidityWorking: 20% to 80%RH (non-condensing/frozen) Storing: 5% to 90%RH (non-condensing/frozen)
    • Dimensions(W × D × H)486 x 535 x 134 mm (19.2 x 21.1 x 5.3 in)
    • Weight (without HDDs)≤ 20 Kg (44.1 lb)
