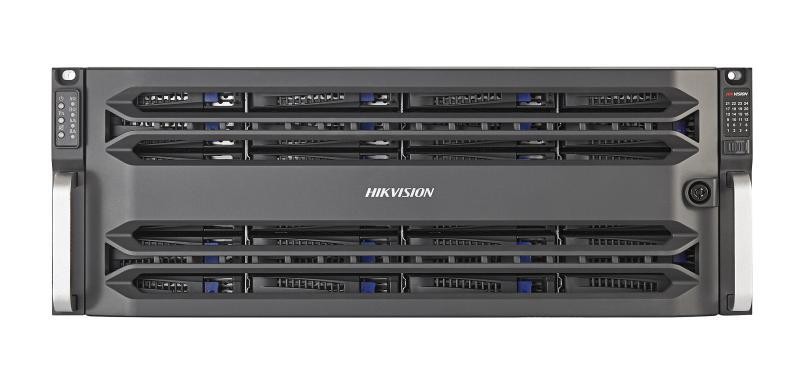

DS-A82024D

24-slot Cost-efficient Cluster Storage

  • Dual controller and real-time cache, optional BBU (Backup Battery Unit), one multi-core processor, 8 GB cache extendable to 32 GB per controller
  • High-performance, extendable hardware platform
  • HDD detection and repair/RAID optimization
  • Surveillance-specialized direct storage (Direct Streaming mode+IP SAN mode)
  • Advanced data protection (synchronous backup of key information in system disks)
  • Energy efficient and user-friendly UI
  • specification

    • Network
    • ProtocoliSCSI, RTSP, ONVIF, PSIA
    • External interface
    • USB3
    • VGA1
    • Data network interface4, 1000M Ethernet interface (4 × 1GbE or 2 × 10GbE is extendable)/Controller
    • MiniSAS interfaceSupported
    • Management network interface1, 1000M Ethernet interface/Controller
    • Storage
    • HDD slot24
    • Interface/capacitySSD (optional), SAS/1TB, 2TB, 3TB, 4TB, 6TB,8TB,10TB,12TB,14TB,16TB
    • Hot-swappingSupported
    • HDD supportSingle, RAID(Enterprise Hard Disk)
    • RAIDRAID0, 1, 3, 5, 6, 10, 50, JBOD, Hot-Spare
    • Performance
    • Direct Streaming Mode: video (2 Mbps) + picture448-ch (recording + playback)
    • IPSAN Mode256-ch (recording + playback)
    • Video performance448
    • Picture performance448
    • Hardware
    • StructureDual controller
    • Processor64-bit multi-core processor
    • Cache8 GB (extendable to 32 GB)/controller
    • Storage Management
    • Disk managementDisk inspection, alarm and repair
    • Logical volume managementiSCSI volume, video volume management
    • Recording Management
    • Recording modeTiming recording, manual recording, dual-stream recording, alarm recording
    • Video protectionLock key video, N+1 service protection, ANR, video loss detection and alarm
    • Searching modeSearch by time and event
    • Downloading modeQuick download, batch download, download by segment, download by merging
    • Device Maintenance
    • Management modeWeb-based GUI, serial port CLI, centralized management of multiple devices
    • Alarm modeSound, light, email, message, web page
    • Log downloadingDownload no web page
    • HDD
    • HDD Model

      Hikvision,HK7216SH,16T;

      Hikvision,HK7210SH,10T;

      Hikvision,HK728TSH,8T;

      Hikvision,HK726TSH,6T;

      Hikvision,HK724TSH,4T;

      Seagate,ST16000NM004J,16T;

      Seagate,ST10000NM018B,10T;

      Seagate,ST8000NM018B,8T;

      Seagate,ST6000NM020B,6T;

      Seagate,ST4000NM001B,4T;

    • General
    • Power supplyRedundant
    • Chassis19-inch 4U
    • Consumption(with HDDs) Working: ≤ 507 W (1729 BTU with 24 HDDs); Rated: ≤ 800 W
    • Environment temperature Working: +5 °C to +35 °C (41 °F to 95 °F); Storing: -20 °C to +70 °C (-4 °F to 158 °F)
    • Humidity Working: 20% to 80%RH (non-condensing/frozen);   Storing: 5% to 90%RH (non-condensing/frozen)
    • Dimensions(W × D × H)447 x 172 x 550 mm (17.6 x 6.8 x 21.7 in)
    • Weight (without HDDs)≤ 33.5 Kg (73.9 lb)
