DS-K1A802AMF-B

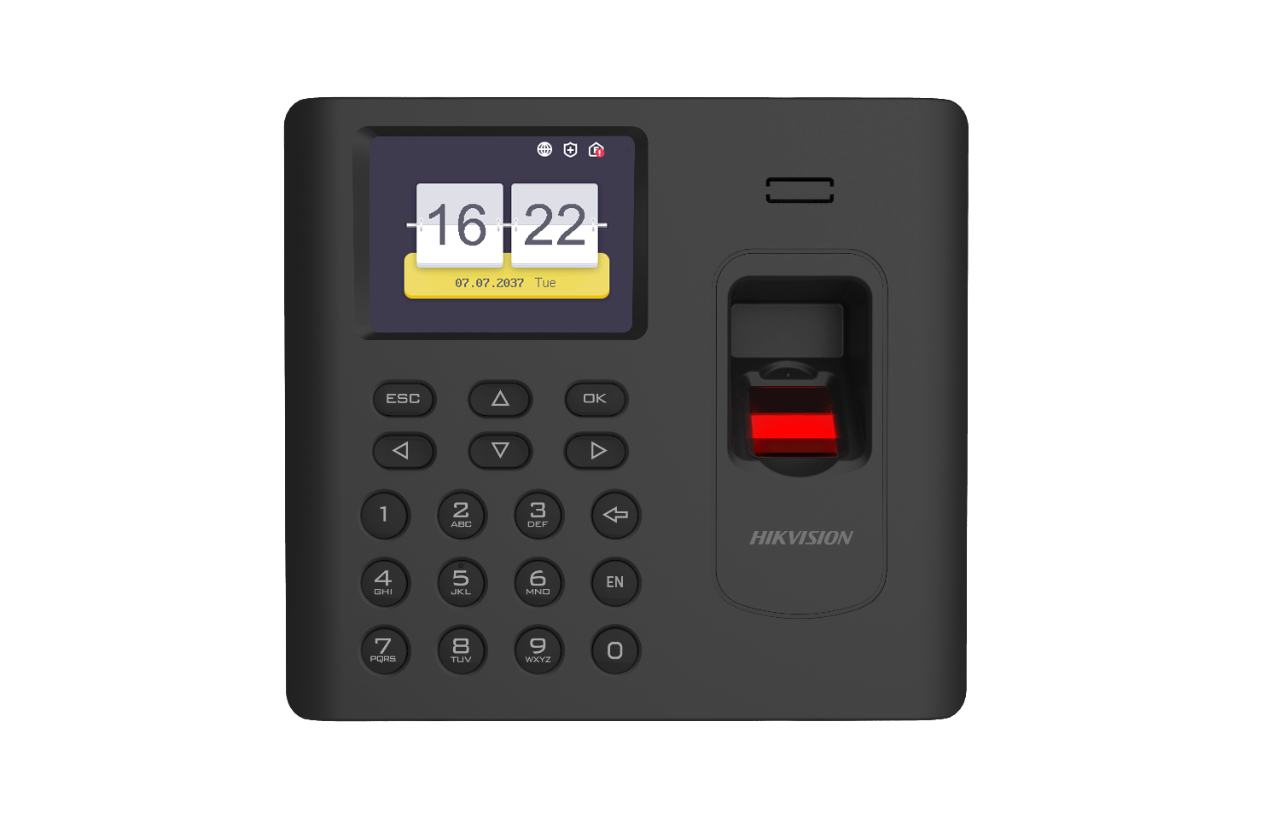

K1A802 Pro Series Fingerprint Time Attendance Terminal

  • Fingerprint Time Attandence Terminal, Built-in Mifare card reading module
  • 3,000 fingerprints, 3,000 cards and 100,000 events storage
  • Communication via TCP/TP and Wi-Fi
  • Power supply:5 VDC/1 A
  • Back-up battery supported
  • ISUP5.0, ISAPI
  • specification

    • Display
    • Screen size2.4-inch
    • TypeLCD-TFT display screen
    • Audio
    • Audio output1 loudspeaker, 1 buzzer
    • Network
    • Wired networkTCP/IP, 10/100Mbps, self-adaptive
    • Wi-FiSupport
    • Interface
    • Network interface1
    • USB1
    • Capacity
    • Card capacity3000
    • Fingerprint capacity3000
    • Event capacity100,000
    • Authentication
    • Card typeMifare 1 card
    • Card reading distance0 to 5 cm
    • Card reading duration< 1 s
    • Fingerprint moduleOptical fingerprint module
    • Fingerprint comparing mode1:1 and 1:N
    • Fingerprint recognition duration< 1 s
    • General
    • IndicatorPower/status (red/green)
    • BatterySupport
    • Power supply5 VDC/1 A
    • Working temperature-10 °C to +55 °C (14 °F to +131 °F)
    • Working humidity10% to 90% (no condensing)
    • ColorBlack
    • Dimensions140 mm × 155 mm × 30 mm (5.51″ × 6.01″ × 1.18″)
    • Application environmentIndoor
    • InstallationSurface mounting, desk stand
