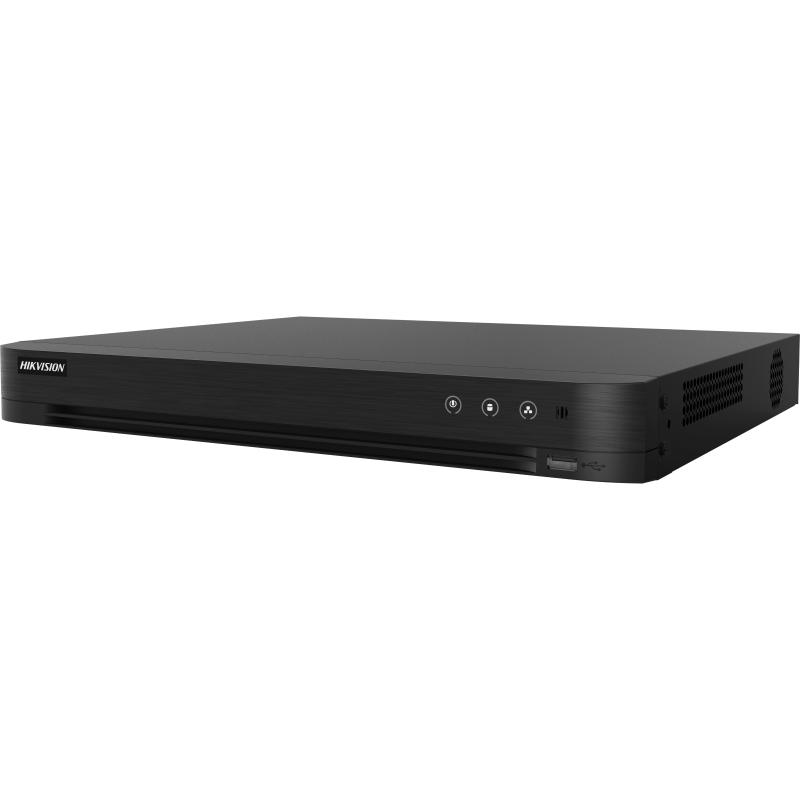

iDS-7204HTHI-M2/S

4-ch 4K 1U H.265 AcuSense DVR

  • 4 channels and 2 HDD 1U AcuSense DVR
  • False alarm reduction by human and vehicle target classification based on deep learning
  • Efficient H.265 pro+ compression technology
  • Encoding abilty up to 8 MP @ 15 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 8 network cameras can be connected.
  • specification

    • Motion Detection 2.0
    • Human/Vehicle Analysis

      Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

      Quick search by object or event type is supported;

    • Perimeter Protection
    • Line Crossing Detection/Intrusion Detection4-ch
    • Facial Detection
    • Facial Detection and CaptureFace picture detection, face picture search
    • Recording
    • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
    • Encoding Resolution8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
    • Frame Rate

      Main stream:

      8 MP@15 fps/8 MP@12 fps/3K@20 fps/5 MP@20 fps/5 MP@12 fps/3 MP@18 fps

      4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

      Sub-stream:

      WD1/4CIF/CIF@25 fps (P)/30 fps (N)

    • Video Bitrate32 Kbps to 16 Mbps
    • Dual-streamSupport
    • Stream TypeVideo, Video & Audio
    • Audio CompressionG.711u
    • Audio Bitrate64 Kbps
    • Video and Audio
    • IP Video Input

      4-ch (up to 8-ch)

      Up to 8 MP resolution

      Support H.265+/H.265/H.264+/H.264 IP cameras

    • Analog Video Input

      4-ch

      BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

    • Total Bandwidth96 Mbps
    • HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
    • CVBS InputPAL/NTSC
    • CVBS Output

      1-ch, BNC (1.0 Vp-p, 75 Ω),

      resolution: PAL: 704 × 576, NTSC: 704 × 480

    • Synchronous playback4-ch
    • VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
    • HDTVI Input8 MP@15 fps, 8 MP@12.5 fps, 3K@20 fps, 5 MP@20 fps, 5 MP@12 fps, 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
    • Video Output ModeHDMI/VGA independent output
    • AHD Input5 MP@20 fps, 5 MP@12 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
    • HDCVI Input8 MP@15 fps, 8 MP@12.5 fps, 5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
    • Audio Output1-ch, RCA (Linear, 1 KΩ)
    • Audio Input

      1-ch, RCA (2.0 Vp-p, 1 KΩ)

      4-ch via coaxial cable

    • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
    • Network
    • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
    • Remote Connection32
    • Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
    • Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
    • Auxiliary Interface
    • SATA2 SATA interface
    • CapacityUp to 10 TB capacity for each disk
    • Serial InterfaceRS-485 (half-duplex)
    • USB Interface

      Front panel: 1 × USB 2.0

      Rear panel: 1 × USB 2.0

    • Alarm In/OutN/A (optional to support)
    • General
    • Power Supply12 VDC, 3.33 A
    • Consumption≤ 10 W (without HDD)
    • Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
    • Working Humidity10% to 90%
    • Dimension (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
    • Weight≤ 2.6 kg (without HDD, 5.7 lb.)
