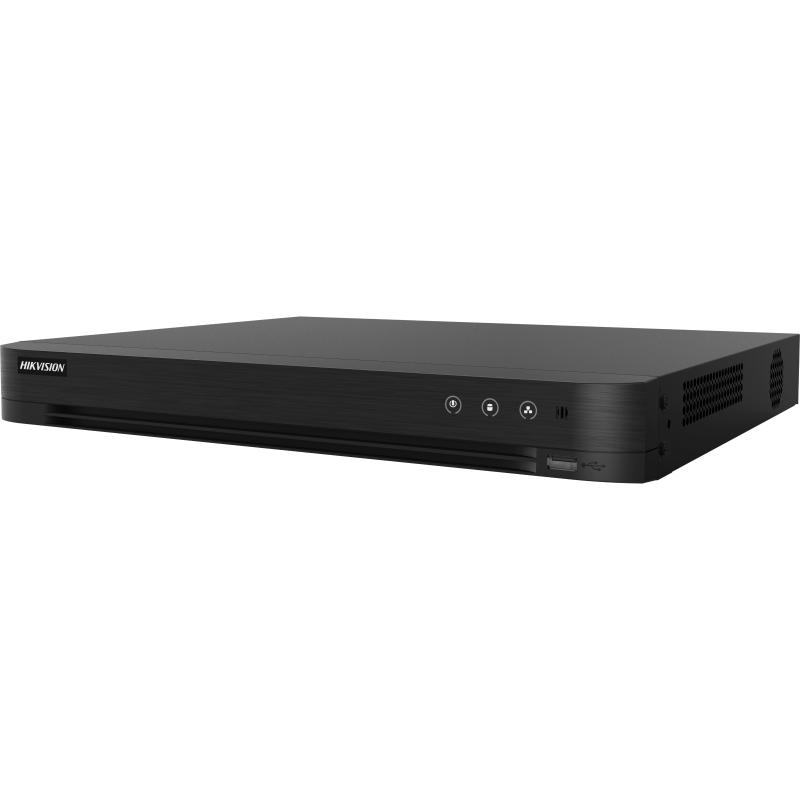

iDS-7216HUHI-M2/S

Deep learning-based motion detection 2.0 is enabled by default for all analog channels,

it can classify human and vehicle, and extremely reduce false alarms caused by objects

like leaves and lights;

Quick search by object or event type is supported;

Main stream:

8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF/CIF@25 fps (P)/30 fps (N)

8-ch (up to 24-ch)

Enhanced IP mode on: 16-ch (up to 32-ch), each up to 4 Mbps

Up to 8 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

16-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

1-ch, 4K (3840 × 2160)/30Hz,

2K (2560 × 1440)/60Hz,

1920 × 1080/60Hz,

1280 × 1024/60Hz,

1280 × 720/60Hz

HDMI/VGA simultaneous output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

HDMI/VGA simultaneous output

1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480

1-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΩ)

16-ch via coaxial cable

1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

Front panel: 1 × USB 2.0

Rear panel: 1 × USB 3.0
