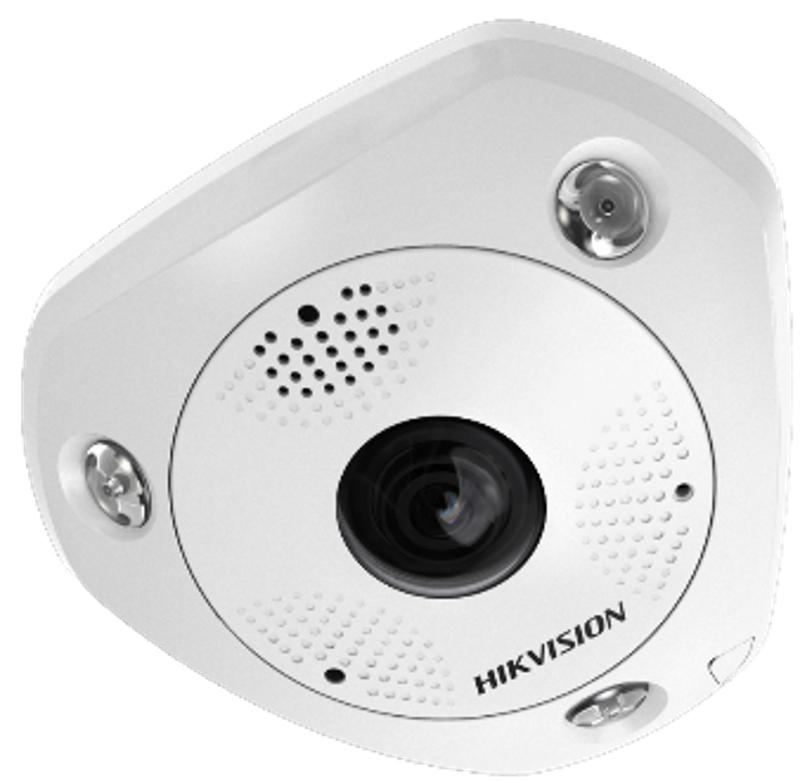

DS-2CD6365G0E-I(V)(S)

6 MP Fisheye Network Camera

360° 0-blind zone image, a fisheye network camera capable of providing a 360 degree panoramic image of its surveillance scene

Multi dewarping modes, the image can be dewarped to normal image to view intuitively

Built-in mic and speaker, it supports two-way audio to realize real-time security by hearing sound and speaking through the camera

IP66/IK10 , water resistant and vandal proof, there is no need to worry about water ingress when it is used in outdoor scenarios

specification

Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Max. Resolution3072 × 2048
Min. Illumination
Color: 0.047 Lux @ (F2.6, AGC ON),

B/W: 0.0047 Lux @ (F2.6, AGC ON), 0 Lux with IR
Shutter Time1 s to 1/100,000 s
Day & NightIR Cut Filter

Lens
Focal Length & FOV1.27 mm, horizontal FOV 180° (wall mount), 360°(ceiling mount), 360°(table mount)
Lens MountM12
ApertureF2.6

Illuminator
Supplement Light TypeIR, 3 LEDs. Each LED is independently controlled.
Supplement Light RangeUp to 15 m IR range
IR Wavelength850 nm

Video
Main Stream
50Hz: 25fps (3072 × 2048, 2048 × 2048, 1280 × 1280)

60Hz: 30fps (3072 × 2048, 2048 × 2048, 1280 × 1280)
Sub-Stream
50Hz: 25fps (720 × 720, 720 × 480)

60Hz: 30fps (720 × 720, 720 × 480)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264

Sub stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/ Main Profile /High Profile
H.265 TypeMain Profile
Scalable Video Coding (SVC)H.265 and H.264 support
Region of Interest (ROI)4 fixed regions for main stream and sub-stream

Fisheye Display
Mount Type Support table, wall, and ceiling mounting
Display Mode
18 display modes in total

Software decoding:

Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, half sphere, cylinder

Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ

Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, cylinder

Hardware decoding:

Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

Audio
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Audio Sampling Rate8 kHz/16 kHz
Environment Noise FilteringYes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live ViewUp to 20 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI
User/HostUp to 32 users. 3 user levels, administrator, operator and user
SecurityPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
Network StorageSupport microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR
ClientiVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200
Web BrowserIE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+

Image SettingsSaturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser
Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC, HLC, defog, 3D DNR
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Interface
Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port
On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
Built-in Microphone-S: 2 built-in microphoneS
Built-in Speaker-S: Yes
Audio-S: 1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm), mono sound
Alarm -S: 1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A
Reset KeyYes

Event
Basic Event Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

Audio exception detection

General
Power
12 VD ± 20%, 0.9 A, max. 11 W

-S model: two-core terminal block

Without –S model: Φ 5.5 × 2.1 mm coaxial power plug

PoE: 802.3af, Class 0, 0.3 A to 0.2 A, max. 12 W
Dimension
Without –V model: 167.4 × 152.8 × 50.1 mm (6. 6″ × 6″ × 2″)

With –V model: 167.4 × 152.8 × 55 mm (6. 6 × 6″ × 2.2″)”
WeightApprox. 1400 g (3.09 lbs)
Startup and Operating Conditions-40 °C to +60 °C (-40 °F to +140 °F), Humidity 95% or less (non-condensing)

Approval
EMC
IC: IC-VoC(ICES-003 Issue 7:2020),

FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B),

CE: CE-EMC(EN 55024:2010 +A1:2015,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013),

RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015
Safety
CB: IEC 60950-1,

UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014,

LOA: SANS IEC60950-1
EnvironmentCE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863)
ProtectionWith -V: IK10: IEC 62262:2002, IP67: IEC 60529-2013
