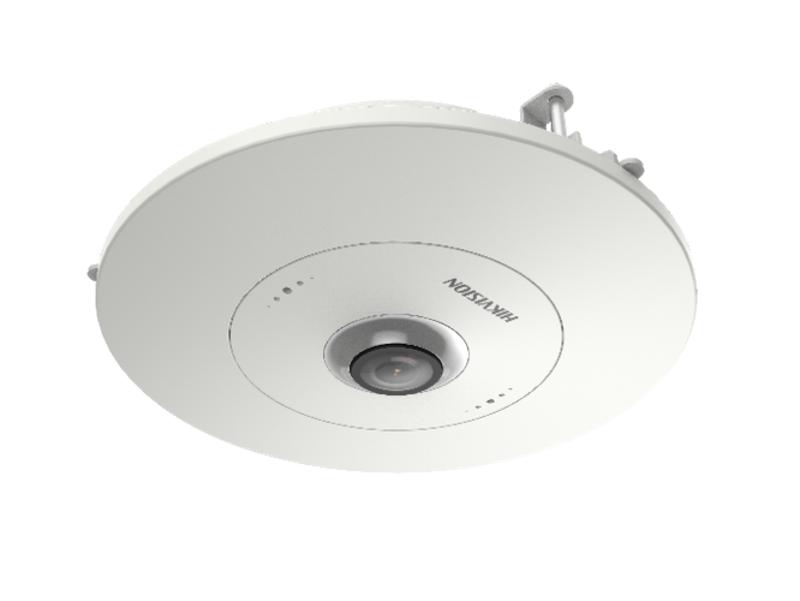

DS-2CD63C5G0E(-S)/RC

12 MP In-Ceiling Fisheye Network Camera

360° 0-blind zone image, a fisheye network camera capable of providing a 360 degree panoramic image of its surveillance scene

Multi dewarping modes, the image can be dewarped to normal image to view intuitively

Built-in mic, it supports two-way audio to realize real-time security by hearing sound and speaking through the camera

In-ceiling mounting makes the fisheye camera unnoticeable and user friendly

With up to 12 MP high resolution lens, the image is very clear even dewarped into 4 PTZ images

specification

Camera
Image Sensor1/1.7″ Progressive Scan CMOS
Max. Resolution4000 × 3000
Min. Illumination
Color: 0.06 Lux @ (F2.4, AGC ON),

B/W: 0.012 Lux @ (F2.4, AGC ON)
Shutter Time1 s to 1/100,000 s

Lens
Focal Length & FOV2 mm, 360° (In-ceiling mounting)
Lens MountM12
ApertureF 2.4

Video
Main Stream
50Hz: 20fps (4000 × 3000), 25fps (3000 × 3000, 2560 × 2560)

60Hz: 20fps (4000 × 3000), 30fps (3000 × 3000, 2560 × 2560)
Sub-Stream
50Hz: 20fps (720 × 720, 640 × 480)

60Hz: 20fps (720 × 720, 640 × 480)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264

Sub stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Scalable Video Coding (SVC)H.265 and H.264 support
Region of Interest (ROI)4 fixed regions for main stream and sub-stream

Fisheye Display
Mount Type Support in-ceiling mounting
Display Mode
14 display modes in total

Software decoding:

Fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, half sphere, cylinder

Hardware decoding:

Fisheye view, 180 panorama view, panorama view, 4PTZ, 4PTZ fusion, fisheye + 3PTZ

Audio
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Audio Sampling Rate8 kHz/16 kHz
Environment Noise FilteringYes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live ViewUp to 20 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI
User/HostUp to 32 users. 3 user levels, administrator, operator and user
SecurityPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
Network StorageSupport microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR
ClientiVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200
Web BrowserIE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+

Image SettingsSaturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser
Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC, HLC, defog, 3D DNR
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Interface
Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port
On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
Built-in Microphone-S: 2 built-in microphones
Audio-S: 1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm), mono sound
Alarm -S: 1-ch alarm input, max. 12 V; 1-ch alarm output, max 12 VDC, 0.5 A
Reset KeyYes

Event
Basic Event Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

Audio exception detection

General
Power12 VDC±20%, PoE (802.3af, class 3), two-core terminal block
DimensionØ165 × 69 mm (6. 5″ × 2.6″)
WeightApprox. 480 g (1.1 lbs)
Startup and Operating Conditions-10 °C to +40 °C (14 °F to +104 °F), Humidity 95% or less (non-condensing)
General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval
EMC
IC: IC-VoC(ICES-003 Issue 7:2020),

FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B),

KC: KN32:2015,KN35:2015,

CE: CE-EMC(EN 50130-4:2011+A1:2014,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013),

RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015
Safety
CB: IEC 60950-1,

UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014,

LOA: SANS IEC60950-1,

BIS: IS 13252(Part 1)2010+A1:2013+A2:2015
EnvironmentCE: CE-RoHS (RoHS Directive 2011/65/EU+2015/863)
