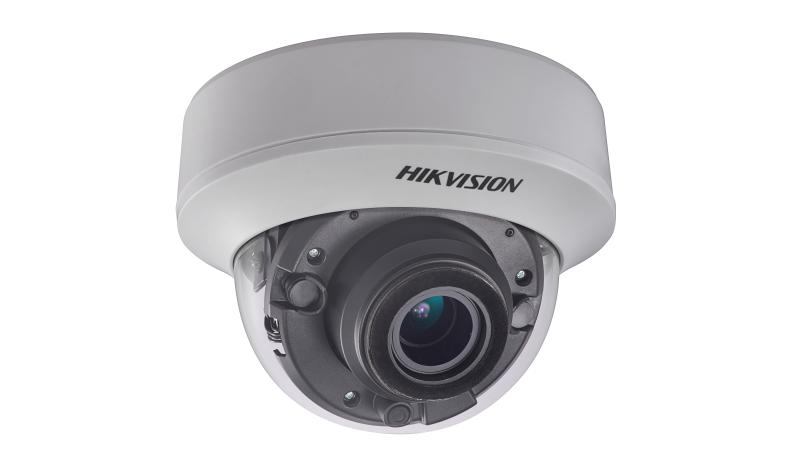

DS-2CE56D8T-ITZE

2 MP Ultra Low Light Indoor PoC Motorized Varifocal Dome Camera

2 MP high performance dome camera

Strong night performance, capturing images in ultra-low light down to 0.003 lux

Clear imaging even against strong back lighting due to 130 dB true WDR technology

3D DNR technology delivers clean and sharp images

Lens focuses automatically when zooming in or out

EXIR 2.0: advanced infrared technology with 60 m IR distance

Transmits both HD video and power over the same coaxial cable

specification

Camera
Image Sensor2.0 megapixel progressive scan CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & NightIR Cut Filter
Angle AdjustmentPan: 0 to 340°, Tilt: 0 to 75°, Rotation: 0 to 355°
Signal SystemPAL/NTSC
Slow ShutterMax. 16 times

Lens
Lens Type2.8 mm to 12 mm motorized vari-focal lens
Focal Length & FOVHorizontal FOV: 32.1° to 103°
Lens MountΦ14

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 20 m
Smart Supplement LightYes

Image SettingsAGC;Sharpness;Mirror;Brightness
Frame Rate
PAL: 1080P@25fps

NTSC: 1080P@30fps
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)≥120 dB
Image EnhancementWDR;BLC
Privacy Mask4 programmable privacy masks
Noise Reduction3D DNR
White BalanceAuto/Manual

Interface
Video Output1 HD analog output

Event
Motion Detection4 programmable motion areas

General
Power12 VDC ±25%/PoC.at, max. 7 W
MaterialPlastic
Dimension136 mm × 102 mm (5.35″ × 4.02″)
WeightApprox. 600 g (1.32 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
CommunicationHIKVISION-C
LanguageEnglish

Approval
ProtectionIP50
