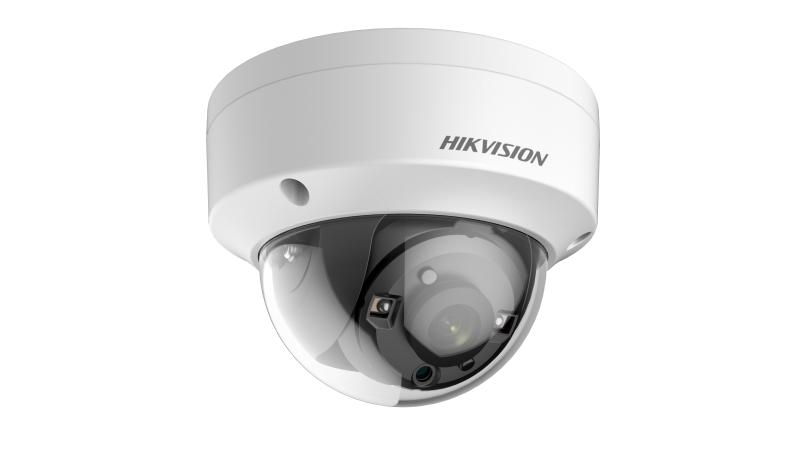

DS-2CE57H8T-VPITF

5 MP Ultra Low Light Vandal Fixed Dome Camera

5 MP high performance dome camera

Strong night performance, capturing images in ultra-low light down to 0.003 lux

Clear imaging even against strong back lighting due to 130 dB true WDR technology

3D DNR technology delivers clean and sharp images

EXIR 2.0: advanced infrared technology with 30 m IR distance

Water and dust resistant (IP67) and vandal proof (IK10)

4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

specification

Camera
Image Sensor5 MP CMOS
Max. Resolution2560 (H) × 1944 (V)
Min. IlluminationColor: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
Signal SystemPAL/NTSC

Lens
Lens Type2.8 mm, 3.6 mm and 6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 98°

3.6 mm, horizontal FOV: 78°

6 mm, horizontal FOV: 48°
Lens MountM12

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 30 m
Smart Supplement LightYes

Image SettingsBrightness;Sharpness;Mirror;Smart IR;AGC
Frame Rate
TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps

AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps

CVI: 4 MP@25fps, 4 MP@30fps

CVBS: PAL, NTSC
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)≥130 dB
Image EnhancementWDR;BLC
Privacy Mask4 programmable privacy masks
Noise Reduction3D DNR
White BalanceAuto/Manual

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS;1 HD analog output

Event
Motion Detection4 programmable motion areas

General
Power
12 VDC ± 25%, max. 5.8 W

*You are recommended to use one power adapter to supply the power for one camera.
MaterialMetal
DimensionΦ 110.8 mm × 84.7 mm (Φ 4.4″ × 3.3″)
WeightApprox.500 g (1.10 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
CommunicationHIKVISION-C
LanguageEnglish

Approval
ProtectionIP67, IK10
