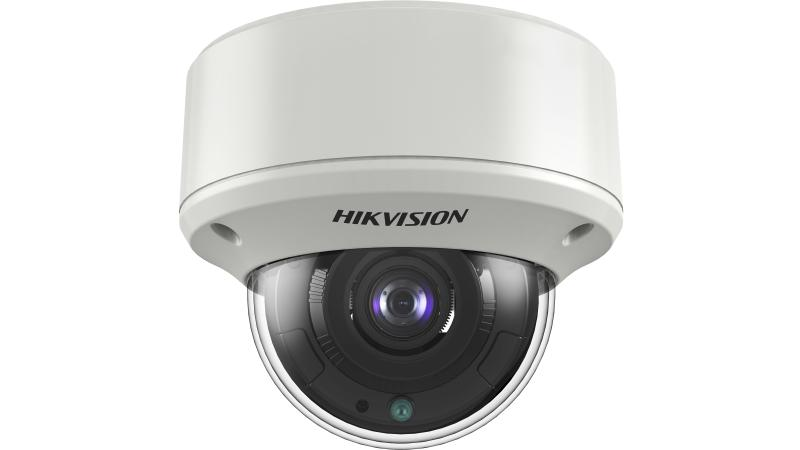

DS-2CE59H8T-AVPIT3ZF

5 MP Ultra Low Light Vandal Motorized Varifocal Dome Camera

5 MP high performance dome camera

Strong night performance, capturing images in ultra-low light down to 0.003 lux

Clear imaging even against strong back lighting due to 130 dB true WDR technology

3D DNR technology delivers clean and sharp images

Lens focuses automatically when zooming in or out

EXIR 2.0: advanced infrared technology with 60 m IR distance

Water and dust resistant (IP67) and vandal proof (IK10)

4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

specification

Camera
Image Sensor5 megapixel progressive scan CMOS
Max. Resolution2560 (H) × 1944 (V)
Min. IlluminationColor: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s

NTSC: 1/30 s to 1/50,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355°
Signal SystemPAL/NTSC

Lens
Lens Type2.7 mm to 13.5 mm motorized varifocal lens
Focal Length & FOV92.3° to 29.3°
Lens MountΦ 14

Image SettingsBrightness, Sharpness, 3D DNR, Mirror, Smart IR
Frame RateTVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps,AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps,CVI: 4 MP@25fps, 4 MP@30fps,CVBS: PAL, NTSC
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)≥ 130 dB
Image EnhancementBLC
Privacy Mask4 programmable privacy masks
Noise ReductionLevel 1 to 9
White BalanceAuto/Manual
AGCYes

Interface
Video Output1 HD analog output, TVI/AHD/CVI/CVBS

Event
Motion Detection4 programmable areas

General
MaterialMetal
DimensionΦ 145.2 mm × 124.1 mm (Φ 7.1″ × 4.9″)
WeightApprox. 640 g (1.41 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
LanguageEnglish
Power Supply-A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC
Consumption-A: Max. 8 W
IR RangeUp to 60 m

Approval
ProtectionIP67, IK10
