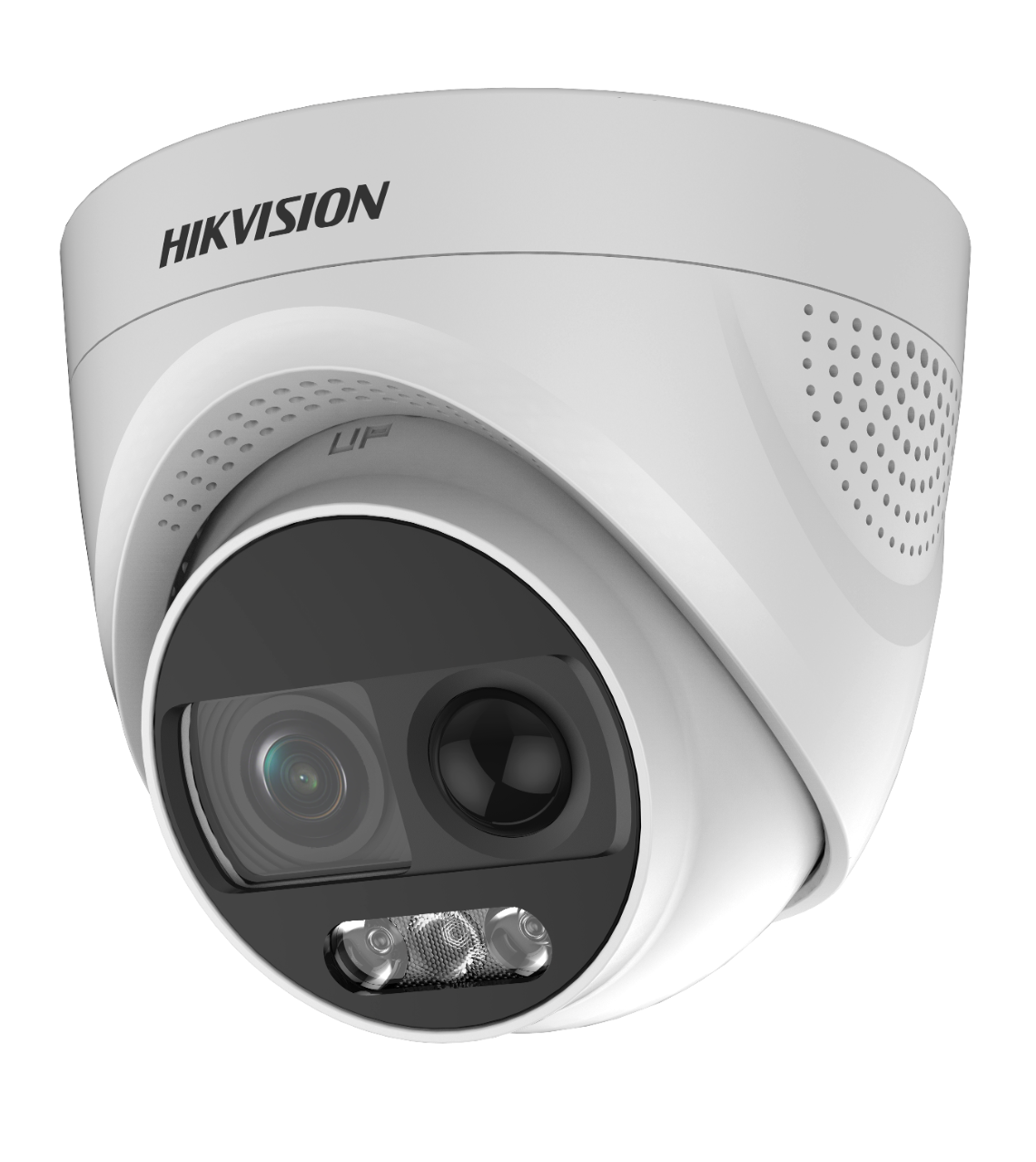

DS-2CE72DFT-PIRXOF

2 MP ColorVu PIR Siren Fixed Turret Camera

2 MP PIR siren full time color turret camera

PIR detection, red and blue flashlight alarm, audio alarm and alarm out to warn off intruders in real time

24/7 full color imaging

Warm supplemental light with 20 m range

Clear imaging even against strong back lighting due to 130 dB true WDR technology

3D DNR technology delivers clean and sharp images

Water and dust resistant (IP67)

4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

specification

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s
Day & NightColor
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Signal SystemPAL/NTSC

Lens
Lens Type3.6 mm, 6 mm fixed lens
Focal Length & FOV
3.6 mm, horizontal FOV: 83.0°, vertical FOV: 44.4°, diagonal FOV: 98.0°

6 mm, horizontal FOV: 51.0°, vertical FOV: 28.5°, diagonal FOV: 58.7°
Lens MountM16

Illuminator
Supplement Light RangeUp to 20 m

Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness, Sharpness, Mirror, Smart Light, Defective Pixel Correction
Frame Rate
TVI: 1080p@30fps, 1080p@25fps

AHD: 1080p@30fps, 1080p@30fps

CVI: 1080p@30fps, 1080p@25fps

CVBS: PAL/NTSC
Wide Dynamic Range (WDR)≥130 dB
Image EnhancementBLC, HLC
White BalanceATW/MANUAL
White LightAUTO/OFF
AGCSupport

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
Material
Enclosure: Plastic

Main Body: Metal
DimensionΦ 109.82 mm × 93.66 mm (Φ 4.32″ × 3.7″)
WeightApprox. 390 g ( 0.86 lb.)
Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply
12 VDC ± 25%

*You are recommended to use one power adapter to supply the power for one camera.
Consumption
Max. 6.6 W

Approval
ProtectionIP67
