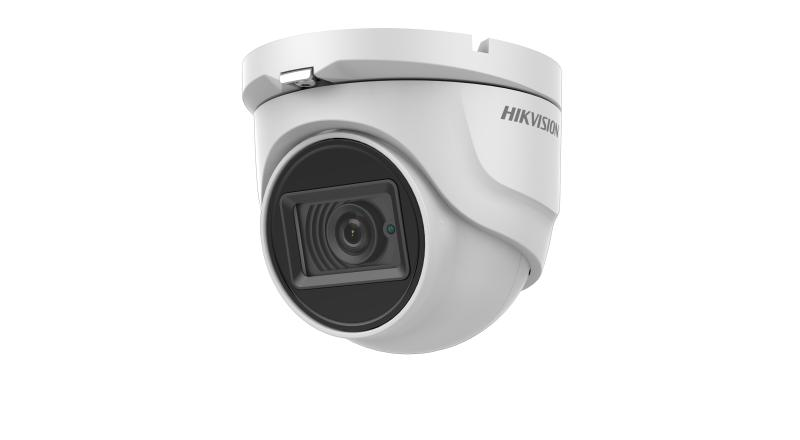

DS-2CE76U7T-ITMF

4K Ultra Low Light Fixed Turret Camera

8 MP high performance turret camera

Strong night performance, capturing images in ultra-low light down to 0.003 lux

Clear imaging even against strong back lighting due to 130 dB true WDR technology

3D DNR technology delivers clean and sharp images

EXIR 2.0: advanced infrared technology with 30 m IR distance

Water and dust resistant (IP67)

4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

specification

Camera
Image Sensor8.29 MP CMOS
Max. Resolution3840 (H) × 2160 (V)
Min. Illumination0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s
Day & NightICR
Angle AdjustmentPan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
Signal SystemPAL/NTSC

Lens
Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV102° (2.8 mm), 79° (3.6 mm), 51° (6 mm)
Lens MountM16

Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness, Sharpness, Mirror, Smart IR
Frame RateTVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: 8MP@12.5fps, 8MP@15fps CVI: 8MP@12.5fps, 8MP@15fps CVBS: P/N
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)≥130 dB
Image EnhancementBLC, HLC
White BalanceAuto/Manual
AGCSupport

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
MaterialMetal
Dimension90 mm × 79.37 mm (3.54″ × 3.12″)
WeightApprox. 310 g (0.68 lb.)
Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
ConsumptionMax. 4.2 W
IR RangeUp to 30 m

Approval
ProtectionIP67
