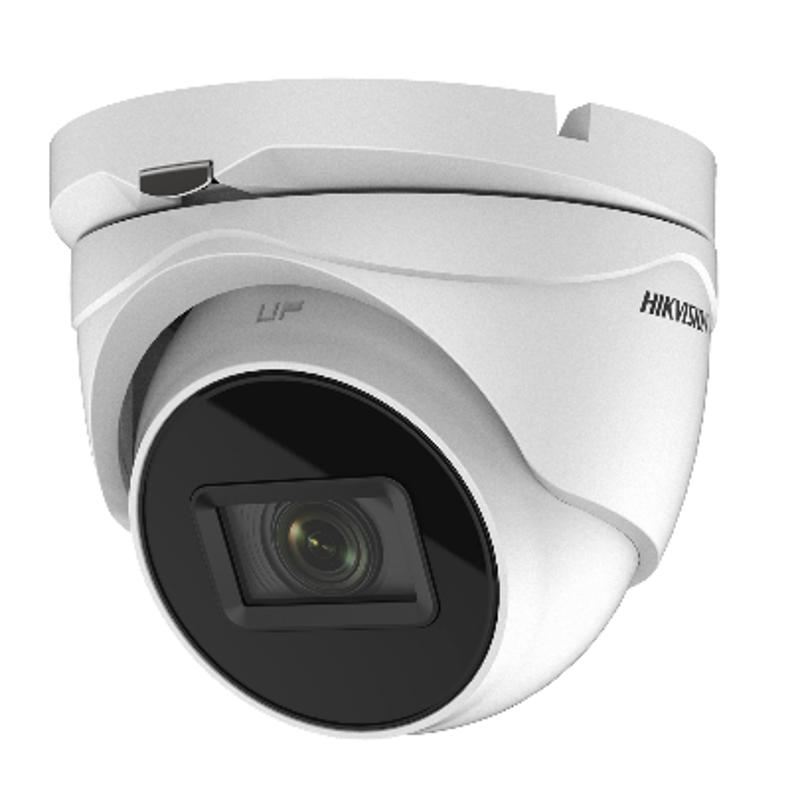

DS-2CE79U7T-AIT3ZF

4K Ultra Low Light Motorized Varifocal Turret Camera

8 MP high performance turret camera

Strong night performance, capturing images in ultra-low light down to 0.003 lux

Clear imaging even against strong back lighting due to 130 dB true WDR technology

3D DNR technology delivers clean and sharp images

Lens focuses automatically when zooming in or out

EXIR 2.0: advanced infrared technology with 60 m IR distance

Water and dust resistant (IP67)

4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

specification

Camera
Image Sensor8.29 MP CMOS
Max. Resolution3840 (H) × 2160 (V)
Min. Illumination0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/12.5s to 1/50, 000 s

NTSC: 1/15 s to 1/50, 000 s
Day & NightICR
Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
Signal SystemPAL/NTSC

Lens
Lens Type2.7 mm to 13.5 mm motorized varifocal lens
Focal Length & FOV108.1° to 45.6°
Lens MountΦ14

Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness, Sharpness, Mirror, Smart IR
Frame Rate
TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps,

1080P@30fps

AHD: 8MP@12.5fps, 8MP@15fps

CVI: 8MP@12.5fps, 8MP@15fps

CVBS: P/N
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)≥130 dB
White BalanceATW/MANUAL
AGCSupport

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
MaterialMetal
Dimension134.3 mm × 123.86 mm × 110.24 mm (5.29″ × 4.88″ × 4.34″)
WeightApprox. 620 g (1.37 lb.)
Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC ± 20%, 24 VAC ± 20%
Consumption
Max. 11 W
IR RangeUp to 60 m

Approval
ProtectionIP67
