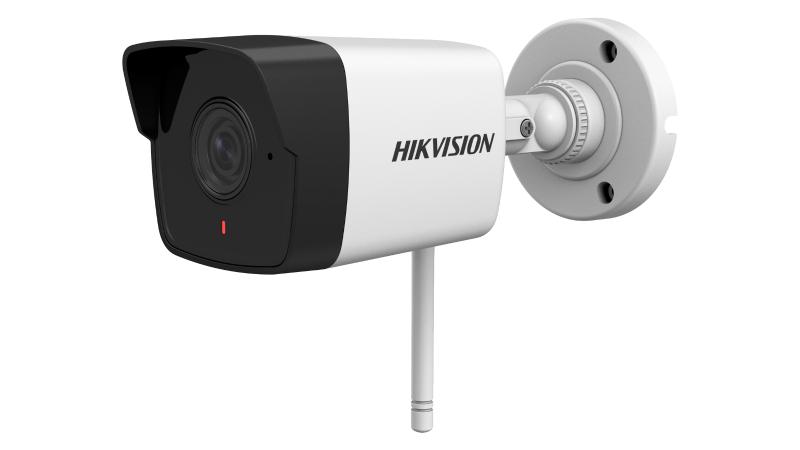

DS-2CV1021G0-IDW

2 MP Outdoor Fixed Bullet Network Camera with Build-in Mic

High quality imaging with 2 MP resolution

Efficient H.265+ compression technology

Clear imaging even with strong back lighting due to DWDR technology

Up to 128 GB SD card slot for storage

Wi-Fi connection with Hik-Connect directly is not possible

Water and dust resistant (IP66)

specification

Smart Features
Alarm TriggerMotion detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Camera
Image Sensor1/2.7″ Progressive Scan CMOS
Min. IlluminationColor: 0.028 Lux @ (F2.0, AGC ON)
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Angle AdjustmentPan: 0° to 360°, tilt: -90° to 90°, rotate: 0° to 90°
WDRDWDR
Day & NightIR Cut Filter

Lens
ApertureF2.0
FocusFixed
FOV
2.8 mm, horizontal FOV: 114.5°, vertical FOV: 62°, diagonal FOV: 135.5°

4 mm, horizontal FOV: 86°, vertical FOV: 46.5°, diagonal FOV: 102.5°
Lens MountM12
Focal length2.8/4 mm

Network
Network StorageSupport micro SD/SDHC/SDXC card (max. 256 GB), local storage and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Alarm TriggerMotion detection, illegal login
ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour
APIISAPI
Simultaneous Live ViewUp to 6 channels
User/Host
Up to 32 users

3 levels: Administrator, Operator and User
Client
Wired network: Hik-Connect, iVMS-4200

Wi-Fi: iVMS-4200

*Wi-Fi connection with Hik-Connect directly is not possible.
Web Browser
Plug-in required live view: IE8, IE9, IE10, IE11

Local service: Chrome 57.0+, Firefox 52.0+
General FunctionAnti-flicker, heartbeat, mirror, password protection, password reset via e-mail
Firmware VersionV5.5.101

Video
Max. Resolution1920 × 1080

Audio
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz

Interface
Reset ButtonYes
On-board storageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
Audio1 Built-in mic, mono sound

Max. Resolution1920 × 1080
Main Stream
50Hz: 25 fps (1920 × 1080, 1280 × 720)

60Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50Hz: 25 fps (640 × 360)

60Hz: 30 fps (640 × 360)
Image EnhancementBLC, HLC, 3D DNR
Day/Night SwitchDay, night, auto, scheduled
Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

General
Operating Conditions-30 °C to +60 °C (-22°F to +140 °F), humidity 95% or less (non-condensing)
Power supply12 VDC ± 25%, Ø5.5 mm coaxial power plug
Power Consumption and Current12 VDC, 0.4 A, max. 5 W
MaterialFront cover: metal, back cover: plastic
Dimensions
Camera: 177.6 mm × 67.8 mm × 66.2 mm (7″ × 2.7″ × 2.6″)

With package: 264 mm × 129 mm × 120 mm (10.4 × 5.1″ × 4.7″)”
Weight
Camera: approx. 270 g (0.6 lb.)

With package: approx. 470 g (1 lb.)

Approval
Protection Ingress protection: IP66 (IEC 60529-2013)

Compression Standard
Video Compression
Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264
H.264+Main stream supports
H.265+Main stream supports
H.264 TypeBaseline Profile/Main Profile
H.265 TypeBaseline Profile
Video Bit Rate32 Kbps to 8 Mbps
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32 to 160Kbps(MP2L2)

IR
IR RangeUp to 30 m
Wavelength850 nm

Wi-Fi (-W)
Wireless StandardsIEEE 802.11b/g/n
Frequency Range2.4 GHz to 2.4835 GHz
Transfer Rates
11b: 11 Mbps

11g: 54 Mbps

11n: up to 150 Mbps
Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Channel Bandwidth20 MHz/40 MHz
Wireless RangeUp to 80 m (The performance varies based on actual environment.)
Protocols
802.11b: CCK, DQPSK, DBPSK

802.11g/n: 64-QAM, 16-QAM, QPSK, BPSK
