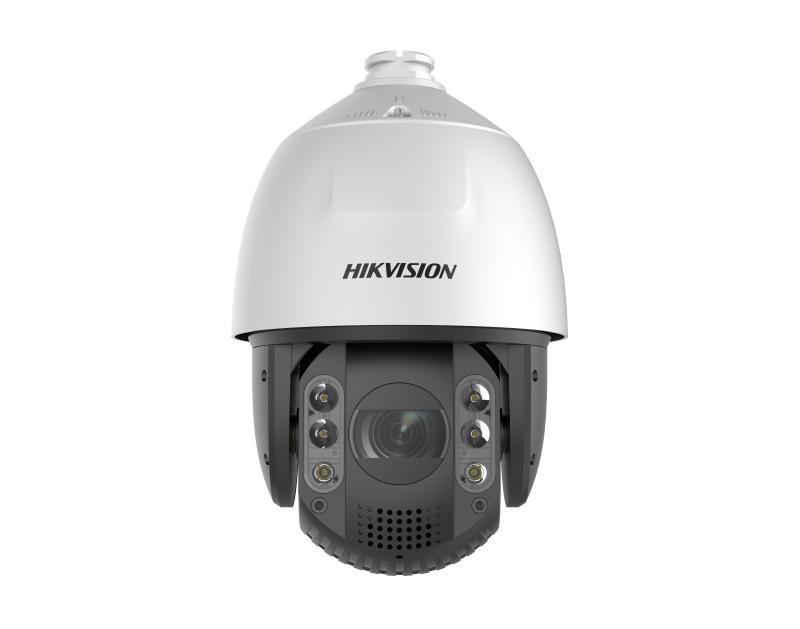

DS-2DE7A825IW-AEB(T5)

7-inch 8 MP 25X Powered by DarkFighter IR Network Speed Dome

  • 1/1.8″ progressive scan CMOS
  • High quality imaging with 8 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Audio visual alarm: The white flashing light and audible warning can be triggered by certain events
  • 25× optical zoom and 16× digital zoom provide close up views over expansive areas
  • Expansive night view with up to 200 m IR distance
  • Focuses on human and vehicle targets classification based on deep learning
  • Face capture: Up to 5 faces captured at the same time
  • specification

    • Camera
    • Image Sensor1/1.8″ progressive scan CMOS
    • Max. Resolution3840 × 2160
    • Min. IlluminationColor: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IR
    • Shutter Speed1/1 s to 1/30000 s
    • Slow ShutterYes
    • Day & NightIR cut filter
    • Zoom25x optical, 16x digital
    • DORI

      Detect (25px/m): 2046.9 m

      Observe (63px/m): 812.3 m

      Recognize (125px/m): 409.4 m

      Identify (250px/m): 204.7 m

    • Lens
    • Focal Length5.9 mm to 147.5 mm
    • Zoom SpeedApprox. 4.8 s
    • FOV

      Horizontal field of view: 50.8° to 2.6° (wide-tele),

      Vertical field of view: 29.4° to 1.5° (wide-tele),

      Diagonal field of view:57.4° to 3° (wide-tele)

    • ApertureMax. F1.5
    • FocusAuto, semi-auto, manual, rapid focus
    • Illuminator
    • Supplement Light RangeIR Distance: up to 200 m
    • Supplement Light TypeIR
    • PTZ
    • Movement Range (Pan)360°
    • Movement Range (Tilt)-15° to 90° (auto flip)
    • Pan SpeedPan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
    • Tilt SpeedTilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
    • Proportional PanYes
    • Presets300
    • Patrol Scan8 patrols, up to 32 presets for each patrol
    • Pattern Scan4 pattern scans
    • Power-off MemoryYes
    • Park ActionPreset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan
    • 3D PositioningYes
    • PTZ Status DisplayYes
    • Preset FreezingYes
    • Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
    • Video
    • Main Stream

      50 Hz: 25 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);

      60 Hz: 24 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

    • Sub-Stream

      50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);

      60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240)

    • Third Stream

      50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);

      60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

    • Video Compression

      Main stream: H.265+/H.265/H.264+/H.264

      Sub-stream: H.265/H.264/MJPEG

      Third stream: H.265/H.264/MJPEG

    • Video Bit Rate32 kbps to 16384 kbps
    • H.264 TypeBaseline Profile/Main Profile/High Profile
    • H.265 TypeMain Profile
    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Region of Interest (ROI)8 fixed regions for each stream
    • Audio
    • Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
    • Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC)
    • Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
    • Environment Noise FilteringYes
    • Network
    • Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
    • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
    • APIOpen Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
    • Simultaneous Live ViewUp to 20 channels
    • User/HostUp to 32 users, 3 user levels: administrator, operator, and user
    • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
    • ClientiVMS-4200, HikCentral Pro, Hik-Connect
    • Web BrowserIE11, Chrome 57+, Firefox 52+, Safari 11+
    • Image
    • Day/Night SwitchDay, Night, Auto, Schedule
    • Image EnhancementBLC, HLC, 3D DNR
    • Wide Dynamic Range (WDR)120 dB
    • DefogDigital defog
    • Image StabilizationEIS
    • Regional ExposureYes
    • Regional FocusYes
    • Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
    • Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
    • SNR> 52 dB
    • Interface
    • Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
    • On-board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
    • Alarm2 inputs, 1 output
    • Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
    • ResetYes
    • Built-in Speaker1 built-in speaker with effective distance reaching max. 30 meters
    • Event
    • Basic EventMotion detection, video tampering alarm, exception, alarm input and output
    • Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
    • Smart TrackingManual tracking, auto-tracking
    • Alarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
    • Deep Learning Function
    • Face Capture

      Detects up to 5 faces simultaneously.

      Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face

    • Perimeter Protection

      Line crossing, intrusion, region entrance, region exiting

      Support alarm triggering by specified target types (human and vehicle)

    • General
    • Power

      24 VAC, max. 42 W (including max. 18 W for IR and max. 10 W for heater);

      Hi-PoE

    • Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
    • DemistYes
    • MaterialADC12
    • DimensionØ 220 mm × 363.3 mm (Ø 8.66″ × 13.91″)
    • WeightApprox. 5 kg (11.03 lb.)
    • Approval
    • ProtectionIP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection
    • EMCUL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
    • SafetyUL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
    • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
