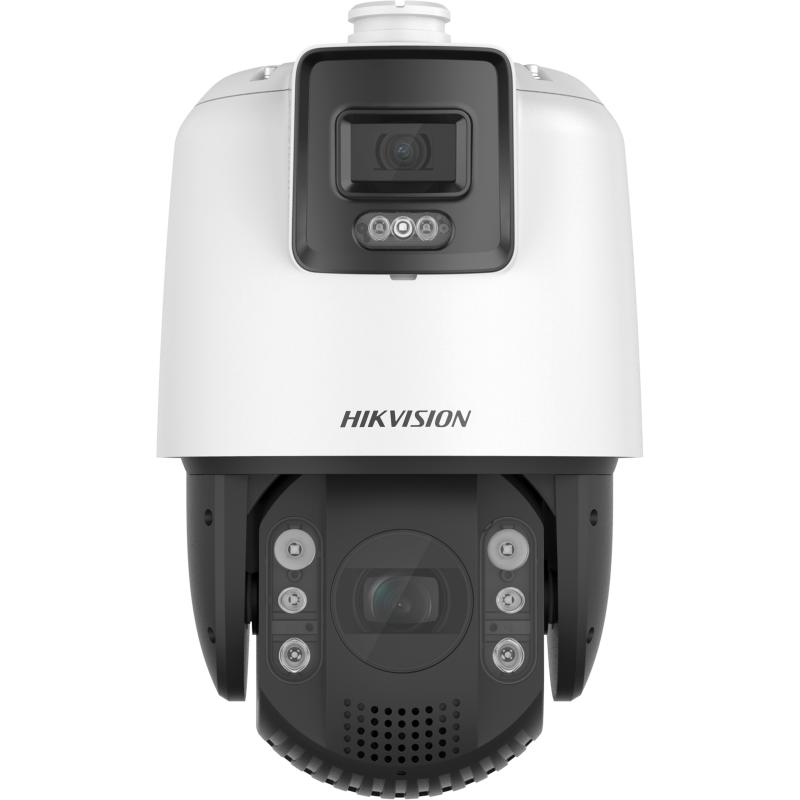

DS-2SE7C124IW-AE(32x/4)(S5)

TandemVu 7-inch 2 MP 32X Powered by DarkFighter IR Network Speed Dome

1/2.8″ Progressive Scan CMOS

Up to 2560× 1440@30fps resolution

Min. illumination: [PTZ channel]：Color：0.005Lux @ (F1.2，AGC ON),B/W：0.001Lux @ (F1.2，AGC ON) ,[panoramic channel]：0.005Lux @(F1.6,AGC ON) ,0 Lux with IR

32× optical zoom, 16× digital zoom

WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure, Regional Focus, Rapid Focus

Up to 200 m IR distance

24 VAC & Hi-PoE

Support H.265+/H.265 video compression

Supports audio visual alarm. The white flashing light and audible warning can be triggered by certain events, and the warning content is selectable

specification

Camera
Image Sensor[panoramic channel]: 1/2.8″ Progressive Scan CMOS; [PTZ channel]: 1/2.8″ progressive scan CMOS
Min. Illumination[PTZ channel]: Color: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.001 Lux @ (F1.2, AGC ON); [panoramic channel]: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed1/1 s to 1/30000 s
Slow Shutteryes
Focussemi-auto;manual;auto
Day & NightICR
Day/Night Switchday, night, auto, scheduled-switch
BLCyes
WDR120 dB WDR
HLCyes
3D DNRyes
Defogyes
EISyes
Regional Exposureyes
Regional Focusyes
Image Settingssaturation;brightness;contrast;sharpness
White BalanceMWB;indoor;outdoor;fluorescent lamp;sodium lamp;ATW;auto;Locked WB;Locked WB
Digital Zoom16x
Optical Zoom32x
Privacy Maskmosaic mask ;mask color configurable;polygon region ;[panoramic channel]：up to 24 masks [PTZ channel]:up to 8 masks;[panoramic channel] 8 masks, [PTZ channel] 24 masks
SNR＞52dB

Lens
Focal Length[panoramic channel]: 4 mm; [PTZ channel]: 4.8 to 153 mm, 32 ×
Zoom Speedapprox. 4.2 s
FOV
[panoramic channel]: Horizontal field of view: 79°, Vertical field of view: 42.4°;

[PTZ channel]:

Horizontal field of view: 58.4° to 2.14° (wide-tele),

Vertical field of view: 33.8° to 1.2° (wide-tele),

Diagonal field of view: 65.6° to 2.46° (wide-tele)
Aperture[panoramic channel]: F1.6; [PTZ channel]: F1.2

Illuminator
IR Distance200 m

PTZ
Movement Range (Pan)360°
Movement Range (Tilt)-15° to 90° (auto flip)
Pan Speedpan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
Tilt Speedtilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Zoomyes
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans
Power-off Memoryyes
Park Actionpreset;patrol scan;pattern scan;auto scan;tilt scan;random scan;frame scan;panorama scan
3D Positioningyes
PTZ Status Displayyes
Preset Freezingyes
Scheduled Taskpreset;auto scan;random scan;frame scan;patrol scan;pattern scan;panorama scan;tilt scan;dome reboot;dome adjust;aux output

Video
Max. Resolution2560 × 1440
Stream Typemain stream;sub-stream;third stream
Main Stream
[panoramic channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);60 Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

[PTZ channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);60 Hz: 30 fps ( 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
[panoramic channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

[PTZ channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
[panoramic channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

[PTZ channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionH.265;H.264;MJPEG
Video Bit Rate32 kbps to 16384 kbps
H.264 TypeBaseline Profile;Main Profile;High Profile;baseline profile;main profile;high profile
H.265 TypeMain Profile;main profile
H.264+yes
H.265+yes
SVCyes
ROI主码流、子码流、第三码流支持8块ROI区域;动态跟踪ROI;main stream, sub-stream and third stream respectively support eight fixed areas

Audio
Audio CompressionG.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM
Audio Bit rateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps;192kbps
Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Environment Noise Filteringyes

Smart Features
Face Captureno
Basic Eventmotion detection;alarm input;alarm output;video tampering alarm;exception
Smart Eventintrusion detection;region entrance detection;region exiting detection;audio exception detection;line crossing detection
Smart Trackingmanual tracking;event tracking
Smart RecordANR;Dual-VCA
Alarm Linkagesmart tracking;preset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP

Network
Network StorageNAS (NFS, SMB/ CIFS); ANR;ANR
ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour
API ISAPI;Hikvision SDK;ONVIF (Profile S, Profile G, Profile T);ISUP
Simultaneous Live View20
User/Host32
Smooth Streamingyes
Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
ClientiVMS-4200
Web BrowserIE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+

Interface
Communication InterfaceRJ45, self-adaptive 10M/100M Ethernet port
On-board Storage support microSD/microSDHC/microSDXC cards;up to 256 GB
Alarm Input2 alarm inputs
Alarm Output1 alarm output
Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output1 audio output, line level, impedance: 600 Ω

General
Power24 VAC, Hi-PoE
Power Consumption and CurrentMax. 60 W, including max. 3.7 W for heater and max. 16 W for supplement light
Operating Conditions-30℃ to 65℃ (-22°F to 149°F) ;;humidity: ≤ 90%
Resetyes
DemistDemist by heating the glass
MaterialADC 12, PC, PC+10%GF
DimensionsØ 220.0 mm × 373.3 mm (Ø 8.7″ × 14.7″)
WeightApprox. 6 kg (13.23 lb.)

Approval
Protection IP66 Standard, IK10 (excluding glass window), 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
