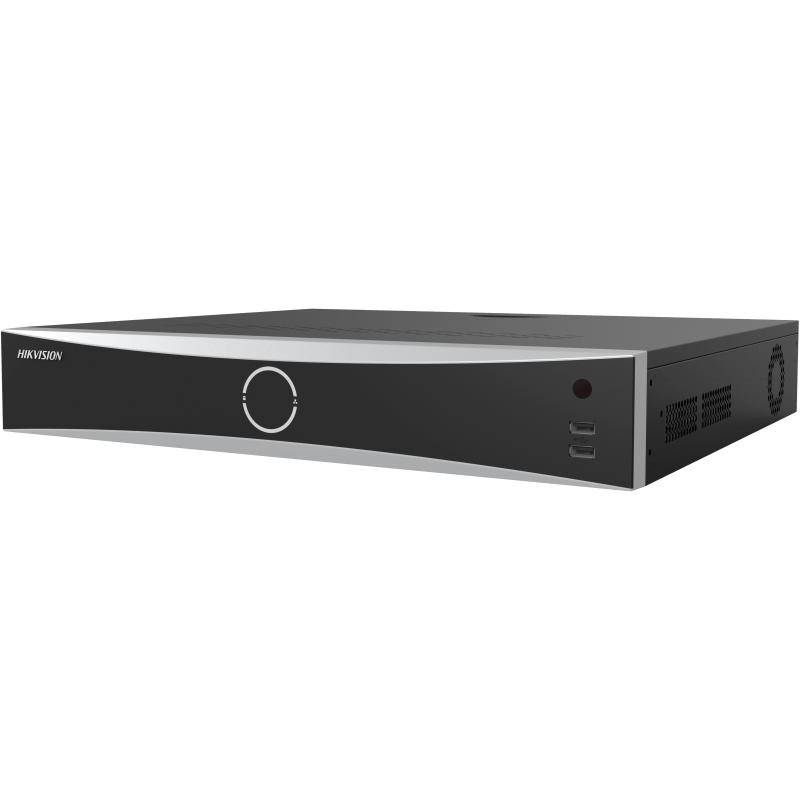

DS-7716NXI-I4/16P/S

16-ch 1.5U 16 POE AcuSense 4K NVR

H.265+/H.265/H.264+/H.264 video formats

Intelligent analytics based on deep learning algorithm

Up to 4-ch perimeter protection

Up to 1-ch facial recognition for video stream, or up to 4-ch facial recognition for face picture

Up to 16-ch IP camera inputs

Plug & Play with 16 Power-over-Ethernet (PoE) interfaces

Up to 16-ch 1080p decoding capability

Up to 160 Mbps incoming bandwidth

specification

Facial Recognition
Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
Face Picture LibraryUp to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB)
Facial Detection and Analytics Performance1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)
Face Picture Comparison4-ch face picture comparison alarm

Motion Detection 2.0
Human/Vehicle Analysis16-ch

Perimeter Protection
Human/Vehicle Analysis
Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;

Up to 12 rules in total

Video and Audio
IP Video Input
16-ch

Up to 12 MP resolution
Incoming Bandwidth160 Mbps
Outgoing Bandwidth256 Mbps
HDMI 1 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output
HDMI 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output
VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,

HDMI1/VGA simultaneous output
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding
Decoding FormatH.265+/H.265/H.264+/H.264/MPEG4
Recording Resolution12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback16-ch
Decoding Capability16-ch @ 1080p (30 fps)
Dual-Stream RecordingSupport
Stream TypeVideo, Video & Audio
Live View Window Division1/2/4/6/8/9/16
Aux Port Window Division1/2/4/6/8/9/16
Playback ModeNormal/Smart, Event, Tag, Eternal File
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/MP2L2

Network
Remote Connection128
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE
Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power≤ 200 W
StandardIEEE 802.3 af/at

Auxiliary Interface
Serial InterfaceRS-485 (half-duplex), RS-232, Keyboard
SATA4 SATA interfaces supporting hot-plug
eSATA1 eSATA interface
CapacityUp to 10 TB capacity for each disk
Alarm In/Out16/4
USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

General
Power Supply
100 to 240 VAC, 50 to 60 Hz

Total power: ≤ 360 W
Consumption≤ 30 W (without HDD)
Working Temperature-10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
Working Humidity10% to 90%
Chassis19-inch rack-mounted 1.5U chassis
Dimension (W × D × H)445 × 400 ×75 mm ( 17.5″× 15.7″ × 3.0″)
Weight≤ 7 kg (15.4 lb) (without HDD)

Certification
FCCPart 15 Subpart B, ANSI C63.4-2014
CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
