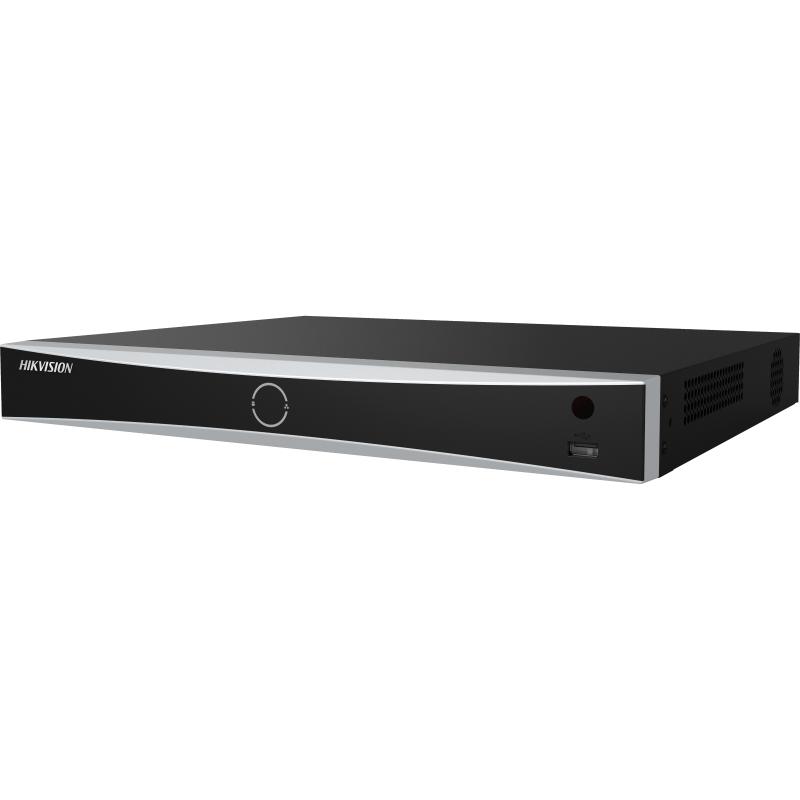

DS-7808NXI-I2/S

8-ch 1U AcuSense 4K NVR

  • H.265+/H.265/H.264+/H.264 video formats
  • Intelligent analytics based on deep learning algorithm
  • Up to 4-ch perimeter protection
  • Up to 1-ch facial recognition for video stream
  • Up to 4-ch facial recognition for face picture
  • Up to 8-ch IP camera inputs
  • Up to 16-ch 1080p decoding capability
  • specification

    • Facial Recognition
    • Face Picture LibraryUp to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB)
    • Face Picture Comparison4-ch face picture comparison alarm
    • Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
    • Facial Detection and Analytics Performance1-ch human face capture (HD network camera, up to 8 MP , H.264/H.265)
    • Motion Detection 2.0
    • Human/Vehicle Analysis8-ch
    • Perimeter Protection
    • Human/Vehicle AnalysisUp to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
    • Video and Audio
    • IP Video Input8
    • Incoming Bandwidth320 Mbps
    • Outgoing Bandwidth256 Mbps
    • HDMI 1 OutputHDMI1 output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output HDMI2 output:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output
    • VGA 1 Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
    • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
    • Audio Output1-ch, RCA (Linear, 1 KΩ)
    • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
    • Decoding
    • Decoding FormatH.265,H.265+,H.264,H.264+,MPEG4
    • Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
    • Playback ModeNormal/Smart, Event, Tag, Eternal File
    • Synchronous Playback8-ch
    • Live View Window Division1/4/6/8/9
    • Aux Port Window Division1/4/6/8/9
    • Decoding Capability16-ch @ 1080p (30 fps)
    • Audio CompressionG.711ulaw,G.711alaw,G.722,G.726,MP2L2
    • Network
    • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
    • Auxiliary Interface
    • SATA2 SATA interfaces
    • CapacityUp to 8 TB capacity for each disk
    • Serial InterfaceRS-485 (half-duplex), RS-232, Keyboard
    • Alarm In/Out4/1
    • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
    • General
    • Power Supply≤ 40 W
    • Consumption≤ 15W
    • Working Temperature-10℃~+55℃
    • Working Humidity10%~90%
    • Chassis1U
    • Dimension (W × D × H)385 × 315 ×52 mm ( 11.6″× 9.5″ × 1.6″)
    • Weight≤ 1.6 kg (3.5 lb)
