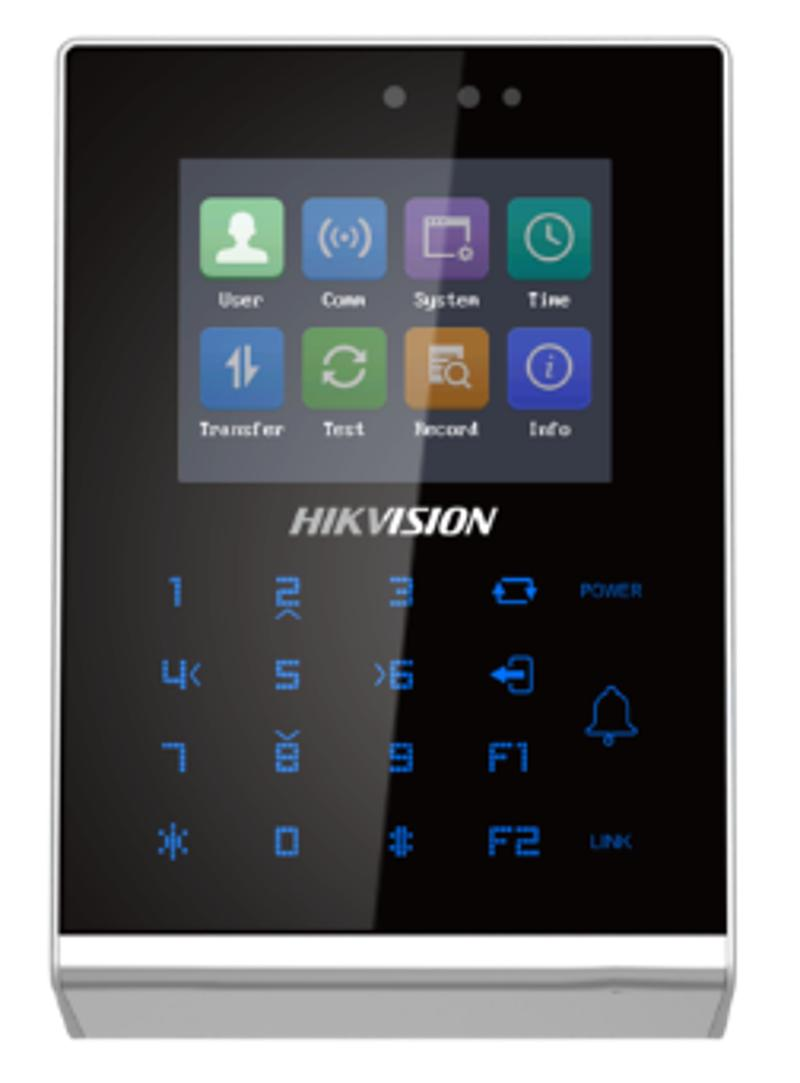

DS-K1T105AE

Pro Series Card Terminal

  • IP addresses conflicted alarm
  • Supports uploading real-time events
  • Gets offline events: Avoids events losing
  • Touch mode and blue light display technique for keypad
  • Stand-alone settings for the terminal
  • 2.8-inch LCD display screen to display the time, the date, etc.
  • Max. 100,000 valid card capacity, and Max. 300,000 access control events capacity
  • Communication via wired network (TCP/TP) and Wi-Fi
  • Supports ISUP5.0 protocol for public network communication
  • Supports multiple door opening modes (card, card + password, exit button, etc.)
  • Supports RS-485 and Wiegand (26/34) communication for connecting the external card reader
  • Applies authentications from the client to the device
  • Supports Wiegand (26/34) interface and RS-485 interface for accessing the controller
  • Supports EM card reading
  • Tampering detection, unlocking overtime alarm, invalid card swiping over times alarm, forced opening door alarm, and duress card alarm
  • Creates dismiss code for dismiss alarm
  • Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
  • Data can be permanently saved after power-off
    • Buy Now

    specification

    • Display
    • Screen size2.8-inch
    • TypeDisplay screen
    • Network
    • Wired network100 M/1000 M self-adaptive
    • Interface
    • Network interface1
    • Lock control1
    • Exit button1
    • Door contact input1
    • Alarm input2
    • Alarm output1
    • TAMPER1
    • RS-4851
    • Wiegand1
    • USB1
    • Authentication
    • Card typeEM card
    • Card reading frequency125 KHz
    • General
    • Power supply12 VDC/2 A
    • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
    • Working humidity10% to 90%
    • Dimensions137 mm x 142 mm x 35 mm (5.4″ × 5.6″ × 1.4″)
