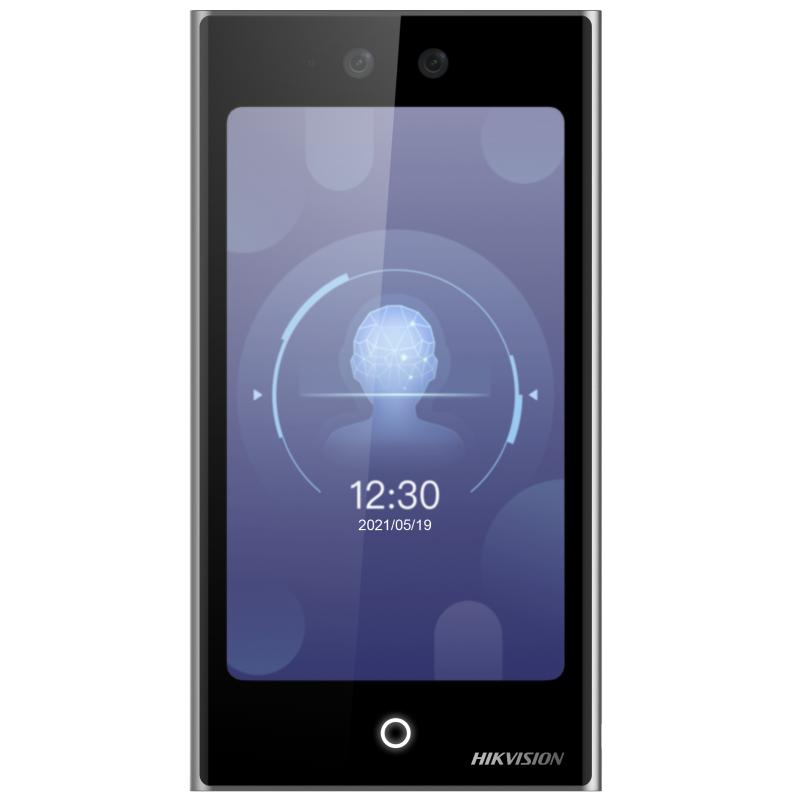

DS-K1T673TDWX

Ultra Series Face Access Terminal

7-inch LCD touch screen,2 Mega pixel wide-angle lens

Recognition distance: 0.3 to 3 m

Face recognition duration ＜ 0.2 s/User

Face recognition accuracy rate ≥ 99%

Built-in Mifare card, Felica card, and DESfire card reading module (Presents card on the screen to authenticate)

Face mask detection

100,000 face capacity, 10,000 fingerprint capacity (With fingerprint module), 500,000 card capacity, and 150,000 event capacity

Supports ISAPI, ISUP 5.0, TCP/IP (IPv4 and IPv6)

Supports single person and multiple people (Up to 5 people) recognition

specification

System
Operation systemLinux

Display
Size7-inch
TypeTouch screen

Video
FOVHFOV= 75.5°; VFOV= 41.5°; DFOV= 87°
Pixel2 MP
LensDual-lens
Video standardPAL (Default)/NTSC

Network
Wired networkSupport 10/100/1000 Mbps self-adaptive
Wi-FiSupport

Interface
Alarm input1
Alarm output1
USB1 (For Module)
Audio Output Interface1 (3.5 mm)
Network interface1
RS-4851
Wiegand1
Lock output1
Exit button1
Door contact input1
TAMPER1

Capacity
Card capacity500,000
Face capacity100,000
Event capacity150,000

Authentication
Face recognition accuracy rate≥ 99%
Card typeMifare 1 card, DESfire card, Felica card
Card reading distance0 to 3 cm
Card reading duration＜ 1 s
Face recognition duration＜ 0.2 s per person
Face recognition distance0.3 to 3 m

Function
Two-way audioSupport
Time synchronizationSupport
Face anti-spoofingSupport
Live viewSupport
Audio promptSupport

General
Power supply12 VDC to 24 VDC/2 A
Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
Working humidity0 to 90% (no condensing)
Protective levelIP65
Dimensions110.5 mm × 209.2 mm × 24 mm (4.35″ × 8.24″ × 0.94″)
LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean
Weight
Gross Weight：1.06 kg (2.34 lb)

Net Weight：0.57 kg (1.26 lb)
