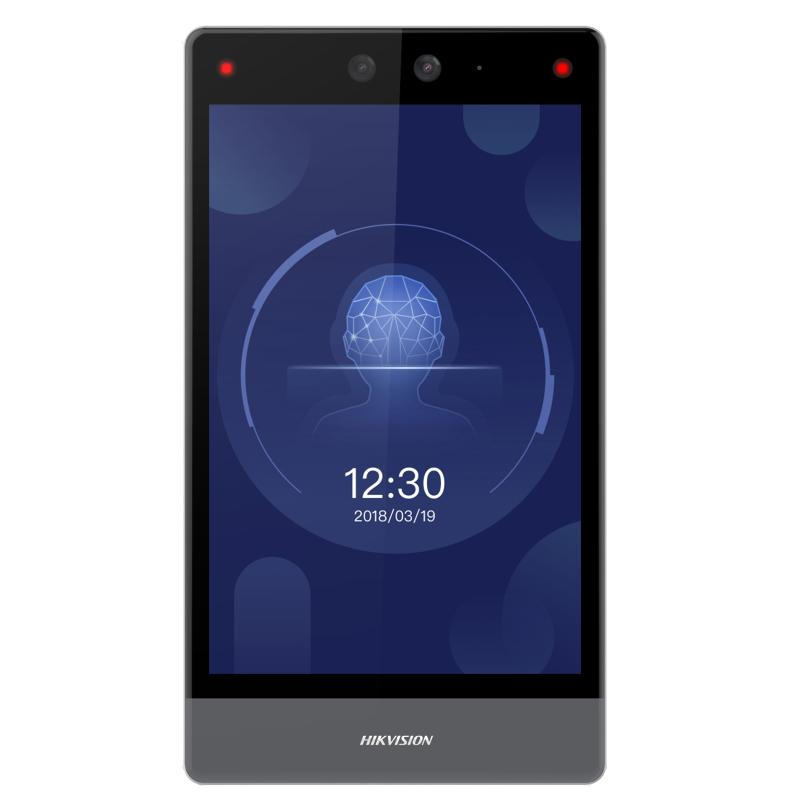

DS-K1T680D-E1

Ultra Series Wall-Mounted Face Access Terminal

8-inch touch screen with bezel-less design

Presents card on the screen to authenticate

Face recognition distance: 0.3 m to 3 m, duration ＜ 0.2 s/User, accuracy rate ≥ 99%

100,000 face capacity, 100,000 card capacity (Felica, DESfire, M1), and 150,000 event capacity

Supports ISAPI, ISUP 5.0, Wiegand, RS-485, TCP/IP, and PoE

Two-way audio with indoor station and main station

Configuration via the web client and mobile client

Customizes attendance status name

specification

System
Operating systemLinux

Display
Screen size8-inch
Operation methodCapacitive touch screen
Resolution1280 × 800

Video
Lens× 2
Resolution2 MP
FOVHFOV= 88°；VFOV= 44°；DFOV=108°
Video standardPAL (Default) and NTSC

Network
Wired network10 M/100 M/1000 M self-adaptive

Interface
Network interface1
Lock control1
Exit button1
Door contact input1
Alarm input2
Alarm output1
TAMPER1
RS-4851
Wiegand1
USB1

Capacity
Face capacity100000
Card capacity100000
Event capacity150000

Authentication
Face recognition distance0.3 to 3 m
Face recognition accuracy rate≥99%
Face recognition duration＜ 0.2 s
Card type;DESfire card;Felica card

Function
LanguageEnglish, Thai, Brazilian Portuguese, Russian, Spanish, Arabic, Japanese, Ukrainian, and Indonesian
Face anti-spoofingSupport
Hik-ConnectSupport

General
Power supply12 to 24 VDC, 3 A, Standard PoE
Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
Working humidity0 to 90% (No condensing)
Protective levelIP65
Dimensions127.3 mm × 232.1 mm × 23.5 mm (5.0” × 9.1” × 0.9” )
Power supply method12 VDC/24 VDC Power Adapter
