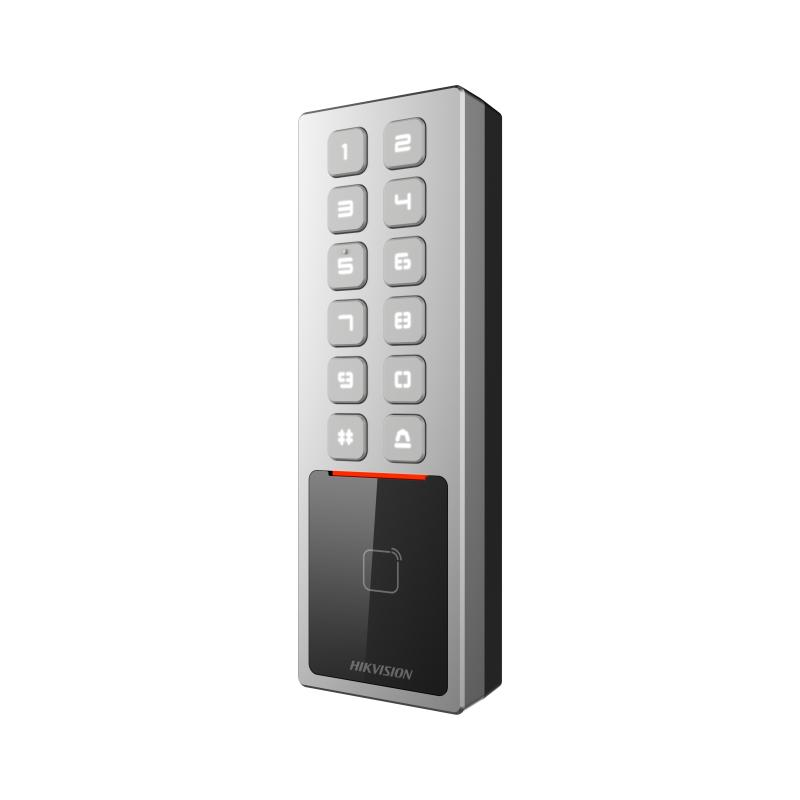

DS-K1T805MBWX

Access Control Terminal

High protective level: IP65 and IK08

Slim and flexible design with metal

10,000 cards and 100,000 events storage

Built-in card reader for M1 card

Supports operation by mobile App (Hik-Connect)

Supports AP configuration, configuration via PC web and mobile web are available

Supports multiple authentication types: card, PIN, and bluetooth

specification

System
Operating systemLinux

Audio
Audio output1 built-in buzzer

Network
BluetoothSupport
Wired network10/100 Mbps self-adaptive
Wi-Fi2.4 GHz, IEEE802.11b, 802.11g, 802.11n, 802.11d, 802.11e, 802.11h, 802.11i

Interface
RS-4851, supports OSDP
Network interface1
WiegandWiegand 26/34
Lock control1
Exit button1
Door contact input1
Alarm input2
Alarm output1
TAMPER1

Capacity
Card capacity10,000
Event capacity100,000

Authentication
Card typeM1 card
Card reading distance0 to 4 cm
Card reading duration＜ 1 s

Function
Hik-ConnectSupport
Configuration via Web BrowserSupport PC web configuration and mobile web operation

General
Power supply12 VDC/1 A
Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
Working humidity0% to 90% (no condensing)
Dimensions57.7 mm × 177 mm × 34.6 mm (2.3″ × 7.0″ × 1.4″)
Power consumption≤ 12 W
LanguageEnglish, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, Ukrainian, and Russian
