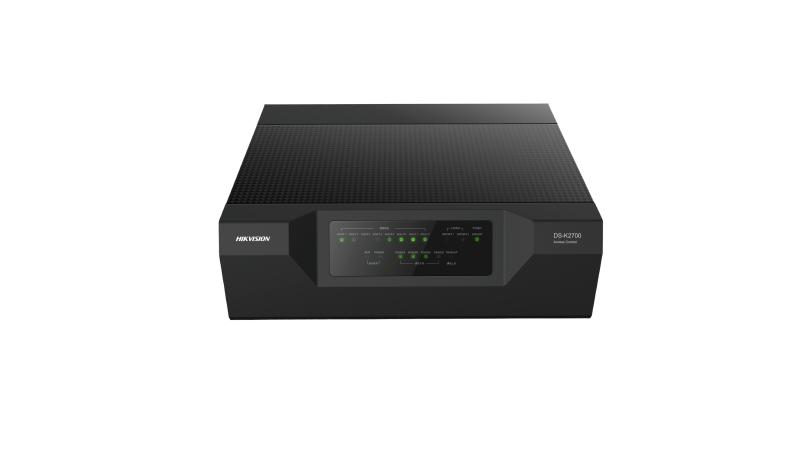

DS-K2700

Ultral Series Structured Access Master Controller

Master Access Controller

200,000 cards and 600,000 events storage

Up to 64 distributed access controllers can be connected

Up to 128 doors can be controlled

Alarm input/output and alarm event upload

RS-485 and TCP/IP for communication

European AC power cable included (please mark for other standards when you order)

specification

System Parameters
Door AmountMax. 64 Distributed Access Controller, Max. 128 Doors
Capacity for Card/Offline EventsCard: 200,000 Event: 600,000
Holiday Schedule1024
Holiday Group255
Week Plan255
Template255
Fire-Fighting Linkage1 Interface for Fire-Fighting Detection
Special FunctionAnti-passing back, Multiple Authentication, Multi-Door Interlocking
Response Time≤ 1s

Device Interface
Uplink CommunicationTCP/IP Communication (Dual Network Interfaces) RS-485 Communication (RS-485 Interfaces)
Downlink CommunicationRS-485 Communication (4 RS-485 Loops) TCP/IP Communication (1 10M/100M Network Interfaces)
Alarm Iutput16
Alarm Output8
USB Interface1 USB Interface for the Device Upgrade and Date Importing/Exporting

General
Working Temperature-20°C to +70°C (-4°F to 158°F)
StructureWall Mounting with 19-in 3U Standard Cabinet
Ingress Protection LevelIndoor: IP 54
BatterySupported
Zone Disconnected AlarmSupported
Zone Short Circuited AlarmSupported
Tamper-Proof AlarmSupported
