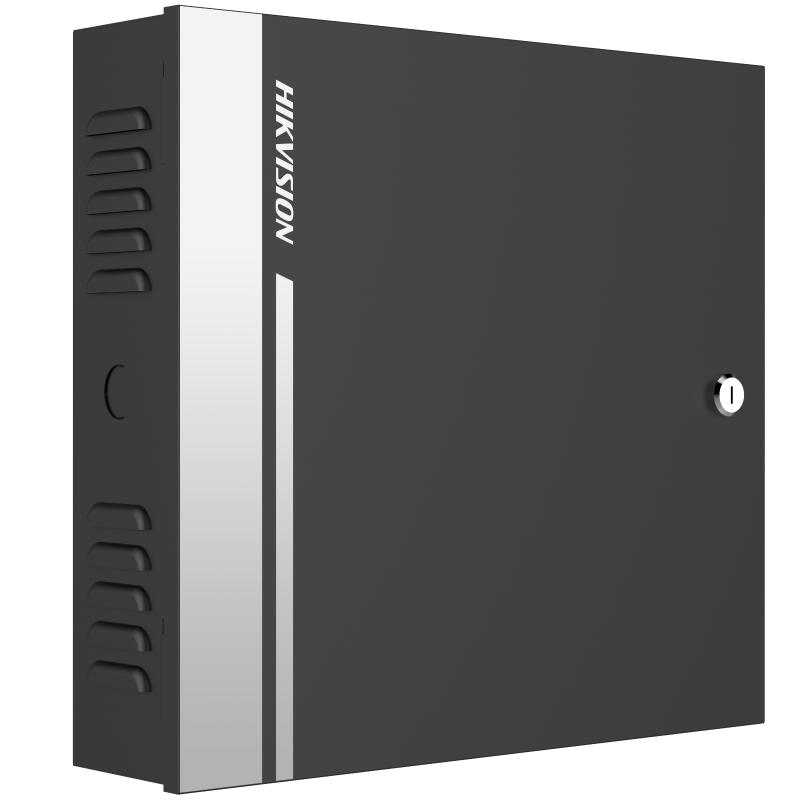

DS-K2812

Access Controller

Supports two doors access control

Supports multi-door interlocking function, anti-passback function, multi-card function, first person function, super card and super password function

Supports alarm event upload

Supports RS-485 interface and Wiegand interface for accessing card reader. Wiegand interface supports W26/W34 and is seamlessly compatible with third-party card reader with Wiegand interface

Supports standby battery

Data can be saved when the access controller is powered off

specification

Network
Wired network10 M/100 M self adaptive

Interface
Network interface1
Lock control2
Exit button2
Door contact input2
Alarm input2
Alarm output4
TAMPER1
RS-4851
Wiegand4， Wiegand 26/34

Capacity
Card capacity10,000
Event capacity50,000

General
Power supply100 to 240 VAC
BatteryBackup battery connection available
Power consumption
With load: ≤ 100 w

Without load: ≤ 4 w
Working temperature-20 °C to 65 °C (-4 °F to 149 °F)
Working humidity10% to 90% (no condensing)
Dimensions370 mm × 345 mm × 90 mm (14.6″ × 13.6″ × 3.5″)
