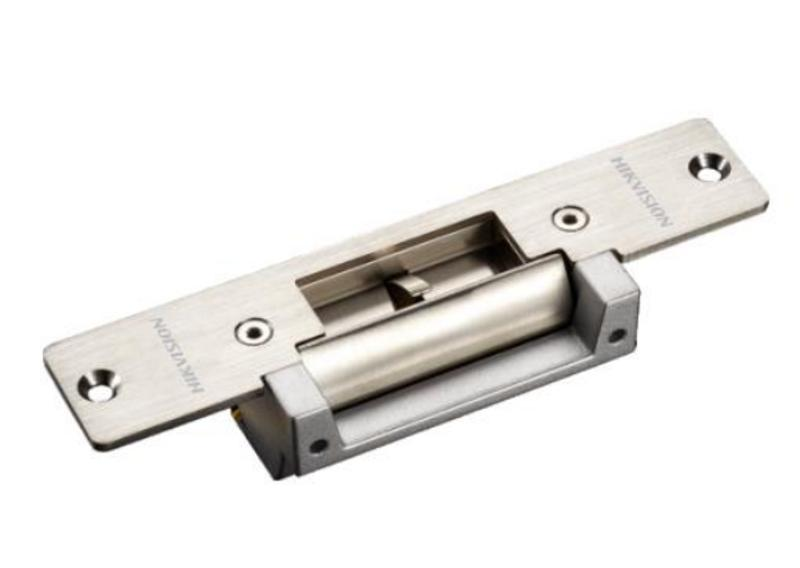

DS-K4G100

Electric Strike Lock

Fail-secure and fail-safe selectable

Material of latch: US304 stainless steel | Material of plate: wire-drawing on the surface

The magnetic lock supports static linear thrust of 800 kg (1764 lb)

100,000 times usage of the electromagnetic coil when powering on

Depth of the latch groove: 15 mm

Strong suction which protects the door from forced opening when the door is locked

Double insulation

specification

General
Maximum Thrust800 kg (1764 lb)
Input Voltage12 VDC, 320 mA/24 VDC, 160 mA ± 15%
Signal Output
Dry contact signal output; NO output while locking and NC output while

unlocking
Suitable DoorWooden door, metal door, PVC door
Working temperature-10 °C to 55 °C (14 °F to 131 °F)
Working humidity0 to 95% (non-condensing)
Weight0.4 kg (0.9 lb)
Material of latchStainless steel
Dimension of lock body (L × W × H)165 mm × 43.7 mm × 35 mm (6.5″ × 1.7″ × 1.4″)
